Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

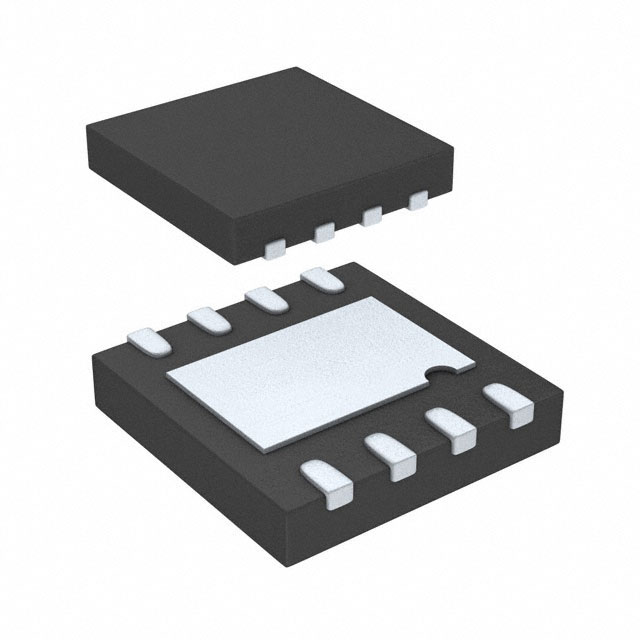

XRP2527IHBTR-1-FIC PWR SWITCH 1:1 8TDFN |
7,526 |
|
Datasheet |
8-WDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | - | On/Off | 1.8V ~ 5.5V | Not Required | 1A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (3x3) |
|
XRP2528IHBTR-1-FIC PWR SWITCH 1:2 10TDFN |
9,504 |
|
Datasheet |
10-WFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | USB Switch | 2 | 1:2 | High Side | - | On/Off | 1.8V ~ 5.5V | Not Required | 1A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
XRP2527IHBMTR-1-FIC PWR SWITCH 1:1 8TDFN |
6,940 |
|
Datasheet |
8-WDFN Exposed Pad | - | Tape & Reel (TR) | Discontinued at Digi-Key | USB Switch | 1 | 1:1 | High Side | - | On/Off | 1.8V ~ 5.5V | Not Required | 1A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (3x3) |
|
ABP2820CMM-G1IC PWR DIST SWITCH 8MSOP |
4,194 |
|
- |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-MSOP |
|
|
ABP2820GMM-G1IC PWR DIST SWITCH 8MSOP |
6,154 |
|
- |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-MSOP |
|
|
AP2805AMM-G1IC PWR SWITCH N-CHAN 1:1 8MSOP |
8,184 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tube | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 60mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
AP2805DM-G1IC PWR SWITCH N-CHAN 1:1 8SOIC |
4,460 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 60mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
AP2810AM-G1IC PWR SWITCH N-CHAN 1:1 8SOIC |
3,746 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 60mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
AP2810CMM-G1IC PWR SWITCH N-CHAN 1:1 8MSOP |
3,352 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tube | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 60mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
AP2810DM-G1IC PWR SWITCH N-CHAN 1:1 8SOIC |
3,526 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 60mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
AP2815AM-G1IC PWR SWITCH N-CHAN 1:1 8SOIC |
5,574 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 60mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
AP2815AMM-G1IC PWR SWITCH N-CHAN 1:1 8MSOP |
7,292 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tube | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 60mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
AP2815BM-G1IC PWR SWITCH N-CHAN 1:1 8SOIC |
9,736 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 60mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
AP2815BMM-G1IC PWR SWITCH N-CHAN 1:1 8MSOP |
8,808 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tube | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 60mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
AP2815BMMTR-G1IC PWR SWITCH N-CHAN 1:1 8MSOP |
4,834 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 60mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
AP2815BMTR-G1IC PWR SWITCH N-CHAN 1:1 8SOIC |
3,744 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 60mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
AP2815CM-G1IC PWR SWITCH N-CHAN 1:1 8SOIC |
2,224 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 60mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
AP2815CMM-G1IC PWR SWITCH N-CHAN 1:1 8MSOP |
5,884 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tube | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 60mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
AP2815DM-G1IC PWR SWITCH N-CHAN 1:1 8SOIC |
4,752 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 60mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
AP2815DMM-G1IC PWR SWITCH N-CHAN 1:1 8MSOP |
4,112 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tube | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 60mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
