Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VND5160JTR-65-EIC PWR DRVR N-CHAN 1:1 PWRSSO12 |
2,300 |
|
- |
PowerSSO-12 | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 36V | Not Required | 3.5A | 160mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12™ |
|
VND5N07-1IC PWR DRIVER N-CHANNEL 1:1 IPAK |
4,748 |
|
Datasheet |
TO-251-3 Short Leads, IPAK, TO-251AA | OMNIFET II™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 55V (Max) | Not Required | 3.5A | 200mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
__2.jpg)
|
VND7N04IC PWR DRIVER N-CHANNEL 1:1 DPAK |
6,842 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | OMNIFET II™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 31V (Max) | Not Required | 4A | 140mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
VND7N04-1IC PWR DRIVER N-CHANNEL 1:1 IPAK |
9,966 |
|
Datasheet |
TO-251-3 Short Leads, IPAK, TO-251AA | OMNIFET II™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 31V (Max) | Not Required | 4A | 140mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
VND7NV04-1IC PWR DRIVER N-CHANNEL 1:1 IPAK |
3,306 |
|
Datasheet |
TO-251-3 Short Leads, IPAK, TO-251AA | OMNIFET II™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 6A | 60mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
|
VND7NV0413TRIC PWR DRIVER N-CHANNEL 1:1 DPAK |
8,630 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | OMNIFET II™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 6A | 60mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
VNP49N04-EIC PWR DRIVER N-CHAN 1:1 TO220AB |
7,234 |
|
Datasheet |
TO-220-3 | OMNIFET™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 30A | 20mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Through Hole | TO-220 |
|
VNQ05XSP1613TRIC PWR DRIVER N-CHAN 1:1 PWRSO16 |
8,278 |
|
Datasheet |
16-PowerBSOP (0.370", 9.40mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 5A | 110mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSO-16™ |
|
VNV10N07IC PWR DRIVER N-CHAN 1:1 PWRSO10 |
9,690 |
|
Datasheet |
PowerSO-10 Exposed Bottom Pad | OMNIFET™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 55V (Max) | Not Required | 14A | 100mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | 10-PowerSO |
|
|
VNV20N07IC PWR DRIVER N-CHAN 1:1 PWRSO10 |
5,616 |
|
Datasheet |
PowerSO-10 Exposed Bottom Pad | OMNIFET™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 55V (Max) | Not Required | 14A | 50mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | 10-PowerSO |
|
|
VNV35NV04IC PWR DRIVER N-CHAN 1:1 PWRSO10 |
5,014 |
|
Datasheet |
PowerSO-10 Exposed Bottom Pad | OMNIFET II™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 30A | 10mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VNV35NV0413TRIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
6,220 |
|
Datasheet |
PowerSO-10 Exposed Bottom Pad | OMNIFET II™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 30A | 10mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VNV49N04IC PWR DRIVER N-CHAN 1:1 PWRSO10 |
6,062 |
|
Datasheet |
PowerSO-10 Exposed Bottom Pad | OMNIFET™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 33V (Max) | Not Required | 28A | 40mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
FPF2193IC PWR SWITCH P-CHAN 1:1 6WLCSP |
9,648 |
|
Datasheet |
6-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 1.5A | 55mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLCSP (0.96x1.66) |
|
DS1640+IC PWR DRIVER P-CHAN 1:1 16DIP |
4,052 |
|
Datasheet |
16-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Latched Driver | 4 | 1:1 | High Side | P-Channel | On/Off | 3V ~ 5.5V | 4.5V ~ 5.5V | 300mA | 67mOhm | Non-Inverting | - | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
MAX4821ETP+TIC PWR DRIVER N-CHAN 1:8 20TQFN |
5,324 |
|
Datasheet |
20-WFQFN Exposed Pad | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | Parallel | 2.3V ~ 5.5V | - | 70mA | 2Ohm | - | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-TQFN (4x4) |
|
|
MAX4825ETP+TIC PWR DRIVER N-CHAN 1:8 20TQFN |
4,460 |
|
Datasheet |
20-WFQFN Exposed Pad | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | Parallel | 2.3V ~ 5.5V | Not Required | 70mA | 2.7Ohm | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TQFN (4x4) |
|
A6810EA-TIC PWR DRVR BIPOLAR 1:10 18DIP |
4,326 |
|
Datasheet |
18-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Latched Driver | 10 | 1:10 | High Side | Bipolar | Strobe, Serial | 60V (Max) | 3V ~ 5.5V | 40mA | - | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 18-DIP |
|

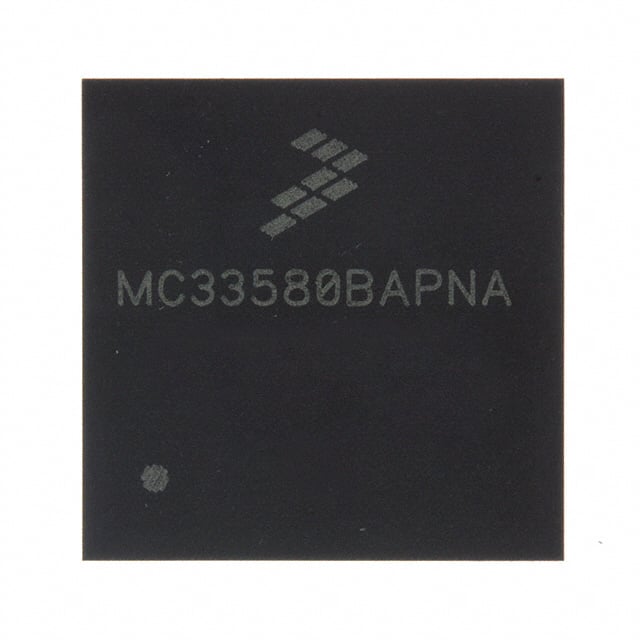

MC33580BAPNAIC PWR SWITCH N-CHAN 1:1 24PQFN |
6,258 |
|
Datasheet |
24-PowerQFN | - | Tray | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 6V ~ 27V | 4.5V ~ 5.5V | - | 15mOhm | - | Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|
|
MC33874BPNAIC PWR SWITCH N-CHAN 1:1 24PQFN |
8,308 |
|
Datasheet |
24-PowerQFN | - | Tray | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 6V ~ 27V | 4.5V ~ 5.5V | - | 35mOhm | - | Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
