Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VN5E050MJ-EIC PWR SWTCH N-CHAN 1:1 PWRSSO12 |
4,528 |
|
Datasheet |
PowerSSO-12 | VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 19A | 50mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12™ |
|
FPF1007IC PWR SWITCH P-CH 1:1 6MICROFET |
3,364 |
|
Datasheet |
6-WDFN Exposed Pad | IntelliMAX™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.2V ~ 5.5V | Not Required | 1.5A | 30mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
TPS2062ADRBTG4IC PWR SWITCH N-CHAN 1:2 8SON |
9,232 |
|
Datasheet |
8-VDFN Exposed Pad | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 2 | 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 70mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SON (3x3) |
|
BUK139-50DL/C1,118IC PWR DRIVER N-CHANNEL 1:1 DPAK |
2,072 |
|
- |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 16A | 36mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
MP62160DH-LF-PIC PWR SWITCH 1:1 8MSOP |
4,662 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Not For New Designs | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 85mOhm | - | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP-EP |
|
MP5017GD-PIC PWR SWITCH N-CHAN 1:1 12QFN |
7,096 |
|
Datasheet |
12-VFQFN Exposed Pad | - | Tape & Reel (TR) | Not For New Designs | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 5A | 45mOhm | - | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-QFN (2x3) |
|
MP5016GQH-PIC PWR SWITCH N-CHAN 1:1 10QFN |
3,492 |
|
Datasheet |
10-PowerVFQFN | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 15V | 2.7V ~ 15V | 5A | 43mOhm | - | Slew Rate Controlled | Over Current, Over Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-QFN (1.5x2) |
|
MP5030GQH-PUSB CHARGING PORT CONTROLLER WIT |
2,178 |
|
Datasheet |
10-VFQFN | MP | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | - | 3.6V ~ 14V | 3.6V | - | 32mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Short Circuit, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-QFN (1.5x2) |
|
|
MP5016GQH-L-P2.7-15V,0.7-5A,CURRENT LIMIT SWI |
6,416 |
|
Datasheet |
10-PowerVFQFN | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 15V | 2.7V ~ 15V | 5A | 43mOhm | Non-Inverting | Load Discharge | Current Limiting (Fixed), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-QFN (1.5x2) |
|
|
SLG5NV1766VAN ULTRA-SMALL 4 M? 5 A INTEGRAT |
7,542 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VN750SM-EIC PWR DRIVER N-CHANNEL 1:1 8SO |
8,466 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 6A | 55mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
STEL12H24PURDISCRETE |
9,704 |
|
- |
12-VFDFN Exposed Pad | - | Bulk | Active | General Purpose | 1 | 1:1 | - | N-Channel | Logic | 0.5V ~ 13.5V | 3V ~ 13.5V | 17A | 4.5mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Short Circuit, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-DFN (3x3) |
|
|
MP62341DS-LF-P3.3V/5V,DUAL-CHANNEL 1A CURRENT- |
5,124 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | MP | Tape & Reel (TR) | Active | General Purpose | 2 | 1:2 | High Side | N/P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MP62340DS-LF-P3.3V/5V,DUAL-CHANNEL 1A CURRENT- |
2,512 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | MP | Tape & Reel (TR) | Active | General Purpose | 2 | 1:2 | High Side | N/P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
MIC2008YM6IC PWR SWITCH P-CHAN 1:1 SOT23-6 |
3,184 |
|
Datasheet |
SOT-23-6 | - | Bulk | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 2A | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
NCP433FCT2GIC PWR SWITCH P-CHAN 1:1 4WLCSP |
6,384 |
|
Datasheet |
4-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1V ~ 3.6V | Not Required | 1.5A | 35mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.76x0.76) |
|
TPS2056ADRG4IC PWR SWITCH N-CHAN 1:2 8SOIC |
4,372 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 2 | 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 250mA | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | 0°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|

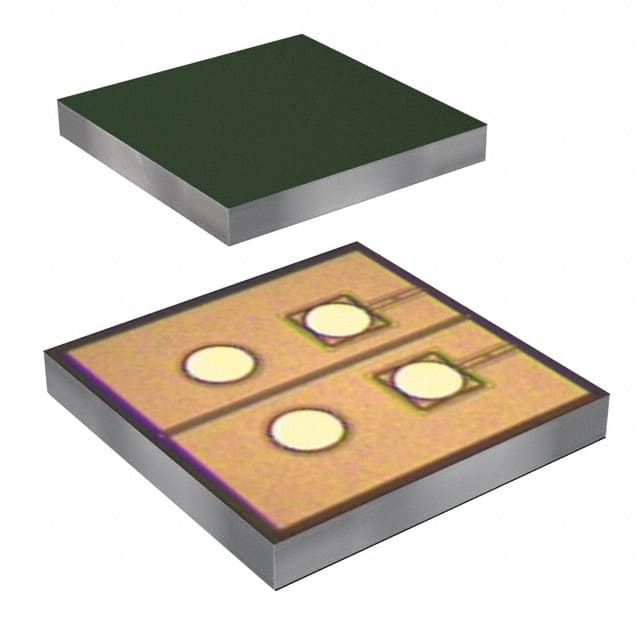

FC4B22180L1IC PWR DRIVER N-CHANNEL 1:1 4SMD |
8,946 |
|
Datasheet |
4-SMD, No Lead | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 20V (Max) | Not Required | 5A | 9.4mOhm | - | - | - | - | - | - | Surface Mount | 4-SMD |
|
MIC2548-1YM-TRIC PWR SWITCH N-CHAN 1:1 8SOIC |
8,710 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MIC2548-2YM-TRIC PWR SWITCH N-CHAN 1:1 8SOIC |
4,438 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
