Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP6232DH-LF-ZIC PWR SWITCH 1:2 8MSOP |
4,898 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Not For New Designs | General Purpose | 2 | 1:2 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 85mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP-EP |
|
|
MP62340DH-LF-ZIC PWR SWITCH 1:2 8MSOP |
7,220 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Not For New Designs | General Purpose | 2 | 1:2 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 85mOhm | - | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP-EP |
|
ULN2803ADWTRANS 8NPN DARL 50V 0.5A 18SOIC |
3,402 |
|
Datasheet |
18-SOIC (0.295", 7.50mm Width) | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-SOIC |
|
|
ULN2803ADWG4TRANS 8NPN DARL 50V 0.5A 18SO |
9,352 |
|
Datasheet |
18-SOIC (0.295", 7.50mm Width) | - | Tube | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-SOIC |
|
FDC6325LIC PWR SWITCH P-CH 1:1 SUPERSOT6 |
2,558 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 8V | 1.5V ~ 8V | 1.8A | 115mOhm | Non-Inverting | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SuperSOT™-6 |
|
MIC94072YMT-TRIC PWR SWITCH P-CHAN 1:1 4TMLF |
6,738 |
|
Datasheet |
4-UFDFN Exposed Pad, 4-TMLF® | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.7V ~ 5.5V | Not Required | 1.2A | 100mOhm | Non-Inverting | Slew Rate Controlled | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-TMLF® (1.2x1.6) |
|
DML3011LFDS-7MOSFET BVDSS: 25V~30V V-DFN2020- |
8,010 |
|
- |
8-PowerVFDFN | - | Bulk | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.5V ~ 20V | 3V ~ 5.5V | 10.5A | 7.5mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | V-DFN2020-8 (Type N) |
|
|
DML3010LFDS-7MOSFET BVDSS: 25V~30V V-DFN2020- |
9,844 |
|
- |
8-PowerVFDFN | - | Bulk | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.5V ~ 20V | 3V ~ 5.5V | - | 10mOhm | Non-Inverting | Load Discharge, Power Good | Over Temperature, Short Circuit, UVLO | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | V-DFN2020-8 (Type N) |
|
VNS1NV04DP-EIC PWR DRIVER N-CHANNEL 1:1 8SO |
7,186 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | OMNIFET II™, VIPower™ | Tube | Obsolete | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 1.7A | 250mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
VNN7NV04TR-EIC PWR DRIVER N-CHAN 1:1 SOT223 |
4,398 |
|
Datasheet |
TO-261-4, TO-261AA | OMNIFET II™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 6A | 60mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
ULN2003AIDRG4IC PWR RELAY 7NPN 1:1 16SOIC |
6,436 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | ULx200xA | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 7 | 1:1 | Low Side | Darlington | Parallel | 50V (Max) | Not Required | 500mA | - | Inverting | - | - | -40°C ~ 105°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MIC2033-05AYMT-TRIC PWR SWITCH P-CHAN 1:1 6TDFN |
8,986 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 500mA | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TDFN (2x2) |
|
|
MIC2033-05BYMT-TRIC PWR SWITCH P-CHAN 1:1 6TDFN |
7,624 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 500mA | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TDFN (2x2) |
|
|
MIC2033-08AYMT-TRIC PWR SWITCH P-CHAN 1:1 6TDFN |
9,164 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 800mA | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TDFN (2x2) |
|
|
MIC2033-08BYMT-TRIC PWR SWITCH P-CHAN 1:1 6TDFN |
4,952 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 800mA | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TDFN (2x2) |
|
|
MIC2033-10AYMT-TRIC PWR SWITCH P-CHAN 1:1 6TDFN |
3,266 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1A | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TDFN (2x2) |
|
|
MIC2033-10BYMT-TRIC PWR SWITCH P-CHAN 1:1 6TDFN |
7,476 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1A | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TDFN (2x2) |
|
|
MIC2033-12AYMT-TRIC PWR SWITCH P-CHAN 1:1 6TDFN |
9,582 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1.2A | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TDFN (2x2) |
|
|
MIC2033-12BYMT-TRIC PWR SWITCH P-CHAN 1:1 6TDFN |
7,482 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1.2A | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TDFN (2x2) |
|

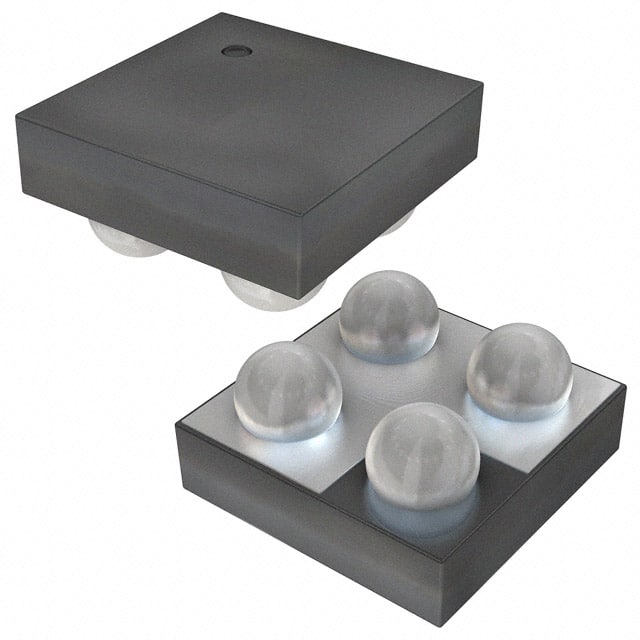

SIP32468DB-T2-GE1IC PWR SWITCH N-CHAN 1:1 4WLCSP |
6,668 |
|
Datasheet |
4-UFBGA, WLCSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.2V ~ 5.5V | Not Required | 1.2A | 50mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.76x0.76) |
