Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM34904ITMX/NOPBIC PWR SWITCH N-CHAN 1:1 6DSBGA |
6,028 |
|
Datasheet |
6-WFBGA, DSBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.8V ~ 5.3V | Not Required | 500mA | 400mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA |
|
ULN2003AIPWRIC PWR RELAY 7NPN 1:1 16TSSOP |
8,000 |
|
Datasheet |
16-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-TSSOP |
|
|
ULN2003APWRTRAN 7NPN DARL 50V 0.5A 16TSSOP |
8,000 |
|
Datasheet |
16-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-TSSOP |
|
GLF1200Nano Current Power Load Switch |
30,000 |
|
Datasheet |
SC-74A, SOT-753 | IQSmart™ | Tape & Reel (TR) | Active | Load Switch | - | - | - | P-Channel | - | - | 1.5V ~ 5.5V | 2A | 54mOhm | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
MIC2548-2BMPROGRAMMABLE HIGH-SIDE SWITCH |
432,020 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Bulk | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
TPS2041BDIC PWR SWITCH N-CHAN 1:1 8SOIC |
26,156 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Bulk | Last Time Buy | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 70mOhm | Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
FSDH0165HSWITCHING REGULATOR |
30,000 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MIC2566-0YMPC CARD/CARDBUS POWER CONTRLR |
5,618 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | PCMCIA Switch | 2 | 1:1 | Low Side | N-Channel | Logic | 3.3V, 5V | Not Required ~ 5.5V | 120mA | 1.4Ohm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOP |
|
TPS2061CDGNRIC PWR SWITCH N-CHAN 1:1 8MSOP |
3,238 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 1A | 86mOhm | Inverting | Output Discharge | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-HVSSOP |
|
STMPS2262MTRIC PWR SWITCH 1:2 8SO |
2,556 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:2 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 105mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
GLF71311NANO-CURRENT CONSUMED PWR SWITCH |
34,080 |
|
Datasheet |
4-UFBGA, WLCSP | IQSmart™ | Tape & Reel (TR) | Active | Load Switch | - | - | High Side | - | - | - | 1.1V ~ 5.5V | 2A | 31mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | 4-WLCSP (0.97x0.97) |
|
MIC2027-1BMQUAD USB PWR DISTRIBUTION SWITCH |
212,634 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | - | Bulk | Obsolete | USB Switch | 4 | 2 x 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 100mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MIC2027-2BMQUAD USB PWR DISTRIBUTION SWITCH |
68,876 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | - | Bulk | Obsolete | USB Switch | 4 | 2 x 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 100mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TPS2051BDBVRG4IC PWR SWITCH N-CHAN 1:1 SOT23-5 |
4,776 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 95mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
NCP382LD10AAR2GIC PWR SWITCH P-CHAN 1:2 8SOIC |
4,112 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:2 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1A | 80mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|

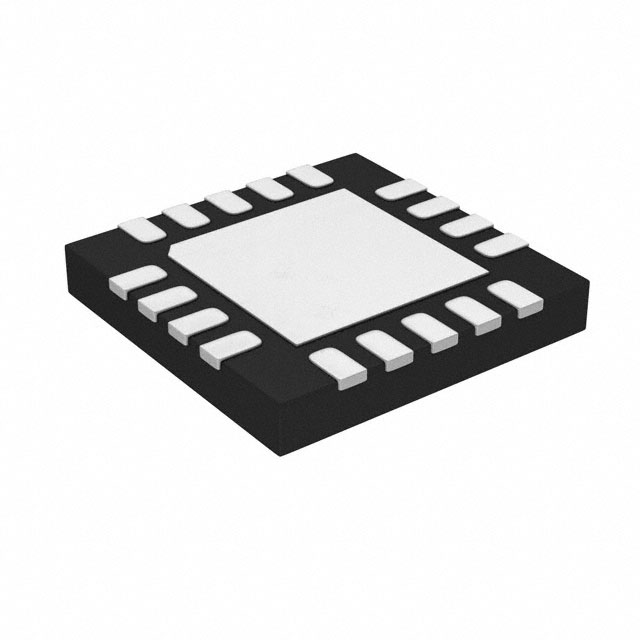

NCP4543IMN5RG-AIC PWR SWITCH N-CHAN 1:1 18QFN |
8,842 |
|
Datasheet |
18-VFQFN Exposed Pad | ecoSWITCH™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 7.3A | 10.5mOhm | Non-Inverting | Slew Rate Controlled | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 18-QFN (3x3) |
|
|
SLG5NT1765VAN ULTRA-SMALL 1.6 MM2 17 M? 2.5 |
3,548 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TPS2000CDGKRIC PWR SWITCH N-CHAN 1:1 8VSSOP |
5,874 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 2A | 72mOhm | Inverting | Output Discharge | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
TPS22993PRLWRIC PWR SWITCH N-CHAN 1:1 20WQFN |
8,848 |
|
Datasheet |
20-WFQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | I2C | 1V ~ 3.6V | - | 1.2A | 15mOhm | - | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-WQFN (3x3) |
|
MIC2562A-1BMCARDBUS SOCKET POWER CONTROLLER |
2,980 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | PCMCIA Switch | 2 | 3:2 | Low Side | N-Channel | Logic | 3.3V, 5V, 12V | Not Required | 200mA | 70mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
