Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FPF2007_AAB3086BFULL FUNCTION LOAD SWITCHES |
551,496 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

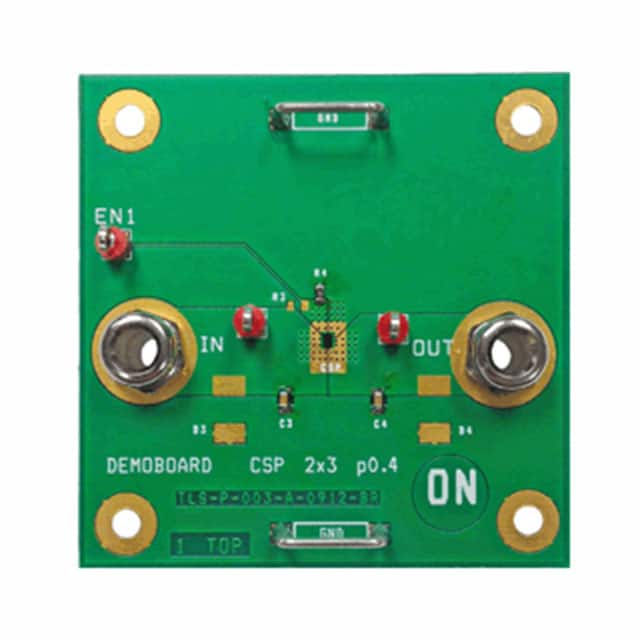

NCP338FCCT2GIC PWR SWITCH P-CHAN 1:1 6WLCSP |
2,428 |
|
Datasheet |
6-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1V ~ 3.6V | Not Required | 2A | 16mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WLCSP (.8x1.2) |
|
|
FPF1204LUCXINTELLIMAX ULTRA-SMALL, SLEW-RAT |
81,074 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MIC94060YMLHIGH-SIDE POWER SWITCH |
61,366 |
|
Datasheet |
4-UFDFN Exposed Pad, 4-TMLF® | - | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.7V ~ 5.5V | Not Required | 2A | 85mOhm | Non-Inverting | Slew Rate Controlled | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-TMLF® (1.2x1.6) |
|
FPF2143BUFFER/INVERTER PERIPHL DRIVER |
34,022 |
|
Datasheet |
6-VDFN Exposed Pad | - | Bulk | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 200mA | 120mOhm | Non-Inverting | Power Good, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
FPF1204BUCXINTELLIMAX ULTRA-SMALL, SLEW-RAT |
21,280 |
|
Datasheet |
4-UFBGA, WLCSP | IntelliMAX™ | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.2V ~ 5.5V | Not Required | 2.2A | 55mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C | - | - | Surface Mount | 4-WLCSP (0.8x0.8) |
|
FPF2147BUFFER/INVERTER BASED PERIPHERAL |
20,820 |
|
Datasheet |
6-VDFN Exposed Pad | - | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 400mA | 120mOhm | Non-Inverting | Power Good, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
|
FPF2146BUFFER/INVERTER PERIPHL DRIVER |
8,030 |
|
Datasheet |
6-VDFN Exposed Pad | - | Bulk | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 400mA | 120mOhm | Non-Inverting | Power Good, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
FPF2281BUCXOVER VOLTAGE LOAD SWITCH |
5,606 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BTS5233-2GSPMIC - POWER DISTRIBUTION SWITCH |
5,000 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FPF2143IC PWR SWITCH P-CH 1:1 6MICROFET |
5,748 |
|
Datasheet |
6-WDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 200mA | 120mOhm | Non-Inverting | Power Good, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
FDG6324LBUFFER/INVERTER BASED PERIPHERAL |
122,966 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 3V ~ 20V | Not Required | 600mA | 370mOhm | Non-Inverting | Slew Rate Controlled | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
NCP458RFCT2GIC PWR SWITCH N-CHAN 1:1 8WLCSP |
3,458 |
|
Datasheet |
8-WFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.75V ~ 5.5V | Not Required | 4.5A | 11mOhm | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-WLCSP (2x1) |
|
MIC2005M-0.5M6FIXED AND ADJUSTABLE CURRENT LIM |
3,484 |
|
Datasheet |
SOT-23-6 | - | Bulk | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 2.1A | 70mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
MIC94061BC6TRHIGH-SIDE POWER SWITCH |
3,032 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.7V ~ 5.5V | Not Required | 2A | 77mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
NCP432FCT2GIC PWR SWITCH P-CHAN 1:1 4WLCSP |
6,046 |
|
Datasheet |
4-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1V ~ 3.6V | Not Required | 1.5A | 35mOhm | Non-Inverting | Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.76x0.76) |
|
FTL75939UCXPROGRAMMABLE TIMER, CMOS, PBGA12 |
301,974 |
|
Datasheet |
12-UFBGA, WLCSP | - | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.2V ~ 5.5V | Not Required | 4.5A | 21mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-WLCSP (1.6x1.3) |
|
|
FPF12045UCXINTELLIMAX ULTRA-SMALL, SLEW-RAT |
271,780 |
|
Datasheet |
4-UFBGA, WLCSP | IntelliMAX™ | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.2V ~ 5.5V | Not Required | 2.2A | 55mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C | - | - | Surface Mount | 4-WLCSP (0.8x0.8) |
|
ULN2803ANTRANS 8NPN DARL 50V 0.5A DIP-18 |
223,054 |
|
Datasheet |
18-DIP (0.300", 7.62mm) | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 18-DIP |
|
|
FDZ4010BUFFER/INVERTER BASED PERIPHERAL |
159,600 |
|
Datasheet |
6-UFBGA, WLCSP | - | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | - | 2V ~ 5V | 10mA | 1.5Ohm (Max) | Non-Inverting | - | - | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP (1.16x0.76) |
