OR Controllers, Ideal Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | FET Type | Ratio - Input:Output | Internal Switch(s) | Delay Time - ON | Delay Time - OFF | Current - Output (Max) | Current - Supply | Voltage - Supply | Applications | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

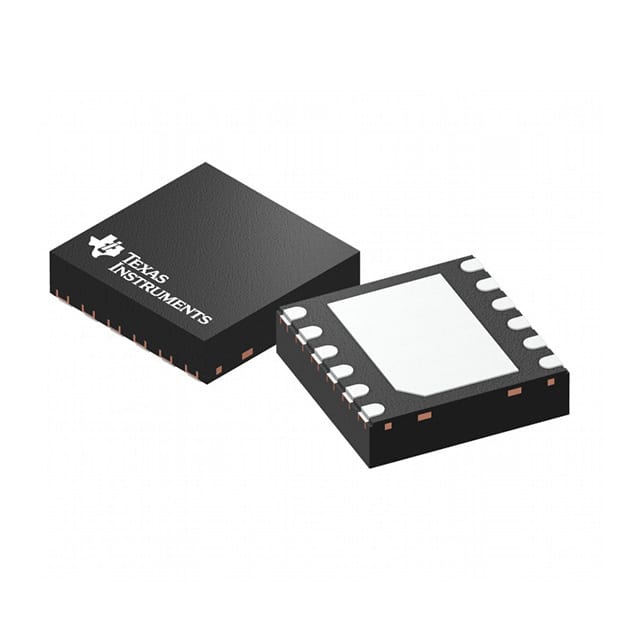

LM74810QDRRRQ1AUTOMOTIVE IDEAL DIODE CONTROLLE |
7,398 |
|
Datasheet |
- | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | 1:1 | No | 850 ns | 500 ns | - | 408 µA | 3V ~ 65V | Redundant Power Supplies | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 12-WSON (3x3) |
|
|
LM74800QDRRRQ13-V TO 65-V, AUTOMOTIVE IDEAL DI |
20,384 |
|
Datasheet |
- | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | 1:1 | No | 2.6 µs | 500 ns | 2.6A | 413 µA | 3V ~ 65V | Redundant Power Supplies | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 12-WSON (3x3) |
|
LM5050Q0MK-1/NOPBIC OR CTRLR N+1 6SOT |
14,958 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | N:1 | No | - | 486 ns | - | 130 µA | 5V ~ 75V | Redundant Power Supplies | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-THIN |
|
|
LM5050Q1MK-1/NOPBIC OR CTRLR N+1 6SOT |
4,246 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | N:1 | No | - | 486 ns | - | 130 µA | 5V ~ 75V | Redundant Power Supplies | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-THIN |
|
|
LM74801QDRRRQ13-V TO 65-V, AUTOMOTIVE IDEAL DI |
21,880 |
|
Datasheet |
- | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | 1:1 | No | 2.6 µs | 500 ns | 5A | 413 µA | 3V ~ 65V | Redundant Power Supplies | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 12-WSON (3x3) |
|
LM74910QRGERQ1AUTOMOTIVE IDEAL DIODE WITH CIRC |
19,204 |
|
- |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | 1:1 | Yes | - | - | 2.6A | 635 µA | 3V ~ 65V | N+1 Power Supplies, High Availability | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 24-VQFN (4x4) |
|
|
MAX16171ATA+TIDEAL DIODE CONTROLLER WITH REVE |
18,582 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | 1:1 | No | - | - | - | 150 µA | 4V ~ 57V | Redundant Power Supplies, Telecom Infrastructure | -40°C ~ 125°C (TA) | Automotive | - | Surface Mount, Wettable Flank | 8-TDFN-CU (2x3) |
|

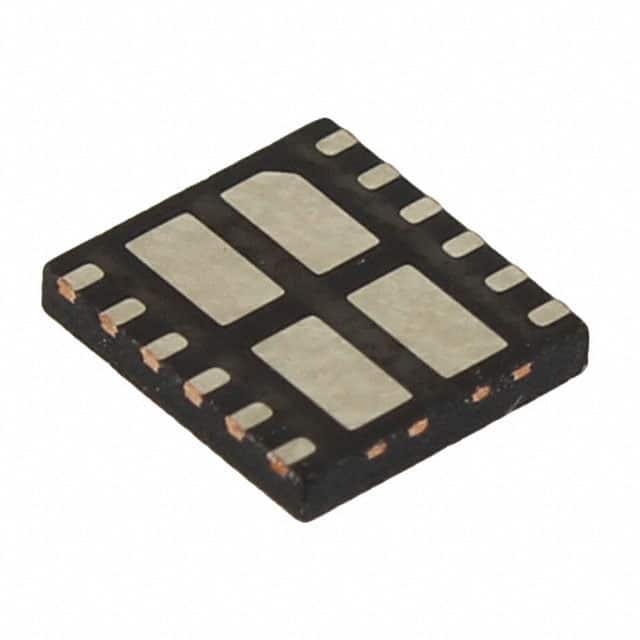

FDMQ8205AGREENBRIDGETM 2 SERIES OF HIGH-E |
8,540 |
|
Datasheet |
GreenBridge™ | 12-WDFN Exposed Pad | Tape & Reel (TR) | Active | Bridge Rectifier | N and P-Channel | Bridge (2) | Yes | - | - | - | 400 µA | 57V (Max) | Power Over Ethernet (PoE) | -40°C ~ 85°C | - | - | Surface Mount | 12-MLP (5x4.5) |
|

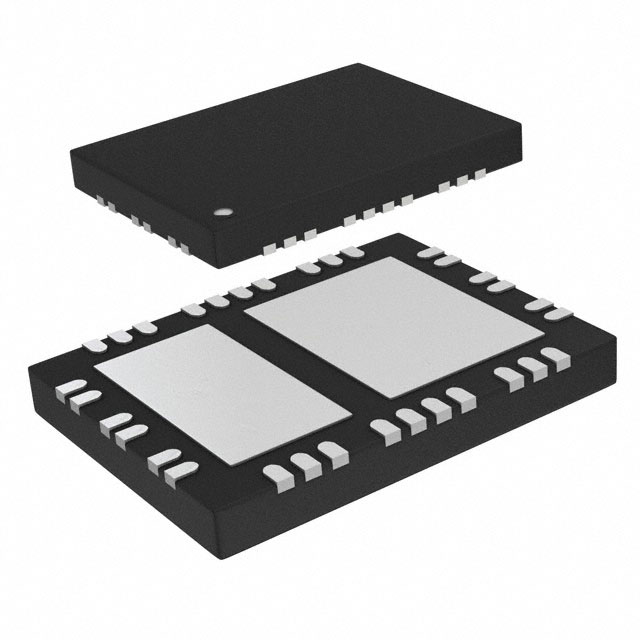

PD70224ILQ-TRIC BRIDGE RECT FET BASED 40MLPQ |
20,948 |
|
Datasheet |
- | 40-TFQFN Exposed Pad, 32 Leads | Tape & Reel (TR) | Active | Bridge Rectifier | N-Channel | Bridge (2) | Yes | - | - | 1.5A | 900 µA | 57V (Max) | Power Over Ethernet (PoE) | -40°C ~ 125°C | - | - | Surface Mount | 40-QFN (6x8) |
|
|
LM74930QRGERQ1LM74930QRGERQ1 |
716 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | 1:1 | No | - | - | 2.6A | 665 µA | 4V ~ 65V | Redundant Power Supplies | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 24-VQFN (4x4) |
|
|
MAX16171ATA/VY+TIDEAL DIODE CONTROLLER 8-TDFN |
5,744 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | 1:1 | No | - | - | - | 150 µA | 4V ~ 57V | Redundant Power Supplies, Telecom Infrastructure | -40°C ~ 125°C (TA) | Automotive | - | Surface Mount, Wettable Flank | 8-TDFN-CU (2x3) |
|
|
MAX17614ATP+60V, 3A IDEAL DIODE POWER PATH S |
638 |
|
Datasheet |
- | 20-WFQFN Exposed Pad | Tray | Active | Source Selector Switch | N-Channel | 1:1 | Yes | 1.15 ms | - | 3A | 1.02 mA | 4.5V ~ 60V | Redundant Power Supplies | -40°C ~ 125°C | - | - | Surface Mount | 20-TQFN (4x4) |
|
LM74700MDDFREPENHANCED LOW IQ IDEAL DIODE CONT |
4,666 |
|
Datasheet |
- | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | 1:1 | No | 1.4 µs | 450 ns | - | 80 µA | 3.2V ~ 65V | General Purpose | -50°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-8 |
|

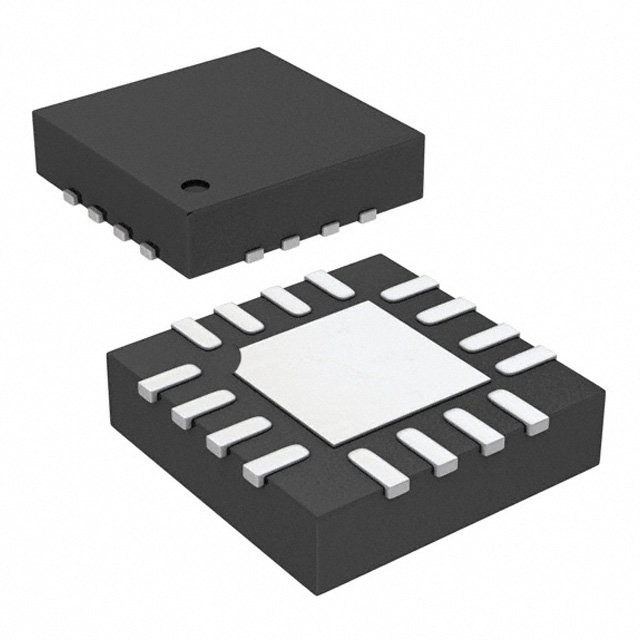

LT4321IUF#PBFIC OR CTRLR BRIDGE RECT 16QFN |
13,488 |
|
Datasheet |
- | 16-WQFN Exposed Pad | Tube | Active | Bridge Rectifier | N-Channel | Bridge (2) | No | - | - | - | 32 µA | 20V ~ 80V | Power Over Ethernet (PoE) | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (4x4) |
|
|
LT4321IUF#TRPBFIC OR CTRLR BRIDGE RECT 16QFN |
5,160 |
|
Datasheet |
- | 16-WQFN Exposed Pad | Tape & Reel (TR) | Active | Bridge Rectifier | N-Channel | Bridge (2) | No | - | - | - | 32 µA | 20V ~ 80V | Power Over Ethernet (PoE) | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (4x4) |
|
LTC4412ES6#TRMPBFIC OR CTRLR SRC SELECT TSOT23-6 |
9,580 |
|
Datasheet |
PowerPath™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | 2:1 | No | 110 µs | 13 µs | - | 15 µA | 2.5V ~ 28V | Handheld, USB Powered Supplies | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
LTC4412ES6#TRPBFIC OR CTRLR SRC SELECT TSOT23-6 |
2,574 |
|
Datasheet |
PowerPath™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | 2:1 | No | 110 µs | 13 µs | - | 15 µA | 2.5V ~ 28V | Handheld, USB Powered Supplies | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
LTC4412IS6#TRPBFIC OR CTRLR SRC SELECT TSOT23-6 |
2,410 |
|
Datasheet |
PowerPath™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | 2:1 | No | 110 µs | 13 µs | - | 15 µA | 2.5V ~ 28V | Handheld, USB Powered Supplies | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
LTC4412IS6#TRMPBFIC OR CTRLR SRC SELECT TSOT23-6 |
670 |
|
Datasheet |
PowerPath™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | 2:1 | No | 110 µs | 13 µs | - | 15 µA | 2.5V ~ 28V | Handheld, USB Powered Supplies | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
LT4321HUF#TRPBFIC OR CTRLR BRIDGE RECT 16QFN |
6,498 |
|
Datasheet |
- | 16-WQFN Exposed Pad | Tape & Reel (TR) | Active | Bridge Rectifier | N-Channel | Bridge (2) | No | - | - | - | 32 µA | 20V ~ 80V | Power Over Ethernet (PoE) | -40°C ~ 125°C | - | - | Surface Mount | 16-QFN (4x4) |
