Motor Drivers, Controllers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Motor Type - Stepper | Motor Type - AC, DC | Function | Output Configuration | Interface | Technology | Step Resolution | Applications | Current - Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

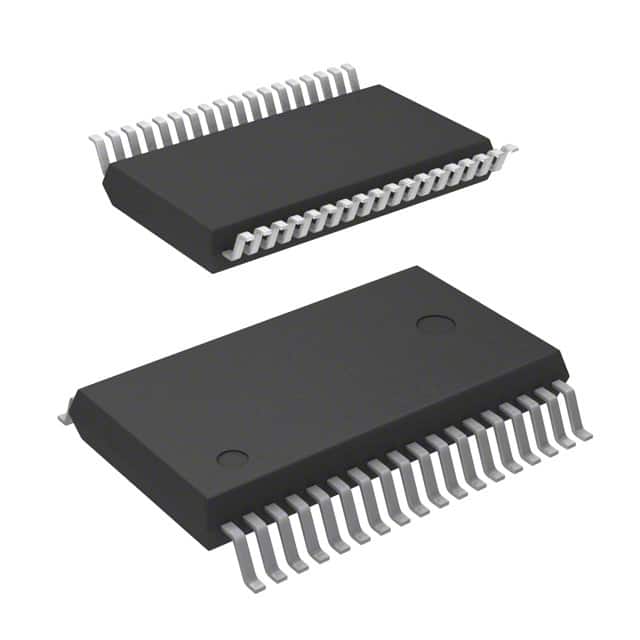

LB11921T-MPB-EIC MOTOR DRIVER 4.4V-7V 36TSSOP |
8,940 |
|
- |
- | 36-TFSOP (0.220", 5.60mm Width) | Tube | Obsolete | - | Brushless DC (BLDC) | Controller - Speed | Pre-Driver - Half Bridge (3) | Parallel | - | - | General Purpose | - | 4.4V ~ 7V | - | -20°C ~ 80°C (TA) | - | - | Surface Mount | 36-TSSOP |
|
LB11923V-MPB-EIC MOTOR DRIVER 4.4V-7V 44SSOP |
9,512 |
|
- |
- | 44-LSSOP (0.220", 5.60mm Width) | Tube | Obsolete | - | Brushless DC (BLDC) | Controller - Commutation, Direction Management | Pre-Driver - Half Bridge (3) | PWM | Bipolar | - | General Purpose | - | 4.4V ~ 7V | - | -20°C ~ 80°C (TA) | - | - | Surface Mount | 44-SSOP |
|

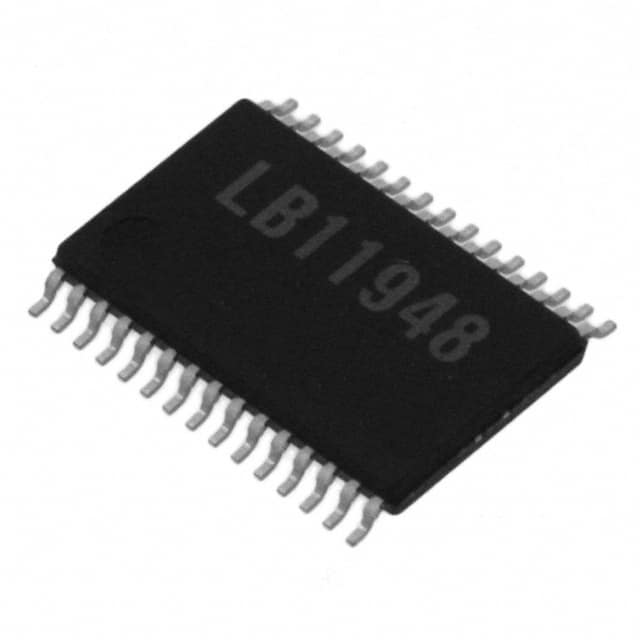

LB11948T-MPB-EIC MTR DRV BIPOLAR 3-15V 30TSSOP |
2,746 |
|
- |
- | 30-TSSOP (0.220", 5.60mm Width) | Tube | Obsolete | Bipolar | - | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | Parallel | Bipolar | - | General Purpose | 400mA | 3V ~ 15V | 3V ~ 15V | -20°C ~ 85°C (TA) | - | - | Surface Mount | 30-TSSOP |
2-Heat-Tabs.jpg)
|
LB11961FML-MPB-EIC MOTOR DRIVER 4.5V-16V 14HSSOP |
7,194 |
|
- |
- | 14-LSSOP (0.173", 4.40mm Width) + 2 Heat Tabs | Tube | Obsolete | - | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel | Bipolar | - | Fan Motor Driver | 1A | 4.5V ~ 16V | 4.5V ~ 16V | -30°C ~ 90°C (TA) | - | - | Surface Mount | 14-HSSOP |
|
|
LB11961-MPB-HIC MOTOR DRIVER 4.5V-16V 14HSSOP |
9,734 |
|
Datasheet |
- | 14-LSSOP (0.173", 4.40mm Width) + 2 Heat Tabs | Tube | Obsolete | - | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel | Bipolar | - | Fan Motor Driver | 1A | 4.5V ~ 16V | 4.5V ~ 16V | -30°C ~ 90°C (TA) | - | - | Surface Mount | 14-HSSOP |
|
|
LB11961RM-TLM3-HIC MOTOR DRIVER 4.5V-16V 14HSSOP |
9,084 |
|
- |
- | 14-LSSOP (0.173", 4.40mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | - | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel | Bipolar | - | Fan Motor Driver | 1A | 4.5V ~ 16V | 4.5V ~ 16V | -30°C ~ 90°C (TA) | - | - | Surface Mount | 14-HSSOP |
|
LB11961V-MPB-EIC MOTOR DRIVER 4.5V-16V 16SSOP |
6,224 |
|
- |
- | 16-LSSOP (0.173", 4.40mm Width) | Tube | Obsolete | - | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel | Bipolar | - | Fan Motor Driver | 1A | 4.5V ~ 16V | 4.5V ~ 16V | -30°C ~ 90°C (TA) | - | - | Surface Mount | 16-SSOP |
|
LB11961V-MPB-HIC MOTOR DRIVER 4.5V-16V 16SSOP |
9,866 |
|
- |
- | 16-LSSOP (0.173", 4.40mm Width) | Tube | Obsolete | - | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel | Bipolar | - | Fan Motor Driver | 1A | 4.5V ~ 16V | 4.5V ~ 16V | -30°C ~ 90°C (TA) | - | - | Surface Mount | 16-SSOP |
|
LB11967V-MPB-EIC MOTOR DRIVER 6V-16V 20SSOP |
4,656 |
|
- |
- | 20-LSSOP (0.173", 4.40mm Width) | Tube | Obsolete | - | Brushless DC (BLDC) | Controller - Speed | Pre-Driver - Half Bridge (2) | PWM | - | - | Fan Controller | - | 6V ~ 16V | - | -30°C ~ 95°C (TA) | - | - | Surface Mount | 20-SSOP |
|
|
LB11967V-MPB-HIC MOTOR DRIVER 6V-16V 20SSOP |
7,690 |
|
Datasheet |
- | 20-LSSOP (0.173", 4.40mm Width) | Tube | Obsolete | - | Brushless DC (BLDC) | Controller - Speed | Pre-Driver - Half Bridge (2) | PWM | - | - | Fan Controller | - | 6V ~ 16V | - | -30°C ~ 95°C (TA) | - | - | Surface Mount | 20-SSOP |
|
LB11970FV-MPB-EIC MOTOR DRIVER 4.5V-16V 18SSOP |
6,476 |
|
Datasheet |
- | 18-LSOP (0.173", 4.40mm Width) | Tube | Obsolete | - | Brushless DC (BLDC) | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel, PWM | Bipolar | - | Fan Motor Driver | 1.2A | 4.5V ~ 16V | 3.5V ~ 16V | -30°C ~ 90°C (TA) | - | - | Surface Mount | 18-SSOP |
|
|
LB11970FV-MPB-HIC MOTOR DRIVER 4.5V-16V 18SSOP |
7,314 |
|
Datasheet |
- | 18-LSOP (0.173", 4.40mm Width) | Tube | Obsolete | - | Brushless DC (BLDC) | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel, PWM | Bipolar | - | Fan Motor Driver | 1.2A | 4.5V ~ 16V | 3.5V ~ 16V | -30°C ~ 90°C (TA) | - | - | Surface Mount | 18-SSOP |
|
|
LB11970FV-TLM-EIC MOTOR DRIVER 4.5V-16V 18SSOP |
7,142 |
|
Datasheet |
- | 18-LSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | - | Brushless DC (BLDC) | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel, PWM | Bipolar | - | Fan Motor Driver | 1.2A | 4.5V ~ 16V | 3.5V ~ 16V | -30°C ~ 90°C (TA) | - | - | Surface Mount | 18-SSOP |
|
|
LB11970RV-MPB-HIC MOTOR DRIVER 4.5V-16V 18SSOP |
3,768 |
|
- |
- | 18-LSOP (0.173", 4.40mm Width) | Tube | Obsolete | - | Brushless DC (BLDC) | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel, PWM | Bipolar | - | Fan Motor Driver | 1.2A | 4.5V ~ 16V | 3.5V ~ 16V | -30°C ~ 90°C (TA) | - | - | Surface Mount | 18-SSOP |
|
LB11988D-EIC MOTOR DRIVER 7V-22V 20HDIP |
3,420 |
|
- |
- | 20-DIP (0.500", 12.70mm) Exposed Pad | Tube | Obsolete | - | Brushless DC (BLDC) | Driver - Fully Integrated, Control and Power Stage | Half Bridge (3) | Parallel | Bipolar | - | Fan Motor Driver | 1.3A | 7V ~ 22V | 5V ~ 22V | -30°C ~ 75°C (TA) | - | - | Through Hole | 20-HDIP |
|
LB11988HR-MPB-EIC MOTOR DRIVER 5V-22V 28HSOP |
3,794 |
|
Datasheet |
- | 28-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs | Tube | Obsolete | - | Brushless DC (BLDC) | Driver - Fully Integrated, Control and Power Stage | Half Bridge (3) | Parallel | Bipolar | - | Fan Motor Driver | 1.3A | 5V ~ 22V | 5V ~ 22V | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-HSOPH |
|
|
LB11988H-TLM-EIC MOTOR DRIVER 7V-22V 28HSOP |
6,716 |
|
Datasheet |
- | 28-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | - | Brushless DC (BLDC) | Driver - Fully Integrated, Control and Power Stage | Half Bridge (3) | Parallel | Bipolar | - | Fan Motor Driver | 1.3A | 7V ~ 22V | 5V ~ 22V | -30°C ~ 85°C (TA) | - | - | Surface Mount | 28-HSOP-HC |
|
LB11988V-MPB-EIC MOTOR DRIVER 7V-22V 24SSOPJ |
4,192 |
|
- |
- | 24-LSOP (0.220", 5.60mm Width) | Tube | Obsolete | - | Brushless DC (BLDC) | Driver - Fully Integrated, Control and Power Stage | Half Bridge (3) | Parallel | Bipolar | - | Fan Motor Driver | 1.3A | 7V ~ 22V | 5V ~ 22V | -30°C ~ 75°C (TA) | - | - | Surface Mount | 24-SSOP-J |
|
LB1668M-MPB-EIC MOTOR DRVR 1.5A 14MFPS |
6,814 |
|
- |
- | 14-LSOP (0.173", 4.40mm Width) | Tube | Obsolete | - | - | - | Half Bridge (2) | Logic | Bipolar | - | DC Motors, General Purpose | - | 6.4V ~ 7V | 12V, 24V | -30°C ~ 80°C (TA) | - | - | Surface Mount | 14-MFPS |
|
|
LB1668M-MPB-HIC MOTOR DRVR 1.5A 14MFPS |
3,494 |
|
- |
- | 14-LSOP (0.173", 4.40mm Width) | Tube | Obsolete | - | - | - | Half Bridge (2) | Logic | Bipolar | - | DC Motors, General Purpose | - | 6.4V ~ 7V | 12V, 24V | -30°C ~ 80°C (TA) | - | - | Surface Mount | 14-MFPS |
