Motor Drivers, Controllers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Motor Type - Stepper | Motor Type - AC, DC | Function | Output Configuration | Interface | Technology | Step Resolution | Applications | Current - Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

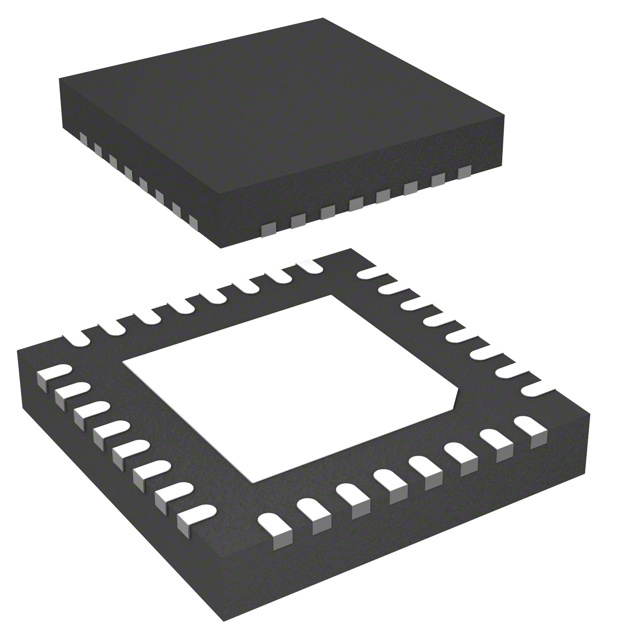

TMC262C-LAIC MTR DRVR BIPLR 3.3-5.5V 32QFN |
38,880 |
|
Datasheet |
- | 32-VFQFN Exposed Pad | Tray | Active | Bipolar | - | Controller - Commutation, Direction Management | Pre-Driver - Half Bridge (4) | SPI, Step/Direction | Power MOSFET | 1 ~ 1/256 | General Purpose | - | 3V ~ 5.25V | 9V ~ 59V | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 32-QFN (5x5) |
|

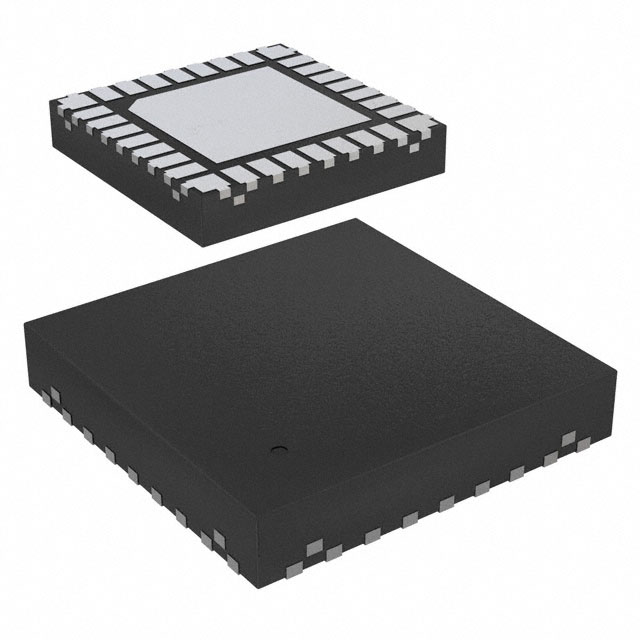

MC33926PNBR2IC MOTOR DRIVER 5V-28V 32PQFN |
4,732 |
|
Datasheet |
- | 32-PowerQFN | Tape & Reel (TR) | Active | - | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel | CMOS | - | - | 5A | 5V ~ 28V | 5V ~ 28V | -40°C ~ 125°C (TA) | Automotive | - | Surface Mount | 32-PQFN (8x8) |
|

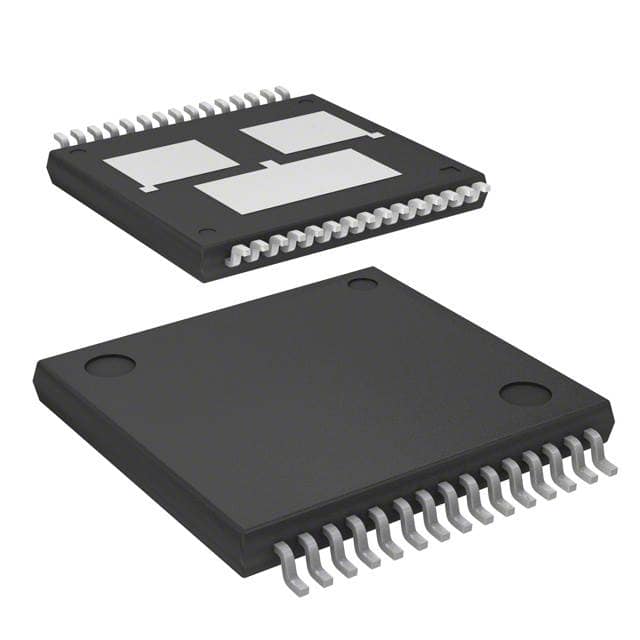

VNH3SP30TR-EIC MTR DRV 5.5-36V MULTIPWRSO-30 |
9,054 |
|
Datasheet |
STripFET™, VIPower™ | 30-MPSO, MultiPowerSO | Tape & Reel (TR) | Active | - | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel, PWM | Power MOSFET | - | - | 30A | 5.5V ~ 36V | 5.5V ~ 36V | -40°C ~ 150°C (TJ) | Automotive | - | Surface Mount | MultiPowerSO-30 |
|
TMC5130A-TA-TIC MTR DRV BIPOLAR 5.5-46V 48QFP |
18,526 |
|
Datasheet |
- | 48-TQFP Exposed Pad | Tape & Reel (TR) | Active | Bipolar | - | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | SPI, Step/Direction, RS-232 | Power MOSFET | 1 ~ 1/256 | General Purpose | 1.4A | 5.5V ~ 46V | 4.75V ~ 46V | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 48-TQFP-EP (7x7) |
|
A3938SLDTR-TIC MOTOR DRIVER 18V-50V 38TSSOP |
23,248 |
|
Datasheet |
- | 38-TFSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | - | Brushless DC (BLDC) | Controller - Commutation, Direction Management | Pre-Driver - Half Bridge (3) | Parallel, PWM | Power MOSFET | - | General Purpose | - | 18V ~ 50V | - | -20°C ~ 85°C (TA) | - | - | Surface Mount | 38-TSSOP |
|
MP6540HGU-A-Z50V, 5A, THREE-PHASE POWER STAGE |
5,834 |
|
Datasheet |
- | 26-VFQFN | Tape & Reel (TR) | Active | Multiphase | Brushless DC (BLDC) | Driver - Fully Integrated, Control and Power Stage | Pre-Driver - Half Bridge (3) | PWM | Power MOSFET | - | Brushless DC (BLDC) | 5A | 5.5V ~ 50V | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 26-QFN (5x5) |
|
L6470PDIC MOTOR DRIVER BIPLR 36POWERSSO |
1,934 |
|
Datasheet |
STSPIN L64 | 36-PowerBSSOP (0.433", 11.00mm Width) | Tube | Active | Bipolar | - | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | SPI | DMOS | 1 ~ 1/128 | General Purpose | 3A | 3.3V, 5V | 8V ~ 45V | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSO-36 Slug Up |
|
|
L6470PDTRIC MTR DRV BIPLR 3.3V/5V 36PWRSO |
634 |
|
Datasheet |
STSPIN L64 | 36-PowerBSSOP (0.433", 11.00mm Width) | Tape & Reel (TR) | Active | Bipolar | - | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | SPI | DMOS | 1 ~ 1/128 | General Purpose | 3A | 3.3V, 5V | 8V ~ 45V | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSO-36 Slug Up |
|
L6205PD013TRIC MTR DRV BIPOLAR 8-52V 20PWRSO |
2,368 |
|
Datasheet |
STSPIN L62 | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Bipolar | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | Parallel | BiCDMOS | - | General Purpose | 2.8A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Surface Mount | PowerSO-20 |
|
TMC5240ATJ+T36V 2ARMS+ SMART INTEGRATED STEP |
4,418 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Bipolar | - | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | SPI, UART | Power MOSFET | 1 ~ 1/256 | General Purpose | 2.1A | 4.5V ~ 36V | 4.5V ~ 36V | -40°C ~ 125°C | - | - | Surface Mount | 32-TQFN (5x5) |
|
|
VNH5019ATR-EIC MTR DRV 5.5-24V MULTIPWRSO-30 |
12,800 |
|
Datasheet |
ECOPACK®, VIPower™ | 30-PowerSOP (0.630", 16.00mm Width) | Tape & Reel (TR) | Active | - | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel, PWM | Power MOSFET | - | - | 30A | 5.5V ~ 24V | 5.5V ~ 24V | -40°C ~ 150°C (TJ) | Automotive | - | Surface Mount | MultiPowerSO-30 |
|
|
MP6540HGU-P50V, 5A, THREE-PHASE POWER STAGE |
3,000 |
|
Datasheet |
- | 26-VFQFN | Tape & Reel (TR) | Active | Multiphase | Brushless DC (BLDC) | Driver - Fully Integrated, Control and Power Stage | Pre-Driver - Half Bridge (3) | PWM | Power MOSFET | - | Brushless DC (BLDC) | 5A | 5.5V ~ 50V | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 26-QFN (5x5) |
|
|
TMC5130A-TAIC MTR DRV BIPOLAR 5.5-46V 48QFP |
21,758 |
|
Datasheet |
- | 48-TQFP Exposed Pad | Tray | Active | Bipolar | - | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | SPI, Step/Direction, RS-232 | Power MOSFET | 1 ~ 1/256 | General Purpose | 1.4A | 5.5V ~ 46V | 4.75V ~ 46V | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 48-TQFP-EP (7x7) |
|

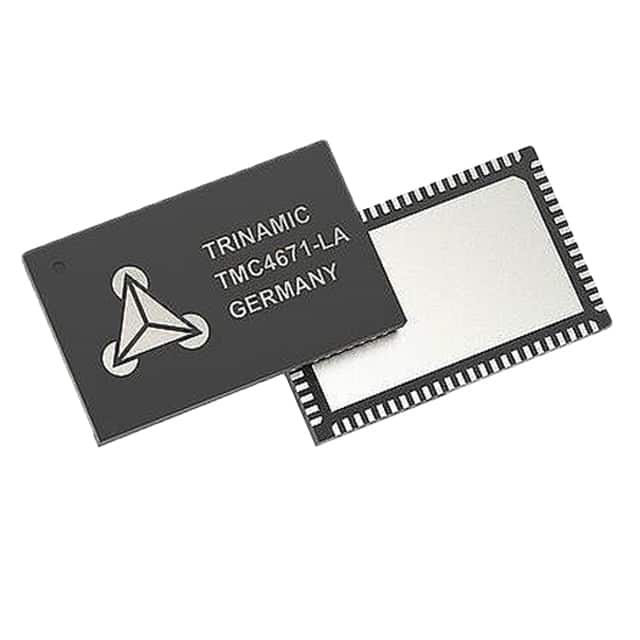

TMC4671-LASERVO CONTROLLER IC, QFN76 |
2,252 |
|
Datasheet |
- | 76-VFQFN Exposed Pad | Tray | Active | Multiphase | Brushless DC (BLDC), PMSM, DC | Controller - Commutation, Direction Management | Pre-Driver - High Side/Low Side | SPI, Step/Direction | Power MOSFET | - | Servo | 4mA | 3.15V ~ 3.45V | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 76-QFN (10.5x6.5) |
|
|
TMC5240ATJ+36V 2ARMS+ SMART INTEGRATED STEP |
638 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tray | Active | Bipolar | - | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | SPI, UART | Power MOSFET | 1 ~ 1/256 | General Purpose | 2.1A | 4.5V ~ 36V | 4.5V ~ 36V | -40°C ~ 125°C | - | - | Surface Mount | 32-TQFN (5x5) |
|
NCV33035DWR2GIC MOTOR DRIVER 10V-30V 24SOIC |
790 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | - | Brushless DC (BLDC) | Controller - Commutation, Direction Management | Pre-Driver - Half Bridge (3) | Analog | - | - | General Purpose | - | 10V ~ 30V | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 24-SOIC |
|
|
MP6541AGQKT-Z45V 8A THREE-PHASE POWER STAGE W |
9,692 |
|
Datasheet |
- | 26-PowerWQFN | Tape & Reel (TR) | Active | Multiphase | Brushless DC (BLDC) | Driver - Fully Integrated, Control and Power Stage | Half Bridge (3) | PWM | Power MOSFET | - | General Purpose | 8A | 4.75V ~ 40V | 4.75V ~ 40V | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 26-TQFN (6x6) |
|
|
MP6541GQKT-Z45V 8A THREE-PHASE POWER STAGE W |
9,494 |
|
Datasheet |
- | 26-PowerWQFN | Tape & Reel (TR) | Active | Multiphase | Brushless DC (BLDC) | Driver - Fully Integrated, Control and Power Stage | Half Bridge (3) | PWM | Power MOSFET | - | General Purpose | 8A | 4.75V ~ 40V | 4.75V ~ 40V | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 26-TQFN (6x6) |
|
MAX6650EUB+IC MOTOR DRIVER 3V-5.5V 10UMAX |
1,092 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | - | Brushless DC (BLDC) | Controller - Speed | Pre-Driver - Low Side | I2C | - | - | Fan Controller | - | 3V ~ 5.5V | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
|
MAX6650EUB+TIC MOTOR DRIVER 3V-5.5V 10UMAX |
12,286 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Brushless DC (BLDC) | Controller - Speed | Pre-Driver - Low Side | I2C | - | - | Fan Controller | - | 3V ~ 5.5V | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
