Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL89367FRTAZIC GATE DRVR LOW-SIDE 16TDFN |
7,760 |
|
Datasheet |
- | 16-WFDFN Exposed Pad | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 16V | - | 6A, 6A | Inverting, Non-Inverting | - | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TDFN (5x3) |
|
DEIC421IC GATE DRVR LOW-SIDE DE275 |
2,274 |
|
- |
- | 7-SMD, Flat Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 8V ~ 30V | 0.8V, 3.5V | 20A, 20A | Inverting | - | 3ns, 3ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 7-SMD |
|
|
ZL1505ALNFT1IC GATE DRVR HALF-BRIDGE 10DFN |
2,088 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 7.5V | 1.7V, 3.4V | 3.2A, 3.2A | Non-Inverting | 30 V | 5.3ns, 4.8ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (3x3) |
|
L9856-LFIC GATE DRVR HIGH-SIDE 8SO |
9,624 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 4.4V ~ 6.5V | - | 500mA, 500mA | Inverting | 150 V | 100ns, 100ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
PX3516ADDGR4XTMA1IC GATE DRVR HALF-BRDG TDSON10-2 |
7,852 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 6V | 1.3V, 1.9V | 2A, 2A | Non-Inverting | 30 V | 10ns, 10ns | -25°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TDSON-10-2 |
|
FAN7393AMIC GATE DRVR HALF-BRIDGE 14SOP |
8,388 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 2.5A, 2.5A | Non-Inverting | 600 V | 25ns, 15ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 14-SOP |
|
MC33883HEGIC GATE DRVR HALF-BRIDGE 20SOIC |
8,392 |
|
- |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | - | 4 | - | 5.5V ~ 55V | - | - | Non-Inverting | - | - | - | - | - | Surface Mount | 20-SOIC |
|
|
MC33883HEGR2IC GATE DRVR HALF-BRIDGE 20SOIC |
6,792 |
|
- |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 4 | N-Channel MOSFET | 5.5V ~ 28V | 0.8V, 2V | 1A, 1A | Non-Inverting | 55 V | 80ns, 80ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SOIC |
|
HIP2121FRTAZIC GATE DRVR HALF-BRIDGE 10TDFN |
6,786 |
|
Datasheet |
- | 10-WDFN Exposed Pad | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 8V ~ 14V | 1.4V, 2.2V | 2A, 2A | Inverting | 114 V | 10ns, 10ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 10-TDFN (4x4) |
|
HIP2121FRTBZIC GATE DRVR HALF-BRIDGE 9TDFN |
3,554 |
|
Datasheet |
- | 9-WDFN Exposed Pad | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 8V ~ 14V | 1.4V, 2.2V | 2A, 2A | Inverting | 114 V | 10ns, 10ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 9-TDFN (4x4) |
|
IRS2509STRPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
3,412 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IRS25091STRPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
4,402 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IRS2334SPBFIC GATE DRVR HALF-BRIDGE 20SOIC |
9,774 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA | Non-Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SOIC |
|
IRS2509SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
9,666 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IRS25091SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
9,010 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

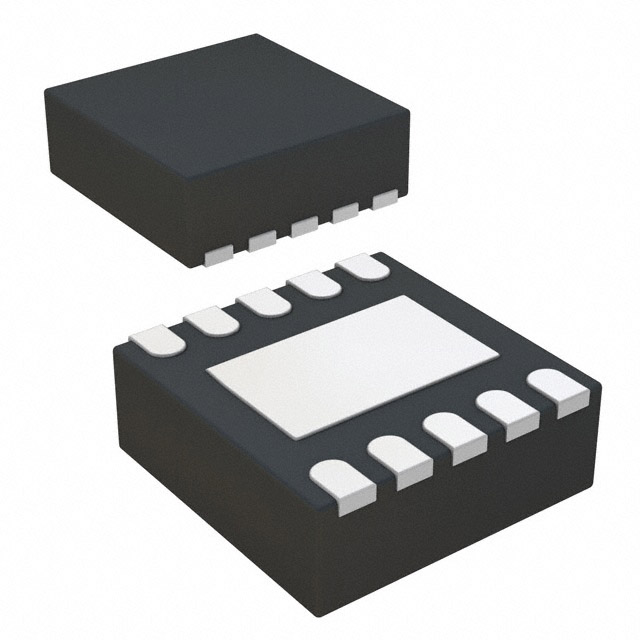

CHL8550CRTIC GATE DRVR HALF-BRIDGE 10DFN |
6,048 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.8V, 1V | 2A, 2A | Non-Inverting | 35 V | 10ns, 8ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (3x3) |
|
|
CHL8505CRTIC GATE DRVR HALF-BRIDGE 10DFN |
9,214 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.8V, 1V | 2A, 2A | Non-Inverting | 35 V | 10ns, 8ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (3x3) |
|
|
CHL8515CRTIC GATE DRVR HALF-BRIDGE 10DFN |
9,924 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.8V, 1V | 2A, 2A | Non-Inverting | 35 V | 10ns, 8ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (3x3) |
|
|
IR3535MTRPBFIC GATE DRVR HALF-BRIDGE 16MLPQ |
3,980 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 7V | - | -, 4A | Non-Inverting | - | - | - | - | - | Surface Mount | 16-MLPQ (3x3) |
|

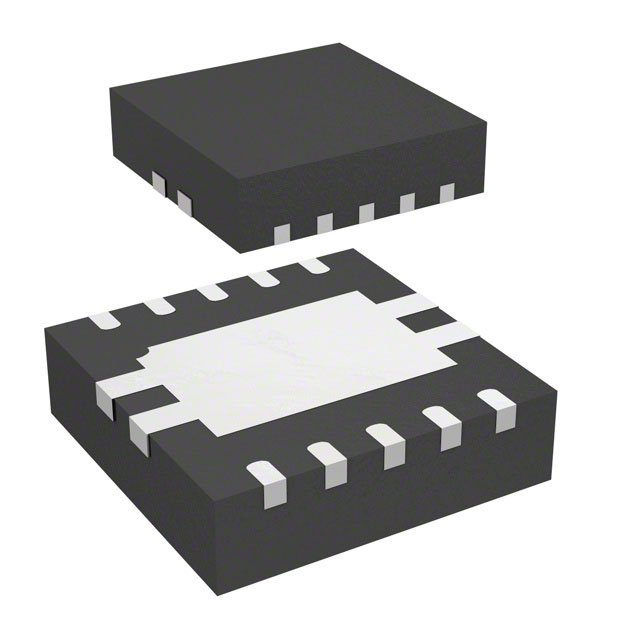

IR3537MTRPBFIC GATE DRVR HALF-BRIDGE 10DFN |
4,128 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 13.2V | - | 3A, 4A | Non-Inverting | - | - | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (3x3) |
