Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX620CWN+IC GATE DRVR HIGH-SIDE 18SOIC |
200 |
|
Datasheet |
- | 18-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | High-Side | Independent | 4 | N-Channel MOSFET | 4.5V ~ 16.5V | 0.8V, 2.4V | - | Non-Inverting | - | 1.7µs, 2.5µs | 0°C ~ 70°C (TA) | - | - | Surface Mount | 18-SOIC |
|
UCD7100APWPIC GATE DRVR LOW-SIDE 14HTSSOP |
9,122 |
|
Datasheet |
- | 14-PowerTSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.25V ~ 14.5V | 1.5V, 1.65V | 4A, 4A | Non-Inverting | - | 10ns, 10ns | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 14-HTSSOP |
|
LTC7000MPMSE-1#PBFIC GATE DRVR HIGH-SIDE 16MSOP |
7,748 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 135V | 1.8V, 1.7V | - | Non-Inverting | 135 V | 90ns, 40ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
TC4420IJAIC GATE DRVR LOW-SIDE 8CERDIP |
5,238 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A | Non-Inverting | - | 25ns, 25ns | -25°C ~ 150°C (TJ) | - | - | Through Hole | 8-CERDIP |
|
|
TC426MJAIC GATE DRVR LOW-SIDE 8CERDIP |
5,968 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting | - | 30ns, 30ns | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
2EG01XCDN11NIC GATE DRVR HALF-BRIDGE MODULE |
3,872 |
|
Datasheet |
- | Module | Tray | Active | Not Verified | Half-Bridge | Synchronous | 2 | IGBT | 13.5V ~ 26.4V | 0.5V, 3.3V | - | Non-Inverting | 1700 V | 500ns, 500ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
2SD315AI ULIC GATE DRVR HALF-BRIDGE MODULE |
9,528 |
|
Datasheet |
SCALE™-1 | Module | Tray | Not For New Designs | Not Verified | Half-Bridge | - | 2 | IGBT, N-Channel, P-Channel MOSFET | 15V | - | 18A, 18A | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
2SD300C17A4IC GATE DRVR HALF-BRIDGE MODULE |
5,068 |
|
Datasheet |
SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | - | 2 | IGBT | 14V ~ 16V | - | 30A, 30A | - | - | - | -40°C ~ 85°C (TA) | - | - | Through Hole | Module |
|

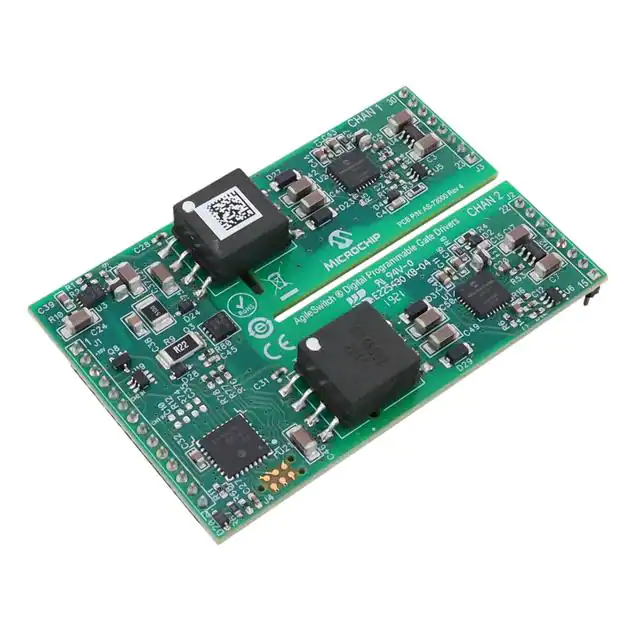

2ASC-12A2HPIC GATE DRVR HALF-BRIDGE MODULE |
6,982 |
|
Datasheet |
- | 30-DIP Module | Bulk | Active | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, SiC MOSFET | 14V ~ 16V | 1.25V, 3.5V | 10A, 10A | Non-Inverting | - | 80ns, 90ns | -40°C ~ 85°C | - | - | Through Hole | Module |
|
1SP0635D2S1-33IC GATE DRVR HI/LOW SIDE MODULE |
4,406 |
|
Datasheet |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 3300 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
1SP0635D2S1-17IC GATE DRVR HI/LOW SIDE MODULE |
8,126 |
|
- |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 1700 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

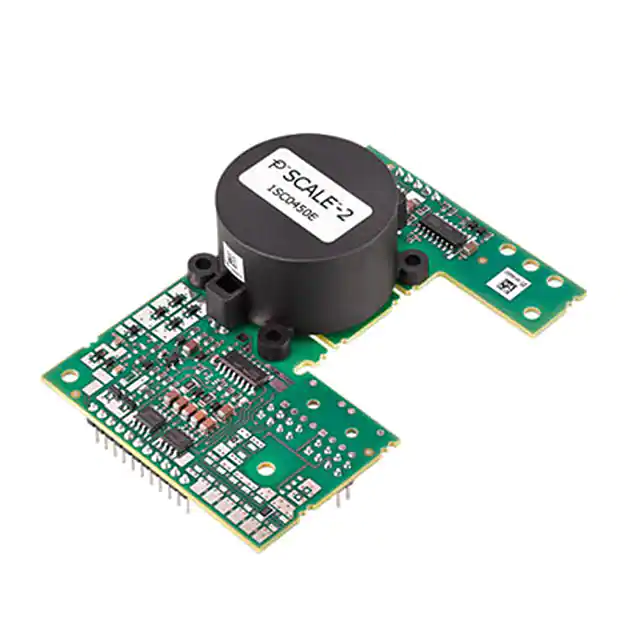

1SC0450E2B0-45IC GATE DRVR HI/LOW SIDE MODULE |
3,014 |
|
Datasheet |
SCALE™-2 | Module | Tray | Not For New Designs | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 4500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
1SC0450E2B0-65IC GATE DRVR HI/LOW SIDE MODULE |
9,212 |
|
Datasheet |
SCALE™-2 | Module | Tray | Not For New Designs | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 6500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

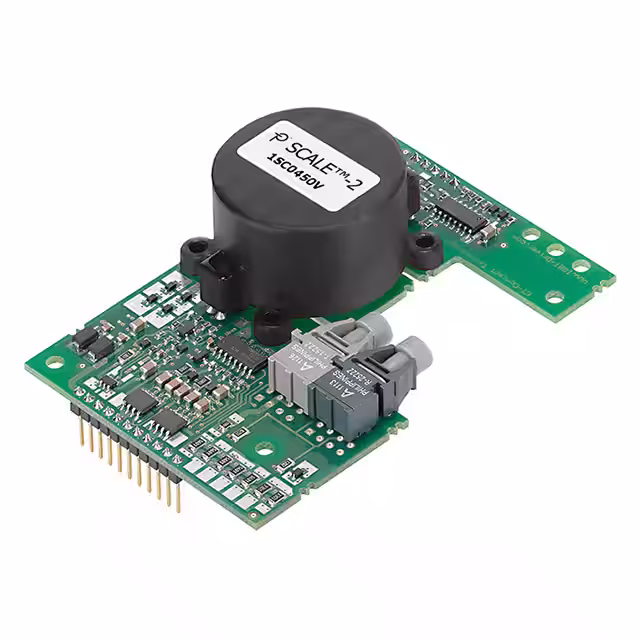

1SC0450V2B0-45IC GATE DRVR HI/LOW SIDE MODULE |
2,418 |
|
- |
SCALE™-2 | Module | Tray | Not For New Designs | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 4500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
1SC0450V2B0-65IC GATE DRVR HI/LOW SIDE MODULE |
2,488 |
|
- |
SCALE™-2 | Module | Tray | Not For New Designs | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 6500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
1SP0335V2M1-45IC GATE DRVR HI/LOW SIDE MODULE |
6,600 |
|
- |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 4500 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
1SP0635V2M1-12IC GATE DRVR HI/LOW SIDE MODULE |
9,798 |
|
Datasheet |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 1200 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
NCP81258MNTBGIC GATE DRVR HALF-BRIDGE 8DFN |
580 |
|
Datasheet |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 13.2V | 0.7V, 3.4V | - | Non-Inverting | 35 V | 16ns, 11ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (2x2) |
|
ISL6208CBZIC GATE DRVR HALF-BRIDGE 8SOIC |
3,138 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.5V, 2V | 2A, 2A | Non-Inverting | 33 V | 8ns, 8ns | -10°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
ISL6208IBZIC GATE DRVR HALF-BRIDGE 8SOIC |
9,952 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.5V, 2V | 2A, 2A | Non-Inverting | 33 V | 8ns, 8ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
