Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRS26072DSTRPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
5,060 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IRS2124STRPBFIRS2124 - HIGH SIDE DRIVER IC |
2,770 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Not Verified | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | - | 500mA, 500mA | Inverting | 600 V | 80ns, 80ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IRS2124SPBFHIGH SIDE DRIVER IC |
570 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Not Verified | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | - | 500mA, 500mA | Inverting | 600 V | 80ns, 80ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
MCP14A0301T-E/KBAIC GATE DRVR HI/LOW SIDE 8WDFN |
470 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 4.5V ~ 18V | 0.8V, 2V | 3A, 3A | Inverting, Non-Inverting | - | 13ns, 12ns | -40°C ~ 125°C (TA) | - | - | Surface Mount, Wettable Flank | 8-WDFN (2x2) |
|
UCC27325DGNRIC GATE DRVR LOW-SIDE 8MSOP |
2,730 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 15V | 1V, 2V | 4A, 4A | Inverting, Non-Inverting | - | 20ns, 15ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-HVSSOP |
|
HIP6601ACB-THALF BRIDGE BASED MOSFET DRIVER |
47,762 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10.8V ~ 13.2V | - | 730mA | Non-Inverting | - | 20ns, 20ns | 0°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
FAN3213TMX-F085IC GATE DRVR LOW-SIDE 8SOIC |
4,466 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 5A, 5A | Inverting | - | 12ns, 9ns | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
TF0211ELOW SIDE, SINGLE GATE DRIVER |
12,000 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.9A, 1.8A | Inverting, Non-Inverting | - | 15ns, 15ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
TF0215SLOW SIDE, SINGLE GATE DRIVER |
12,000 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.9A, 1.8A | Inverting, Non-Inverting | - | 15ns, 15ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
TF0215LOW SIDE, SINGLE GATE DRIVER |
12,000 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.9A, 1.8A | Inverting, Non-Inverting | - | 15ns, 15ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
TF0216LOW SIDE, SINGLE GATE DRIVER |
12,000 |
|
Datasheet |
* | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.9A, 1.8A | Inverting, Non-Inverting | - | 15ns, 15ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
TF0216SLOW SIDE, SINGLE GATE DRIVER |
11,950 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.9A, 1.8A | Inverting, Non-Inverting | - | 15ns, 15ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
TF0211CLOW SIDE, SINGLE GATE DRIVER |
11,800 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.9A, 1.8A | Inverting, Non-Inverting | - | 15ns, 15ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
FAN3223CMX-F085IC GATE DRVR LOW-SIDE 8SOIC |
4,144 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | - | 5A, 5A | Inverting | - | 12ns, 9ns | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
UCC27323DRIC GATE DRVR LOW-SIDE 8SOIC |
5,322 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 15V | 1V, 2V | 4A, 4A | Inverting | - | 20ns, 15ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IRS2111SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
4,176 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 8.3V, 12.6V | 290mA, 600mA | Inverting, Non-Inverting | 600 V | 75ns, 35ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IR21091PBFIR21091 - HALF-BRIDGE DRIVER |
11,900 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Active | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
MCP14A0304-E/MSIC GATE DRVR HI/LOW SIDE 8MSOP |
446 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT | 4.5V ~ 18V | 0.8V, 2V | 3A, 3A | Non-Inverting | - | 12ns, 12ns | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
MCP14A0303-E/MSIC GATE DRVR HI/LOW SIDE 8MSOP |
352 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT | 4.5V ~ 18V | 0.8V, 2V | 3A, 3A | Inverting | - | 12ns, 12ns | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|

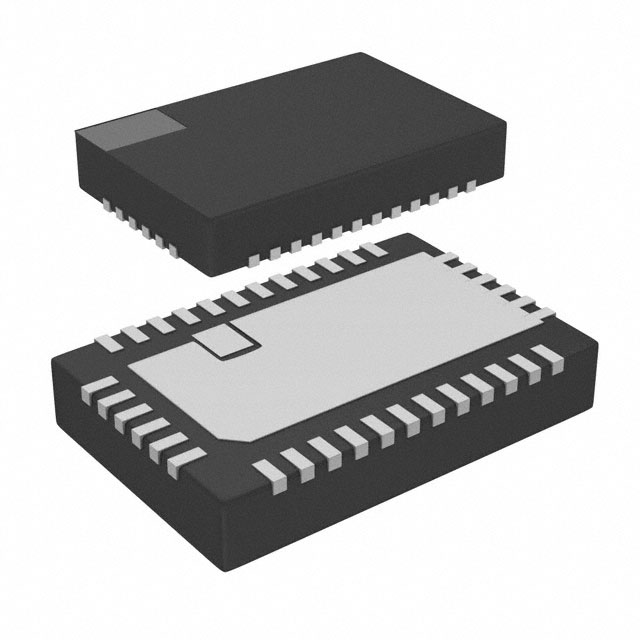

NCP81381MNTXGIC GATE DRVR HI/LOW SIDE 36QFN |
2,918 |
|
- |
- | 36-TFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | High-Side or Low-Side | Synchronous | 1 | N-Channel MOSFET | 4.5V ~ 5.5V | - | - | Non-Inverting | 35 V | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 36-QFN (6x4) |
