Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BRD1267C-TLIC HALF BRIDG DRV 11.5A INSOP24C |
3,866 |
|
Datasheet |
BridgeSwitch | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | Power MOSFET | 470mOhm LS + HS | 11.5A | - | - | 600V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | InSOP-24C |
|
AOZ5516QI-0230V 55A QFN5X5 DRMOS POWER STAGE |
4,552 |
|
Datasheet |
- | 31-PowerVFQFN Module | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | DrMOS | - | 55A | 120A | 4.5V ~ 5.5V | 4.5V ~ 25V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 31-QFN (5x5) |
|
DRV8906QPWPRQ1IC HALF BRIDGE DRVR 6A 24HTSSOP |
7,302 |
|
Datasheet |
- | 24-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Half Bridge (6) | DC Motors, General Purpose | Logic, PWM, SPI | Inductive, Capacitive, Resistive | MOSFET (Metal Oxide) | 750mOhm LS, 750mOhm HS | 6A | - | 3V ~ 5.5V | 4.5V ~ 32V | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Charge Pump, Slew Rate Controlled | Over Current, Over Voltage, UVLO | Surface Mount | 24-HTSSOP |
|
SIC620CD-T1-GE3IC HALF BRIDGE DRIVER 60A PPAK |
15,196 |
|
Datasheet |
VRPower® | PowerPAK® MLP55-31L | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 60A | - | 4.5V ~ 5.5V | 4.5V ~ 18V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | PowerPAK® MLP55-31L |
|
AOZ5279QI25V/60A SMART POWER STAGE |
11,840 |
|
Datasheet |
- | 39-PowerWFQFN Module | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | DrMOS | - | 60A | 150A | 3V ~ 25V | 3V ~ 25V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 39-QFN (5x6) |
|
|
SIC620ACD-T1-GE3IC HALF BRIDGE DRIVER 60A PPAK |
3,510 |
|
Datasheet |
VRPower® | PowerPAK® MLP55-31L | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 60A | - | 4.5V ~ 5.5V | 4.5V ~ 18V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | PowerPAK® MLP55-31L |
|
|
AOZ5317NQI30V 60A QFN5X5 DRMOS POWER STAGE |
5,620 |
|
Datasheet |
- | 31-PowerVFQFN Module | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | DrMOS | - | 60A | 120A | 4.5V ~ 5.5V | 2.5V ~ 25V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 31-QFN (5x5) |
|
VN5770AKPTR-EIC HALF BRIDGE DRIVER 8.5A 28SO |
3,688 |
|
Datasheet |
OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Not For New Designs | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive, Capacitive, Resistive | Power MOSFET | 160mOhm | 8.5A | - | 4.5V ~ 36V | 41V (Max) | -40°C ~ 150°C (TJ) | - | - | - | Current Limiting, ESD, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
|
|
AOZ5517QI-0230V 55A QFN5X5 DRMOS POWER STAGE |
11,666 |
|
Datasheet |
- | 31-PowerVFQFN Module | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | DrMOS | - | 60A | 120A | 4.5V ~ 5.5V | 4.5V ~ 25V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 31-QFN (5x5) |
|
TLE92104232QXXUMA1IC HALF BRIDGE DRIVER 48VQFN |
9,134 |
|
Datasheet |
- | 48-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose | Analog, Logic, PWM, SPI | - | - | 40Ohm | - | - | 3V ~ 5.5V | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Charge Pump | Short Circuit | Surface Mount | PG-VQFN-48-29 |
|
DRV8932PRGERIC HALF BRIDGE DRIVER 24VQFN |
5,670 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose, Solenoids, Stepper Motors | Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET | 450mOhm LS + HS | - | 1.5A | 4.5V ~ 33V | 4.5V ~ 33V | -40°C ~ 150°C (TJ) | - | - | Charge Pump | Over Current, Over Temperature, UVLO | Surface Mount | 24-VQFN (4x4) |
|
TLE94112ESXUMA1IC HALF BRIDGE DRIVER 24TSDSO |
22,546 |
|
Datasheet |
- | 24-TSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (12) | DC Motors, General Purpose | Logic, PWM, SPI | Inductive, Capacitive, Resistive | - | 1.3Ohm LS, 1.3Ohm HS | - | - | 3V ~ 5.5V | 3V ~ 5.5V | -40°C ~ 150°C (TJ) | - | - | Charge Pump | Current Limiting, Over Current, Over Temperature, Short Circuit | Surface Mount | PG-TSDSO-24 |
|
|
DRV8935PRGERIC HALF BRIDGE DRVR 2.5A 24VQFN |
5,706 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose, Solenoids, Stepper Motors | Analog, Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET | 200mOhm LS, 200mOhm HS | 2.5A | 2.5A | 4.5V ~ 33V | 4.5V ~ 33V | -40°C ~ 150°C (TJ) | - | - | Charge Pump | Over Current, Over Temperature, Short Circuit, UVLO | Surface Mount | 24-VQFN (4x4) |
|
DRV8932PPWPRIC HALF BRIDGE DRV 1.5A 28HTSSOP |
4,364 |
|
Datasheet |
- | 28-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose, Solenoids, Stepper Motors | Analog, Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET | 550mOhm LS, 550mOhm HS | 1.5A | 1.5A | 4.5V ~ 33V | 4.5V ~ 33V | -40°C ~ 150°C (TJ) | - | - | Charge Pump | Current Limiting, Over Current, Over Temperature, Short Circuit, UVLO | Surface Mount | 28-HTSSOP |
|
|
SIC621CD-T1-GE3IC HALF BRIDGE DRIVER 60A PPAK |
10,646 |
|
Datasheet |
VRPower® | PowerPAK® MLP55-31L | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | Logic, PWM | Inductive, Capacitive | Power MOSFET | - | 60A | - | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Shoot-Through, UVLO | Surface Mount | PowerPAK® MLP55-31L |
|
FAD6263M1XIC HALF BRIDGE DRIVER 3A 16SOIC |
9,706 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Half Bridge (2) | DC Motors, General Purpose | Logic | Capacitive and Resistive | Power MOSFET | - | 3A | 3.3A | 10V ~ 22V | 10V ~ 22V | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 16-SOIC |
|
VNH9013YTRIC HALF BRIDGE DRVR 40A 36PWRSSO |
3,944 |
|
Datasheet |
- | 36-PowerBFSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Half Bridge (2) | DC Motors, General Purpose | - | Inductive, Resistive | MOSFET (Metal Oxide) | 7.8mOhm LS, 6mOhm HS | 40A | - | 80V | 80V | 175°C (TJ) | Automotive | AEC-Q100 | - | - | Surface Mount | PowerSSO-36 TP |
|
DRV8935PPWPRIC HALF BRIDGE DRV 2.5A 28HTSSOP |
2,844 |
|
Datasheet |
- | 28-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose, Solenoids, Stepper Motors | Analog, Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET | 200mOhm LS, 200mOhm HS | 2.5A | 2.5A | 4.5V ~ 33V | 4.5V ~ 33V | -40°C ~ 150°C (TJ) | - | - | Charge Pump | Over Current, Over Temperature, Short Circuit, UVLO | Surface Mount | 28-HTSSOP |
|
LCS700HGIC HALF BRIDGE DRIVER ESIP16J |
714 |
|
Datasheet |
HiperLCS™ | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads | Tube | Active | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | 1.53Ohm | - | 5.2A | 11.4V ~ 15V | 11.4V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Auto Restart, Slew Rate Controlled | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Through Hole | eSIP-16J |
|

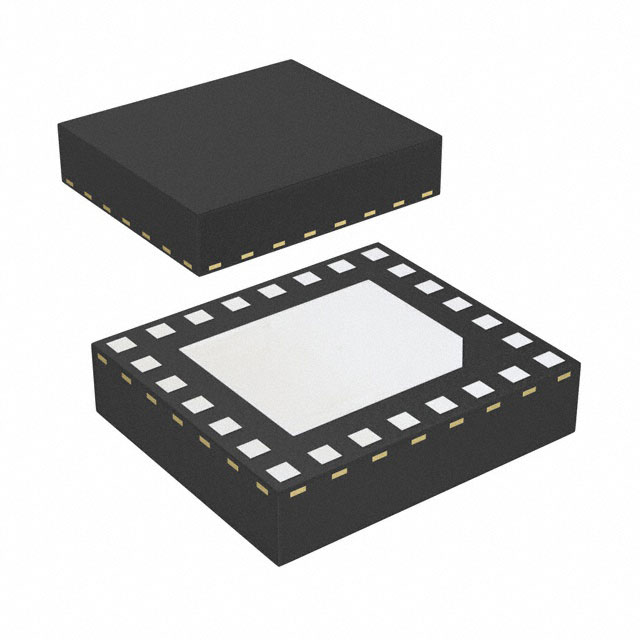

IRSM808-204MHIC HALF BRIDGE DRIVER 20A 31PQFN |
4,932 |
|
Datasheet |
