Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VN771K-EIC HALF BRIDGE DRIVER 9A 28SO |
6,222 |
|
Datasheet |
OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive | Power MOSFET | 95mOhm (Max) | 9A | - | 5.5V ~ 36V | 5.5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
|
L6207NIC HALF BRIDG DRV 2.8A 24PWRDIP |
4,048 |
|
Datasheet |
- | 24-PowerDIP (0.300", 7.62mm) | Tube | Obsolete | Half Bridge (4) | DC Motors, Stepper Motors, Voltage Regulators | Logic | Inductive | DMOS | 300mOhm | 2.8A | 5.6A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Through Hole | 24-PowerDIP |
|
SIC620ARCD-T1-GE3IC HALF BRIDGE DRIVER 60A PPAK |
7,570 |
|
Datasheet |
VRPower® | PowerPAK® MLP55-31L | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 60A | - | 4.5V ~ 5.5V | 4.5V ~ 18V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | UVLO | Surface Mount | PowerPAK® MLP55-31L |
|
BA6897FP-E2IC HALF BRIDGE DRVR 50MA 28HSOP |
7,714 |
|
Datasheet |
- | 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (8) | DC Motors, General Purpose, Voltage Regulators | Logic | Inductive | Bipolar | - | 50mA | - | 6V ~ 9V | 6V ~ 9V | -35°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 28-HSOP-M |
|
DRV8952PWPR50-V FOUR-CHANNEL HALF-BRIDGE DR |
5,858 |
|
Datasheet |
- | 28-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose | PWM | Inductive, Capacitive, Resistive | NMOS | 55mOhm LS, 58mOhm HS | 4A | 4A | 3.05V ~ 5.5V | 4.5V ~ 55V | -40°C ~ 125°C (TA) | - | - | Charge Pump | Current Limiting, Over Temperature, UVLO | Surface Mount | 28-HTSSOP |
|
HIP4086AABZTIC HALF BRIDGE DRIVER 24SOIC |
4,152 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 500mA | 7V ~ 15V | 7V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | - | Surface Mount | 24-SOIC |
|

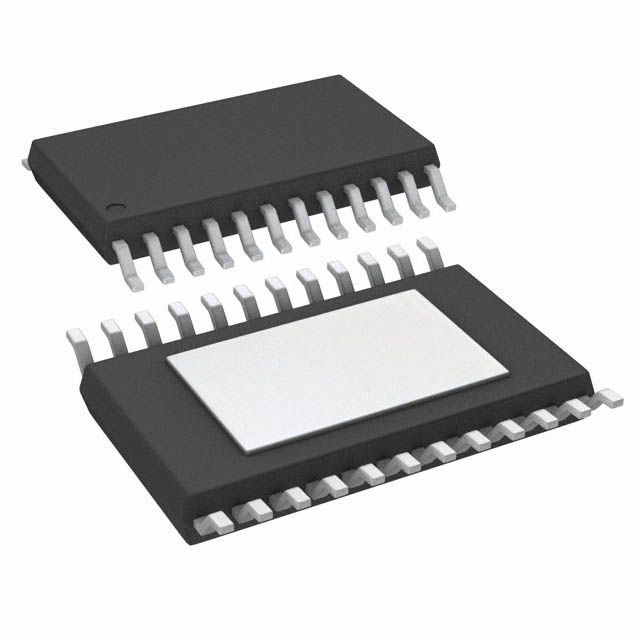

TLE94110ELXUMA1IC HALF BRIDGE DRVR 500MA 24SSOP |
9,184 |
|
Datasheet |
- | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (10) | AC Motors, DC Motors, General Purpose | SPI | Inductive | Power MOSFET | 850mOhm LS, 850mOhm HS | 500mA | 2A | 3V ~ 5.5V | 5.5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, Short Circuit, UVLO | Surface Mount | PG-SSOP-24-4 |
|
|
MASTERGAN5TRIC HALF BRIDGE DRIVER 4A 31QFN |
7,464 |
|
- |
- | 31-VQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | DC-DC Converters | Logic | Inductive, Capacitive | DMOS | 77Ohm LS + HS | 4A | 7A | 3.3V ~ 15V | 600V (Max) | -40°C ~ 125°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 31-QFN (9x9) |
|
|
IR53HD420-P2IC HALF BRIDGE DRIVER 850MA 9SIP |
7,768 |
|
Datasheet |
- | 9-SIP, 7 Leads | Tube | Obsolete | Half Bridge | AC Motors | On/Off | Inductive | Power MOSFET | 3Ohm | 850mA | - | 10V ~ 15.6V | 500V (Max) | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Internal Oscillator | UVLO | Through Hole | 9-SIP, 7 Leads |
.jpg)
|
CSD96370Q5MIC HALF BRIDGE DRIVER 40A 22LSON |
6,452 |
|
Datasheet |
NexFET™ | 22-PowerLFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 40A | 60A | 4.5V ~ 5.5V | 3.3V ~ 13.2V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 22-LSON-CLIP (6x5) |
|
E-L298NIC HALF BRIDGE DRVR 15MULTIWATT |
6,958 |
|
- |
- | Multiwatt-15 (Vertical, Bent and Staggered Leads) | Tube | Obsolete | Half Bridge (4) | DC Motors, Relays, Solenoids, Stepper Motors | Logic | Inductive | Bipolar | - | - | 2A | 4.5V ~ 7V | 4.8V ~ 46V | -40°C ~ 150°C (TJ) | - | - | - | Current Limiting, Over Temperature | Through Hole | 15-Multiwatt |
|
FAN7093IC HALF BRIDGE DRVR 46A TO263-7 |
5,434 |
|
Datasheet |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Obsolete | Half Bridge | DC Motors, General Purpose | Logic | Inductive | DMOS | 18.2mOhm LS (Max), 12.3mOhm HS (Max) | 46A | 88A | 7V ~ 18V | 7V ~ 18V | -40°C ~ 150°C (TJ) | - | - | Latch Function, Slew Rate Controlled, Status Flag | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | TO-263-7 |
|
MP6610GJ-PIC HALF BRIDGE DRIVER 3A TSOT23 |
4,298 |
|
- |
- | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose, Solenoids | Analog, Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET | 120mOhm LS, 100mOhm HS | 3A | 3A | 4V ~ 45V | 4V ~ 45V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Charge Pump | Over Current, Over Temperature, Over Voltage, UVLO | Surface Mount | TSOT-23-8 |
|
|
VN771K13TRIC HALF BRIDGE DRIVER 9A 28SO |
3,188 |
|
Datasheet |
OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive | Power MOSFET | 95mOhm (Max) | 9A | - | 5.5V ~ 36V | 5.5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
|
|
MASTERGAN4LLinear IC's |
9,044 |
|
Datasheet |
- | 31-VQFN Exposed Pad | Tray | Active | Half Bridge | General Purpose | Logic | Inductive, Capacitive, Resistive | MOSFET (Metal Oxide) | 225mOhm | 6.5A | 12A | 4.75V ~ 9.5V | 520V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Over Temperature, UVLO | Surface Mount | 31-QFN (9x9) |
|
|
BA6896FP-E2IC HALF BRIDGE DRVR 50MA 28HSOP |
9,656 |
|
Datasheet |
- | 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (8) | DC Motors, General Purpose, Voltage Regulators | Logic | Inductive | Bipolar | - | 50mA | - | 6V ~ 14V | 6V ~ 14V | -35°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 28-HSOP-M |
|
L9959U-TR-DIC HALF BRIDGE DRVR 3A PWRSSO36 |
3,154 |
|
Datasheet |
- | 36-PowerFSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Half Bridge (2) | General Purpose | SPI | Inductive, Capacitive, Resistive | PMOS | - | 3A | - | 4.5V ~ 5.5V | 5V ~ 28V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, Short Circuit | Surface Mount | PowerSSO-36 EPD |
|
|
MASTERGAN3IC HALF BRIDGE DRV 4A/6.5A 31QFN |
8,800 |
|
- |
- | 31-VQFN Exposed Pad | Bulk | Active | Half Bridge | DC-DC Converters | Logic | Inductive, Capacitive | DMOS | 225mOhm LS, 450mOhm HS | 4A, 6.5A | 7A, 12A | 3.3V ~ 15V | 600V (Max) | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Over Voltage, Reverse Current, UVLO | Surface Mount | 31-QFN (9x9) |
|
|
VN771KIC HALF BRIDGE DRIVER 9A 28SO |
8,538 |
|
Datasheet |
OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive | Power MOSFET | 95mOhm (Max) | 9A | - | 5.5V ~ 36V | 5.5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
|
|
CSD96371Q5MIC HALF BRIDGE DRIVER 50A 22LSON |
6,288 |
|
Datasheet |
NexFET™ | 22-PowerLFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 50A | 75A | 4.5V ~ 5.5V | 3.3V ~ 13.2V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 22-LSON-CLIP (6x5) |
