DC DC Switching Controllers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Function | Output Configuration | Topology | Number of Outputs | Output Phases | Voltage - Supply (Vcc/Vdd) | Frequency - Switching | Duty Cycle (Max) | Synchronous Rectifier | Clock Sync | Serial Interfaces | Control Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC3785EUF-1#TRPBFIC REG CTRLR BUCK-BOOST 24QFN |
4,216 |
|
Datasheet |
- | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 2 | 1 | 2.7V ~ 10V | 100kHz ~ 1MHz | 99% | Yes | No | - | Current Limit, Enable, Soft Start | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-QFN (4x4) |
|
LTC3813EG#PBFIC REG CTRLR BOOST 28SSOP |
426 |
|
Datasheet |
- | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Transistor Driver | Step-Up | Positive | Boost | 1 | 1 | 6.35V ~ 14V | - | - | Yes | Yes | - | Enable, Power Good, Soft Start | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SSOP |
|
|
LTC3784EGN#PBFIC REG CTRLR BOOST 28SSOP |
1,006 |
|
Datasheet |
PolyPhase® | 28-SSOP (0.154", 3.90mm Width) | Tube | Active | Transistor Driver | Step-Up | Positive | Boost | 2 | 2 | 4.5V ~ 60V | 105kHz ~ 760kHz | 96% | Yes | No | - | Current Limit, Enable, Frequency Control, Power Good, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-SSOP |
|
LM5170PHPTBI DIRECTIONAL 48V TO 12V CURREN |
480 |
|
Datasheet |
- | 48-PowerTQFP | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 1 | 2 | 6V ~ 85V | 50kHz ~ 500kHz | - | - | Yes | - | Enable, Frequency Control, Power Good, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 48-HTQFP (7x7) |
|

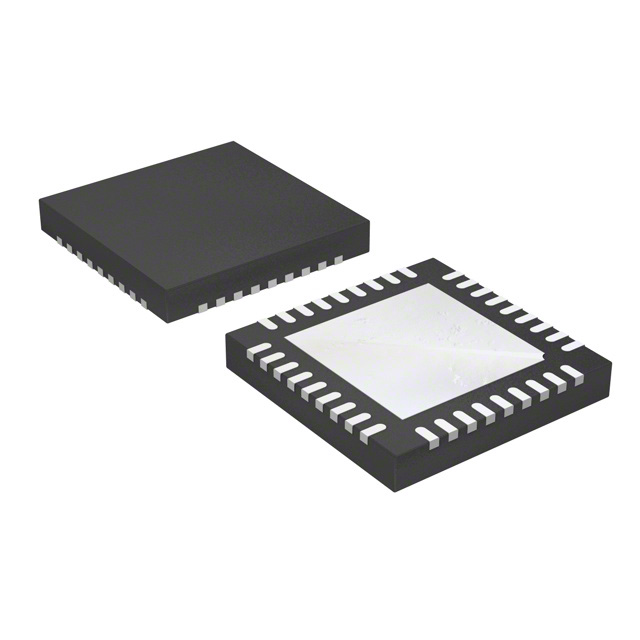

MAX20751EKX+TIC REG CTRLR BUCK PMBUS 36QFN |
3,466 |
|
- |
- | 36-VFQFN Exposed Pad | Tape & Reel (TR) | Active | PWM Signal | Step-Down | Positive | Buck | 4 | 4 | 1.71V ~ 3.63V | 300kHz ~ 800kHz | - | No | No | PMBus | Phase Control, Power Good, Ramp | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 36-QFN (6x6) |
|
LT3753HFE#PBFIC REG CTRLR FWRD CONV 38TSSOP |
9,538 |
|
Datasheet |
- | 38-TFSOP (0.173", 4.40mm Width) 31 Leads, Exposed Pad | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Forward Converter | 1 | 1 | 8.5V ~ 100V | 100kHz ~ 500kHz | - | Yes | Yes | - | Frequency Control, Soft Start | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 38-TSSOP-EP |
|
LT3840EFE#TRPBFIC REG CTRLR BUCK 28TSSOP |
6,216 |
|
Datasheet |
- | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive or Negative | Buck | 1 | 1 | 2.5V ~ 60V | 50kHz ~ 1MHz | 99% | Yes | Yes | - | Enable, Frequency Control, Power Good, Soft Start, Tracking | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-TSSOP-EP |
|
|
LT3840EFE#PBFIC REG CTRLR BUCK 28TSSOP |
1,948 |
|
Datasheet |
- | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Transistor Driver | Step-Down | Positive or Negative | Buck | 1 | 1 | 2.5V ~ 60V | 50kHz ~ 1MHz | 99% | Yes | Yes | - | Enable, Frequency Control, Power Good, Soft Start, Tracking | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-TSSOP-EP |
|
LTC3736EGN-2#PBFIC REG CTRLR BUCK 24SSOP |
652 |
|
Datasheet |
- | 24-SSOP (0.154", 3.90mm Width) | Tube | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 2.75V ~ 9.8V | 300kHz ~ 750kHz | 100% | Yes | Yes | - | Current Limit, Enable, Power Good, Soft Start, Tracking | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-SSOP |
|
LTC3830EGN#PBFIC REG CTRLR BUCK 16SSOP |
210 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 3V ~ 8V | 200kHz | 95% | Yes | No | - | Current Limit, Enable, Frequency Control, Soft Start | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SSOP |
|
LTC7801HUFD#PBFIC REG CTRLR SYNC BUCK 24QFN |
1,138 |
|
Datasheet |
- | 24-WFQFN Exposed Pad | Tube | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4V ~ 140V | 50kHz ~ 900kHz | 100% | No | No | - | Current Limit, Power Good, Soft Start, Tracking | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-QFN (4x5) |
|
LTC3862IFE#PBFIC REG CTRLR BOOST/SEPIC 24TSSOP |
9,136 |
|
Datasheet |
- | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, SEPIC | 2 | 2 | 4V ~ 36V | 75kHz ~ 500kHz | 96% | No | Yes | - | Enable, Frequency Control, Phase Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 24-TSSOP |
|
LT3844IFE#PBFIC REG CTRLR MULT TOP 16TSSOP |
224 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Transistor Driver | Step-Up, Step-Down, Step-Up/Step-Down | Positive or Negative | Buck, Boost, SEPIC | 1 | 1 | 4V ~ 60V | 300kHz | - | No | Yes | - | Enable, Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TSSOP-EP |
|
|
LTC3858EGN-1#PBFIC REG CTRLR BUCK 28SSOP |
3,382 |
|
Datasheet |
- | 28-SSOP (0.154", 3.90mm Width) | Tube | Active | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 4V ~ 38V | 105kHz ~ 835kHz, 350kHz ~ 535kHz | 99.4% | Yes | No | - | Enable, Frequency Control, Power Good, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-SSOP |
|
|
LTC3785IUF#PBFIC REG CTRLR BUCK-BOOST 24QFN |
4,560 |
|
Datasheet |
- | 24-WFQFN Exposed Pad | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 2 | 1 | 2.7V ~ 10V | 100kHz ~ 1MHz | 99% | Yes | No | - | Current Limit, Enable, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 24-QFN (4x4) |
|
|
LTC7840HFE#PBFDUAL PHASE/OUTPUT NON-SYNCH BOOS |
2,922 |
|
Datasheet |
- | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | PWM | Step-Up | Positive | Boost | 2 | 2 | 5.5V ~ 60V | 50kHz ~ 425kHz | 96% | No | Yes | - | Current Limit, Enable, Frequency Control, Power Good | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-TSSOP-EP |
|
LTC7841EUHE#PBFPOLYPHSYNC BOOST CNTR |
4,858 |
|
Datasheet |
- | 36-WFQFN Exposed Pad | Tube | Active | Transistor Driver | Step-Up | Positive | Boost | 1 | 12 | 4.5V ~ 60V | 75kHz ~ 850kHz | 96% | Yes | Yes | I2C, PMBus, SMBus | Current Limit, Power Good | -40°C ~ 125°C | - | - | Surface Mount | 36-QFN (5x6) |
|
LTC7871ILWE#PBF6-PHASE BIDIRECTIONAL BUCK/BOOST |
286 |
|
Datasheet |
PolyPhase® | 64-LQFP Exposed Pad | Tray | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 6 | 6 | 6V ~ 100V | 60kHz ~ 750kHz | 98% | Yes | Yes | SPI | Enable, Power Good, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 64-LQFP-EP (10x10) |
|
|
LTC3703IGN-5#TRPBFIC REG CTRLR BUCK 16SSOP |
14,226 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.1V ~ 15V | 100kHz ~ 600kHz | 93% | Yes | Yes | - | Current Limit, Enable, Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-SSOP |
|
LTC3883IUH-1#PBFIC REG CTRLR BUCK PMBUS 32QFN |
1,082 |
|
Datasheet |
PolyPhase® | 32-WFQFN Exposed Pad | Tube | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 24V | - | - | Yes | Yes | I2C, PMBus | Enable, Frequency Control, Phase Control, Power Good | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 32-QFN (5x5) |
