DC DC Switching Controllers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Function | Output Configuration | Topology | Number of Outputs | Output Phases | Voltage - Supply (Vcc/Vdd) | Frequency - Switching | Duty Cycle (Max) | Synchronous Rectifier | Clock Sync | Serial Interfaces | Control Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCC1800JLOW-POWER BICMOS CURRENT-MODE PW |
6,942 |
|
- |
UCC280x | 8-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter | 1 | 1 | 6.9V ~ 11V | Up to 1MHz | 100% | No | Yes | - | Frequency Control, Soft Start | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CDIP |
|
UC2525AJREGULATING PULSE WIDTH MODULATOR |
3,168 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up, Step-Down, Step-Up/Step-Down | Positive | Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull | 2 | 1 | 8V ~ 35V | 100Hz ~ 500kHz | 49% | Yes | Yes | - | Dead Time Control, Frequency Control, Ramp, Soft Start | -25°C ~ 85°C (TA) | - | - | Through Hole | 16-CDIP |
|

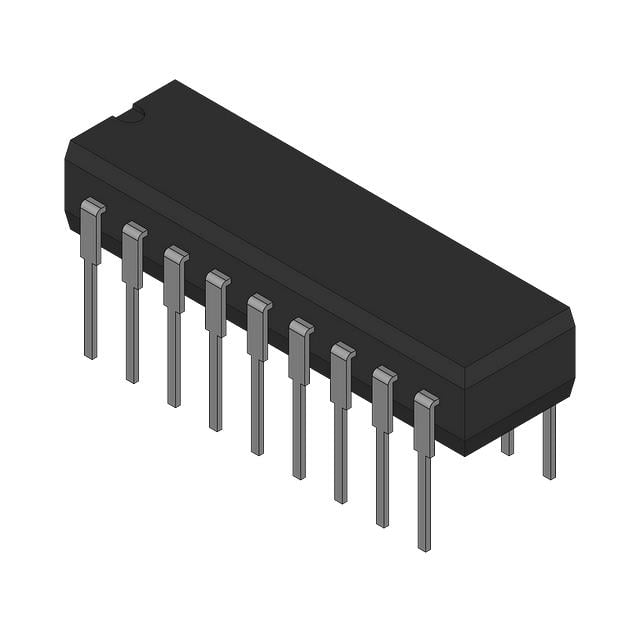

UC2526AJREGULATING PULSE WIDTH MODULATOR |
9,018 |
|
Datasheet |
- | 18-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | 2 | 1 | 4.5V ~ 35V, 8V ~ 35V | 1Hz ~ 400kHz | 49% | Yes | Yes | - | Enable, Frequency Control, Reset, Soft Start | -25°C ~ 85°C (TA) | - | - | Through Hole | 18-CDIP |
|
TL5001AMFKBPWM CONTROLLER WITH WIDE INPUT R |
9,584 |
|
Datasheet |
- | 20-CLCC | Tube | Active | Transistor Driver | Step-Up, Step-Down, Step-Up/Step-Down | Positive | Boost, Buck, Flyback | 1 | 1 | 3.6V ~ 40V | 20kHz ~ 500kHz | 100% | No | No | - | Dead Time Control, Frequency Control, Ramp, Soft Start | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCCC (8.89x8.89) |
|
UC2524AJADVANCED REGULATING PULSE WIDTH |
2,866 |
|
- |
- | 16-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | 2 | 1 | 8V ~ 40V | 500kHz | 45% | No | No | - | Frequency Control | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
UCC1804J883BLOW-POWER BICMOS CURRENT-MODE PW |
7,580 |
|
Datasheet |
UCC280x | 8-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter | 1 | 1 | 8.3V ~ 12V | 46kHz | 49% | No | No | - | Current Limit, Dead Time Control, Soft Start | -55°C ~ 125°C | - | - | Through Hole | 8-CDIP |
|
|
UCC1800J883BLOW-POWER BICMOS CURRENT-MODE PW |
3,302 |
|
Datasheet |
UCC280x | 8-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter | 1 | 1 | 6.9V ~ 11V | Up to 1MHz | 100% | No | Yes | - | Frequency Control, Soft Start | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CDIP |
|
|
LM5020MMX-1/S1PROTOTYPE |
7,768 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Bulk | Active | Transistor Driver | Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter, SEPIC | 1 | 1 | 8V ~ 15V | 200kHz ~ 630kHz | 80% | No | Yes | - | Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-VSSOP |
|
|
UCC1802JLOW-POWER BICMOS CURRENT-MODE PW |
2,940 |
|
Datasheet |
UCC280x | 8-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter | 1 | 1 | 8.3V ~ 12V | Up to 1MHz | 99% | No | No | - | Current Limit, Dead Time Control, Soft Start | -55°C ~ 125°C | - | - | Through Hole | 8-CDIP |
|
|
UCC1803J883BLOW-POWER BICMOS CURRENT-MODE PW |
5,392 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Boost, Buck, Flyback, Forward Converter | 1 | 1 | 3.6V ~ 11V | Up to 1MHz | 99% | No | No | - | Current Limit, Dead Time Control, Soft Start | -55°C ~ 125°C | - | - | Through Hole | 8-CDIP |
|
|
TL5001AMJGBPWM CONTROLLER WITH WIDE INPUT R |
8,140 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up, Step-Down, Step-Up/Step-Down | Positive | Boost, Buck, Flyback | 1 | 1 | 3.6V ~ 40V | 20kHz ~ 500kHz | 100% | No | No | - | Dead Time Control, Frequency Control, Ramp, Soft Start | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CDIP |
|
|
8551502VAREGULATING PULSE WIDTH MODULATOR |
6,526 |
|
Datasheet |
- | 18-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive and Negative | Boost, Buck, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull | 2 | 1 | 7V ~ 35V | 1Hz ~ 600kHz | 49% | Yes | Yes | - | Enable, Frequency Control, Reset, Soft Start | -55°C ~ 125°C (TA) | - | - | Through Hole | 18-CDIP |
|
|
85515022AREGULATING PULSE WIDTH MODULATOR |
6,212 |
|
Datasheet |
- | 20-CLCC | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive and Negative | Boost, Buck, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull | 2 | 1 | 7V ~ 35V | 1Hz ~ 600kHz | 49% | Yes | Yes | - | Enable, Frequency Control, Reset, Soft Start | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCCC (8.89x8.89) |
|
UCC1800L883BLOW-POWER BICMOS CURRENT-MODE PW |
9,484 |
|
Datasheet |
UCC280x | 20-CLCC | Tube | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter | 1 | 1 | 6.9V ~ 11V | Up to 1MHz | 100% | No | Yes | - | Frequency Control, Soft Start | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCCC (8.89x8.89) |
|
|
LM3485MMX/S7001693PROTOTYPE |
2,788 |
|
- |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Obsolete | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 35V | 50kHz ~ 1MHz | 100% | No | No | - | Enable | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-VSSOP |
|
|
LM51561QDSSTQ1PROTOTYPE |
7,484 |
|
Datasheet |
- | 12-WFDFN Exposed Pad | Bulk | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, SEPIC | 1 | 1 | 3.5V ~ 60V | 100kHz ~ 2.2MHz | 93% | No | Yes | - | Current Limit, Enable, Frequency Control, Power Good, Soft Start | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 12-WSON (3x2) |
|
|
UCC1801JLOW-POWER BICMOS CURRENT-MODE PW |
3,060 |
|
Datasheet |
UCC280x | 8-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter | 1 | 1 | 7.4V ~ 12V | Up to 1MHz | 49% | No | No | - | Current Limit, Dead Time Control, Soft Start | -55°C ~ 125°C | - | - | Through Hole | 8-CDIP |
|
|
SG3524NSPROTOTYPE |
6,846 |
|
- |
- | 16-SOIC (0.209", 5.30mm Width) | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Flyback, Push-Pull | 2 | 1 | 8V ~ 40V | 450kHz | 45% | No | No | - | Current Limit, Enable, Frequency Control | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SO |
|
|
ASP1405I-00IC GATE |
7,056 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LM5177DCPIC REG |
4,740 |
|
Datasheet |
- | 38-PowerTFSOP (0.173", 4.40mm Width) | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Buck-Boost | 1 | 1 | 3.5V ~ 78V | 100kHz ~ 2MHz | 100% | No | Yes | - | Dead Time Control, Enable, Power Good, Power On Reset, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 38-HTSSOP |
