DC DC Switching Controllers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Function | Output Configuration | Topology | Number of Outputs | Output Phases | Voltage - Supply (Vcc/Vdd) | Frequency - Switching | Duty Cycle (Max) | Synchronous Rectifier | Clock Sync | Serial Interfaces | Control Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LV5068V-MPB-HIC REG CTRLR BUCK 16SSOP |
2,392 |
|
- |
- | 16-LSSOP (0.173", 4.40mm Width) | Tray | Obsolete | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 40V | 330kHz | 95% | No | Yes | - | Current Limit, Enable, Frequency Control, Power Good, Soft Start | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SSOP |
|
LM3524DNIC REG CTRLR BUCK/BOOST 16DIP |
3,656 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Transistor Driver | Step-Up, Step-Down | Positive or Negative | Buck, Boost | 1 | 1 | 8V ~ 40V | - | 49% | No | No | - | Current Limit, Enable, Frequency Control | 0°C ~ 125°C (TJ) | - | - | Through Hole | 16-PDIP |
|
LM5041MTCXIC REG CTRLR MULT TOP 16TSSOP |
9,104 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Transistor Driver | Step-Up/Step-Down | Positive | Half-Bridge, Push-Pull | 1 | 1 | 15V ~ 90V | 200kHz, 600kHz | - | Yes | Yes | - | Dead Time Control, Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TSSOP |
|
ISL8126IRZ-T7AIC REG CTRLR BUCK 32QFN |
8,550 |
|
Datasheet |
- | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Transistor Driver | Step-Down | Positive | Buck | 2 | 2 | 3V ~ 5.6V | 150kHz ~ 1.5MHz | 90% | Yes | Yes | - | Current Limit, Enable, Frequency Control, Power Good | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-QFN (5x5) |
|

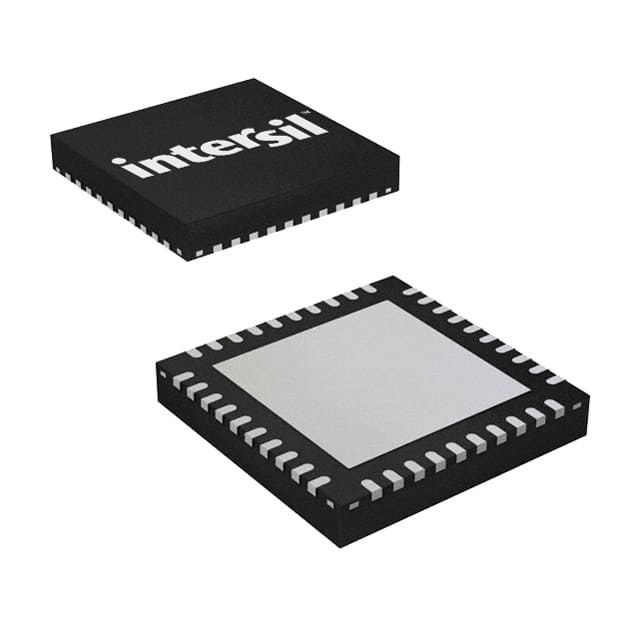

ISL9444CRZIC REG CTRLR BUCK 32QFN |
5,444 |
|
Datasheet |
- | 40-VFQFN Exposed Pad | Tube | Obsolete | Transistor Driver | Step-Down | Positive | Buck | 3 | 2 | 4.5V ~ 28V | 200kHz ~ 1.2MHz | - | Yes | Yes | - | Enable, Frequency Control, Phase Control, Power Fail, Power Good, Soft Start, Tracking | 0°C ~ 85°C (TA) | - | - | Surface Mount | 40-QFN (5x5) |
|
ZL2005ALNFTIC REG CTRLR BUCK PMBUS 36QFN |
7,574 |
|
Datasheet |
Digital-DC™ | 36-VFQFN Exposed Pad | Tube | Obsolete | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 3V ~ 5.5V | 200kHz ~ 2MHz | 95% | Yes | Yes | I2C, PMBus, SMBus | Current Limit, Enable, Power Good, Soft Start, Tracking | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-QFN (6x6) |
|

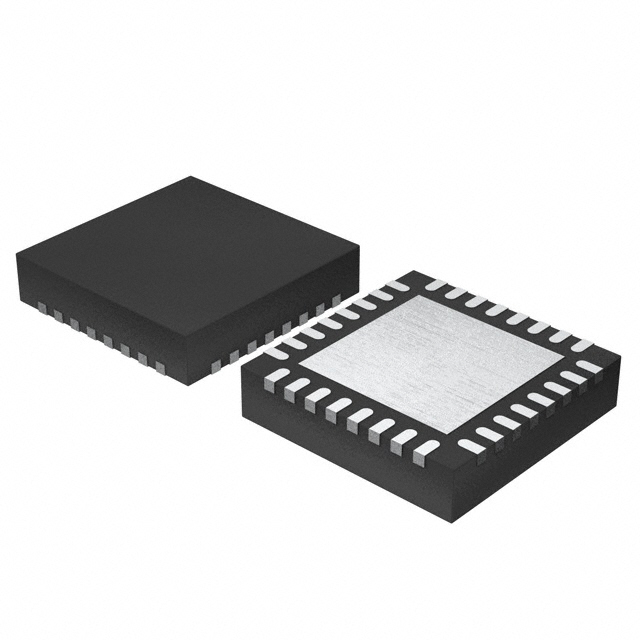

ZL8101ALAFTKIC REG CTRLR BUCK PMBUS 32QFN |
3,532 |
|
Datasheet |
Digital-DC™ | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 14V | 200kHz ~ 1.4MHz | 95% | Yes | Yes | I2C, PMBus, SMBus | Enable, Power Good, Soft Start, Tracking | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-QFN (5x5) |
|
|
ISL9444CRZ-TIC REG CTRLR BUCK 32QFN |
8,944 |
|
Datasheet |
- | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Transistor Driver | Step-Down | Positive | Buck | 3 | 2 | 4.5V ~ 28V | 200kHz ~ 1.2MHz | - | Yes | Yes | - | Enable, Frequency Control, Phase Control, Power Fail, Power Good, Soft Start, Tracking | 0°C ~ 85°C (TA) | - | - | Surface Mount | 40-QFN (5x5) |
|
|
ZL2006ALNFIC REG CTRLR BUCK PMBUS 36QFN |
8,124 |
|
Datasheet |
Digital-DC™ | 36-VFQFN Exposed Pad | Tube | Obsolete | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 3V ~ 5.5V | 200kHz ~ 1.4MHz | 95% | Yes | Yes | I2C, PMBus, SMBus | Current Limit, Enable, Soft Start, Tracking | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-QFN (6x6) |
|
|
ZL2006ALNFTIC REG CTRLR BUCK PMBUS 36QFN |
3,788 |
|
Datasheet |
Digital-DC™ | 36-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 3V ~ 5.5V | 200kHz ~ 1.4MHz | 95% | Yes | Yes | I2C, PMBus, SMBus | Current Limit, Enable, Soft Start, Tracking | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-QFN (6x6) |
|
ISL6522CBZ-TR5190IC REG CTRLR BUCK 14SOIC |
8,568 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 10.8V ~ 13.2V | 200kHz | 100% | Yes | No | - | Enable, Frequency Control, Phase Control, Soft Start | 0°C ~ 70°C (TA) | - | - | Surface Mount | 14-SOIC |
|
|
ZL2006ALNFT1IC REG CTRLR BUCK PMBUS 36QFN |
5,476 |
|
Datasheet |
Digital-DC™ | 36-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 3V ~ 5.5V | 200kHz ~ 1.4MHz | 95% | Yes | Yes | I2C, PMBus, SMBus | Current Limit, Enable, Soft Start, Tracking | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-QFN (6x6) |
|
|
ZL8101ALAFTIC REG CTRLR BUCK PMBUS 32QFN |
7,682 |
|
Datasheet |
Digital-DC™ | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 14V | 200kHz ~ 1.4MHz | 95% | Yes | Yes | I2C, PMBus, SMBus | Enable, Power Good, Soft Start, Tracking | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-QFN (5x5) |
|
SG1524J-883BIC REG CTRLR MULT TOP 16JDIP |
3,976 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback, Push-Pull | 2 | 1 | 8V ~ 40V | 100kHz ~ 300kHz | 49% | Yes | No | - | Enable | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | 16-CERDIP |
|
SG1525AJ-883BIC REG CTRLR PUSH-PULL 16JDIP |
2,840 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Push-Pull | 2 | 1 | 8V ~ 35V | 100Hz ~ 350kHz | 49% | Yes | Yes | - | Enable, Frequency Control, Soft Start | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
SG1525AJ-DESCIC REG CTRLR PUSH-PULL 16JDIP |
8,268 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Push-Pull | 2 | 1 | 8V ~ 35V | 100Hz ~ 350kHz | 49% | Yes | Yes | - | Enable, Frequency Control, Soft Start | -55°C ~ 125°C (TA) | Military | MIL-STD-883B | Through Hole | 16-CERDIP |
|

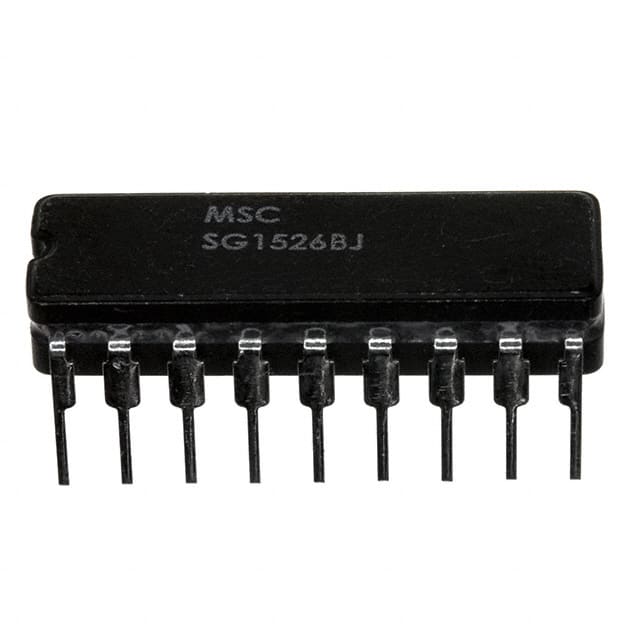

SG1526BJ-883BIC REG CTRLR BUCK/FLYBACK 18JDIP |
6,824 |
|
Datasheet |
- | 18-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 8V ~ 35V | 1Hz ~ 500kHz | 49% | Yes | No | - | Enable, Reset, Soft Start | -55°C ~ 125°C (TJ) | Military | MIL-STD-883 | Through Hole | 18-CERDIP |
|
|
SG1526BJ-DESCIC REG CTRLR BUCK/FLYBACK 18JDIP |
7,318 |
|
Datasheet |
- | 18-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 8V ~ 35V | 1Hz ~ 500kHz | 49% | Yes | No | - | Enable, Reset, Soft Start | -55°C ~ 125°C (TJ) | Military | MIL-STD-883 | Through Hole | 18-CERDIP |
|
SG1526J-883BIC REG CTRLR BUCK/FLYBACK 18JDIP |
6,120 |
|
Datasheet |
- | 18-DIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 8V ~ 35V | 1Hz ~ 350kHz | 49% | Yes | No | - | Enable, Reset, Soft Start | -55°C ~ 125°C (TA) | Military | MIL-STD-883B | Through Hole | - |
|
SG1843Y-883BIC REG CTRLR BUCK 8CDIP |
6,650 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 7.6V ~ 30V | 1Hz ~ 500kHz | 95% | No | No | - | - | -55°C ~ 125°C (TA) | Military | MIL-STD-883B | Through Hole | 8-CDIP |
