DC DC Switching Controllers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Function | Output Configuration | Topology | Number of Outputs | Output Phases | Voltage - Supply (Vcc/Vdd) | Frequency - Switching | Duty Cycle (Max) | Synchronous Rectifier | Clock Sync | Serial Interfaces | Control Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM25148QRGYRQ1AUTOMOTIVE 42-V SYNCHRONOUS BUCK |
1,922 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 3.5V ~ 42V | 100kHz ~ 2.2MHz | 100% | Yes | Yes | - | Current Limit, Dead Time Control, Frequency Control, Power Good, Ramp, Soft Start, Sync | -40°C ~ 125°C (TA) | - | - | Surface Mount | 24-VQFN (5.5x3.5) |
|
LM25088MHX-2/NOPBIC REG CTRLR BUCK 16TSSOP |
8,404 |
|
Datasheet |
- | 16-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 42V | 50kHz ~ 1MHz | - | No | Yes | - | Enable, Frequency Control, Ramp, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-HTSSOP |
|
UC2526ADWTRIC REG CTRLR MULT TOP 18SOIC |
740 |
|
Datasheet |
- | 18-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | 2 | 1 | 7V ~ 35V | 1Hz ~ 600kHz | 49% | Yes | Yes | - | Enable, Frequency Control, Reset, Soft Start | -25°C ~ 85°C (TA) | - | - | Surface Mount | 18-SOIC |
|
LM27403SQ/NOPBIC REG CTRLR BUCK 24WQFN |
2,510 |
|
Datasheet |
- | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 3V ~ 20V | 200kHz ~ 1.2MHz | 93% | Yes | Yes | - | Enable, Frequency Control, Power Good, Soft Start, Tracking | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 24-WQFN (4x4) |
|
HV9123NG-G-M901IC REG CTRLR FLYBACK 16SOIC |
6,876 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Flyback | 1 | 1 | 10V ~ 450V | 3MHz | 97% | No | No | - | Enable, Frequency Control, Reset | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
TPS40210DGQIC REG CTRLR MULT TOP 10MSOP |
9,744 |
|
Datasheet |
- | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, SEPIC | 1 | 1 | 4.5V ~ 52V | 35kHz ~ 1MHz | - | No | Yes | - | Enable, Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-HVSSOP |
|
TPS40210DRCTIC REG CTRLR MULT TOPOLOGY 10SON |
974 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, SEPIC | 1 | 1 | 4.5V ~ 52V | 35kHz ~ 1MHz | - | No | Yes | - | Enable, Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-VSON (3x3) |
|

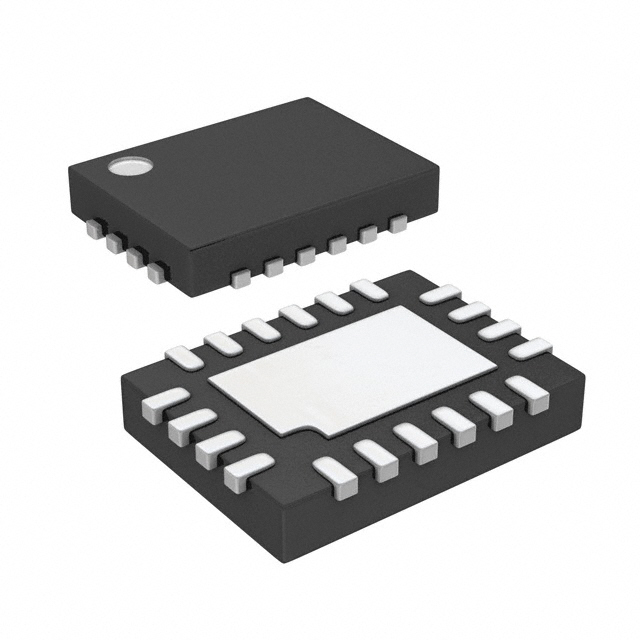

MP9928GL-ZIC REG CTRLR BUCK 20QFN |
32,184 |
|
Datasheet |
- | 20-TFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4V ~ 60V | 100kHz ~ 1MHz | 99.5% | Yes | Yes | - | Enable, Phase Control, Power Good, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-QFN (3x4) |
|
MIC3809YM-TRIC REG CTRLR MULT TOPOLOGY 8SOIC |
4,118 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Full-Bridge, Half-Bridge, Push-Pull | 1 | 1 | 4.1V ~ 14V | 200kHz | 49% | No | No | - | Frequency Control | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LM5152QRGRRQ1AUTOMOTIVE 2.2 MHZ WIDE VIN LOW |
15,474 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up | Positive | Boost | 1 | 1 | 0.8V ~ 42V | 100kHz ~ 2.2MHz | 80%, 94% | Yes | Yes | - | Dead Time Control, Enable, Frequency Control, Ramp, Soft Start, Tracking | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 20-VQFN (3.5x3.5) |
|
UCC2893PWRIC REG CTRLR MULT TOP 16TSSOP |
19,682 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Flyback, Forward Converter | 1 | 1 | 8.5V ~ 16V | 250kHz | 70% | No | Yes | - | Current Limit, Enable, On Time Control, Ramp, Soft Start | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

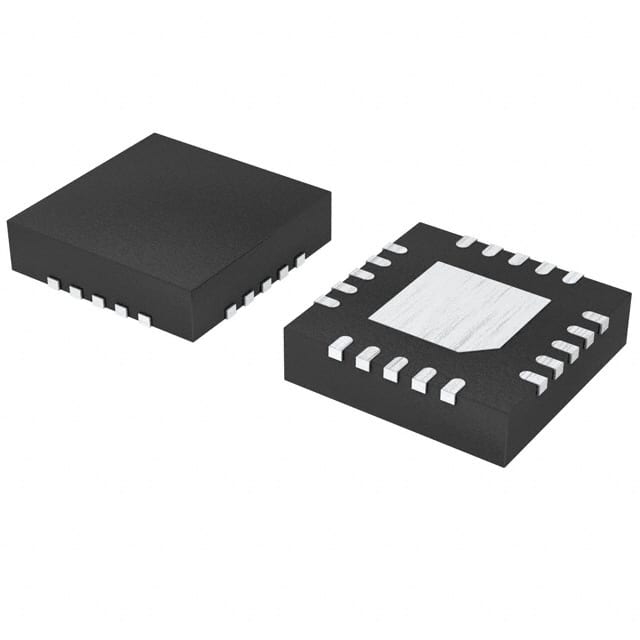

BD9611MUV-E2IC REG CTRLR BUCK 20VQFN |
9,696 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 10V ~ 56V | 50kHz ~ 500kHz | - | Yes | Yes | - | Current Limit, Enable, Frequency Control, Soft Start | -40°C ~ 105°C (TA) | - | - | Surface Mount | VQFN020V4040 |
|
|
UC3526ADWIC REG CTRLR MULT TOP 18SOIC |
962 |
|
Datasheet |
- | 18-SOIC (0.295", 7.50mm Width) | Tube | Active | Transistor Driver | Step-Up, Step-Down, Step-Up/Step-Down | Positive | Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | 2 | 1 | 7V ~ 35V | 1Hz ~ 600kHz | 49% | Yes | Yes | - | Enable, Frequency Control, Reset, Soft Start | 0°C ~ 70°C (TA) | - | - | Surface Mount | 18-SOIC |
|
UC3526NIC REG CTRLR MULT TOPOLOGY 18DIP |
900 |
|
Datasheet |
- | 18-DIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up, Step-Down, Step-Up/Step-Down | Positive | Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | 2 | 1 | 8V ~ 35V | 1Hz ~ 400kHz | 49% | Yes | Yes | - | Enable, Frequency Control, Reset, Soft Start | 0°C ~ 70°C (TA) | - | - | Through Hole | 18-PDIP |
|
LM5034MTCX/NOPBIC REG CTRLR FWRD CONV 20TSSOP |
4,920 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Forward Converter | 2 | 2 | 13V ~ 100V | 200kHz, 600kHz | 76% | Yes | Yes | - | Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-TSSOP |
|
|
UC2526ADWIC REG CTRLR MULT TOP 18SOIC |
636 |
|
Datasheet |
- | 18-SOIC (0.295", 7.50mm Width) | Tube | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | 2 | 1 | 7V ~ 35V | 1Hz ~ 600kHz | 49% | Yes | Yes | - | Enable, Frequency Control, Reset, Soft Start | -25°C ~ 85°C (TA) | - | - | Surface Mount | 18-SOIC |
|
|
NCP81610AMNTXG8 PH CNTRLR W OVR4+ INTERFC LOW |
9,556 |
|
Datasheet |
- | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Active | PWM Signal | Step-Down | Positive | Buck | 8 | 8 | 2.8V ~ 20V | 250kHz ~ 1.2MHz | 100% | Yes | No | I2C, PSI | Current Limit, Enable, Frequency Control, Power Good, Ramp, Soft Start, SPI | -10°C ~ 100°C (TA) | - | - | Surface Mount | 40-QFN (5x5) |
|
UC3846DWTRIC REG CTRLR MULT TOP 16SOIC |
9,348 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter, Half-Bridge, Push-Pull | 2 | 1 | 6.95V ~ 40V | 500kHz | 50% | Yes | Yes | - | Current Limit, Enable, Frequency Control, Soft Start | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
LM5185QPWPRQ1LM5185QPWPRQ1 |
2,558 |
|
Datasheet |
- | 14-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Flyback | 1 | 1 | 4.5V ~ 14V | 11kHz ~ 350kHz | 80% | Yes | No | - | Enable, Soft Start | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-HTSSOP |
|
UCC2808AQDR-2Q1IC REG CTRLR PUSH-PULL 8SOIC |
10,610 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Push-Pull | 2 | 1 | 4.1V ~ 15V | 194kHz | 49% | No | No | - | Frequency Control | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
