AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ICE2B0565IC OFFLINE SWITCH |
28,000 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NCP1246BLD100R2GIC OFFLINE SWITCH FLYBACK 7SOIC |
4,806 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Obsolete | Isolated | No | - | Flyback | 12 V | 8.9V ~ 28V | 80% | 100kHz | - | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage | - | -40°C ~ 125°C (TJ) | - | - | 7-SOIC | Surface Mount |
|
SGP400TZ-FS68KHZ PDSO6 |
199,688 |
|
Datasheet |
- | SOT-23-6 | Bulk | Active | - | - | - | Flyback | - | 22.7V | - | 65kHz | - | - | Current Limit, Frequency Control, Ramp | -20°C ~ 85°C (TA) | - | - | SOT-23-6 | Surface Mount |
|
SGP400TZIC CTRLR PWM GREEN CM OTP SSOT6 |
180,000 |
|
Datasheet |
* | SOT-23-6 | Bulk | Active | Isolated | - | - | - | - | 8V ~ 30V | - | 62kHz ~ 68kHz | - | - | - | - | - | - | SOT-23-6 | Surface Mount |
|
NCP1217AP100GIC OFFLINE SWITCH FLYBACK 7DIP |
2,628 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Bulk | Obsolete | Isolated | No | - | Flyback | 12.8 V | 7.6V ~ 16V | 46.5% | 100kHz | - | Over Load, Over Temperature, Short Circuit | - | 0°C ~ 150°C (TJ) | - | - | 7-PDIP | Through Hole |
|
ICE3B0365J-TOFF-LINE SMPS CURRENT MODE CONTR |
10,000 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Active | Isolated | Yes | 650V | Flyback | 18 V | 10.3V ~ 26V | 75% | 67kHz | 22 W | Current Limiting, Over Load, Over Temperature, Over Voltage | Soft Start | -40°C ~ 150°C (TJ) | - | - | PG-DIP-8 | Through Hole |
|
|
NCP1126BP100GIC OFFLINE SWITCH FLYBACK 7DIP |
4,726 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Bulk | Obsolete | Isolated | Yes | 650V | Flyback | 17 V | 8.5V ~ 35V | 80% | 100kHz | 32 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 7-PDIP | Through Hole |
|
|
NCP1050P44GIC OFFLINE SWITCH FLYBACK 7DIP |
19,774 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | 8.5 V | 7.5V ~ 10V | 77% | 44kHz | 40 W | Current Limiting, Open Loop, Over Load, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 7-PDIP | Through Hole |
|
NCP1000PGIC OFFLINE SWITCH MULT TOP 8DIP |
5,742 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Isolated | Yes | 700V | Flyback, Forward | 8.5 V | 7.5V ~ 10V | 72% | 100kHz | - | Current Limiting, Over Temperature | - | -40°C ~ 125°C (TJ) | - | - | 8-PDIP | Through Hole |
|
NCP1271D100R2GHIC OFFLINE SWITCH PMW |
10,940 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NCP1050P136GIC OFFLINE SWITCH FLYBACK 7DIP |
10,218 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | 8.5 V | 7.5V ~ 10V | 77% | 136kHz | 40 W | Current Limiting, Open Loop, Over Load, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 7-PDIP | Through Hole |
|
|
NCP1126AP100GIC OFFLINE SWITCH FLYBACK 7DIP |
4,538 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Bulk | Obsolete | Isolated | Yes | 650V | Flyback | 17 V | 8.5V ~ 35V | 80% | 100kHz | 32 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 7-PDIP | Through Hole |
|
TEA1533AT/N1,518IC OFFLINE SWITCH FLYBACK 14SO |
3,466 |
|
Datasheet |
GreenChip™ II | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Isolated | No | 650V | Flyback | 11 V | 8.7V ~ 20V | - | 25kHz ~ 175kHz | 250 W | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit | - | -20°C ~ 145°C (TJ) | - | - | 14-SO | Surface Mount |
|

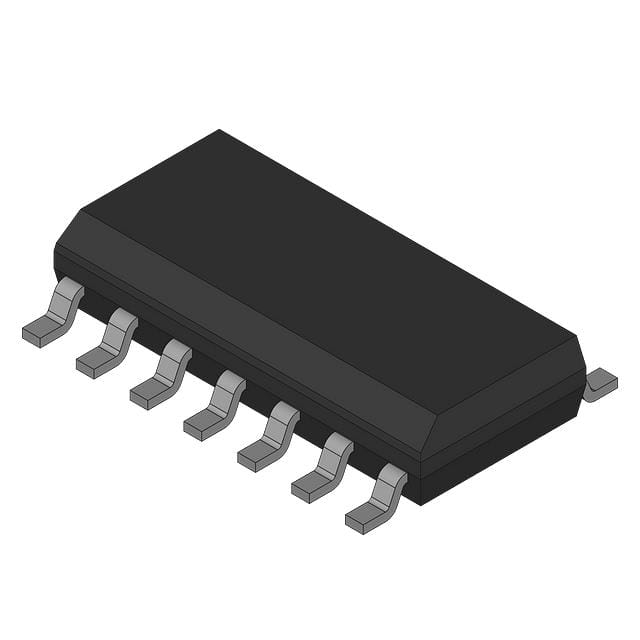

NCP1339DDR2GIC OFFLINE SWITCH FLYBACK 14SOIC |
40,000 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width), 13 Leads | Tape & Reel (TR) | Obsolete | Isolated | No | - | Flyback | 15 V | 10V ~ 28V | - | - | - | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -40°C ~ 125°C (TJ) | - | - | 14-SOIC | Surface Mount |
|
|
NCP1230P100GIC OFFLINE SWITCH FLYBACK 7DIP |
9,714 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Bulk | Active | Isolated | No | - | Flyback | 12.6 V | 7.7V ~ 18V | 80% | 100kHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | 7-PDIP | Through Hole |
|
|
NCP1216P65GIC OFFLINE SWITCH FLYBACK 7DIP |
4,174 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Bulk | Obsolete | Isolated | No | - | Flyback | - | 10V ~ 16V | 75% | 65kHz | - | Over Load, Over Temperature, Short Circuit | - | 0°C ~ 150°C (TJ) | - | - | 7-PDIP | Through Hole |
|
NCP1205DR2IC OFFLINE SWITCH FLYBACK 16SOIC |
5,732 |
|
- |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Isolated | No | - | Flyback | - | 8V ~ 30V | - | 90kHz ~ 125kHz | - | Current Limiting, Over Voltage, Short Circuit | - | -25°C ~ 125°C (TJ) | - | - | 16-SOIC | Surface Mount |
|
NCP1341B1DR2GIC OFFLINE SWITCH FLYBACK 8SOIC |
6,132 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Isolated | No | - | Flyback | 17 V | 9V ~ 28V | 75% | - | - | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage | - | -40°C ~ 125°C (TJ) | - | - | 8-SOIC | Surface Mount |
|
NCP1250ASN65T1GIC OFFLINE SWITCH FLYBACK 6TSOP |
3,470 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | Isolated | No | - | Flyback | 18 V | 8.8V ~ 28V | 80% | 65kHz | - | Over Power, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | 6-TSOP | Surface Mount |
|
NCP1012APL100R2GIC OFFLINE SWITCH FLYBACK 7DIPGW |
4,000 |
|
Datasheet |
- | 8-SMD (7 Leads), Gull Wing | Bulk | Obsolete | Isolated | Yes | 700V | Flyback | - | 8.5V ~ 10V | 67% | 100kHz | 19 W | Over Load, Over Temperature, Over Voltage | Frequency Control, Soft Start | 150°C (TJ) | - | - | 7-PDIP, Gullwing | Surface Mount |
