AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEA1733AT/N1,118IC OFFLINE SWITCH FLYBACK 8SO |
8,064 |
|
Datasheet |
GreenChip™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Isolated | No | - | Flyback | 20.6 V | 12V ~ 30V | 72% | 91.5kHz | 75 W | Current Limiting, Over Power, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 8-SO | Surface Mount |
|
|
TEA1738FT/N1,118IC OFFLINE SWITCH FLYBACK 8SO |
9,720 |
|
Datasheet |
GreenChip™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Isolated | No | - | Flyback | 13.2 V | 12V ~ 30V | 80% | 26.5kHz ~ 78kHz | 75 W | Current Limiting, Over Power, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 8-SO | Surface Mount |
|
TEA1733P/N1,112IC OFFLINE SWITCH FLYBACK 8DIP |
6,406 |
|
Datasheet |
GreenChip™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Isolated | No | - | Flyback | 20.6 V | 12V ~ 30V | 72% | 66.5kHz | 75 W | Current Limiting, Over Power, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 8-DIP | Through Hole |
|
SI9120DJ-E3IC OFFLINE SWITCH MULT TOP 16DIP |
8,868 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Bulk | Obsolete | Isolated | No | - | Flyback, Forward | - | 9.5V ~ 13.5V | 50% | 40kHz ~ 1MHz | - | - | - | -40°C ~ 85°C (TA) | - | - | 16-PDIP | Through Hole |
|
SI9120DY-E3IC OFFLINE SW MULT TOP 16SOIC |
7,126 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Isolated | No | - | Flyback, Forward | - | 9.5V ~ 13.5V | 50% | 40kHz ~ 1MHz | - | - | - | -40°C ~ 85°C (TA) | - | - | 16-SOIC | Surface Mount |
|
|
SI9120DY-T1-E3IC OFFLINE SW MULT TOP 16SOIC |
7,024 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Isolated | No | - | Flyback, Forward | - | 9.5V ~ 13.5V | 50% | 40kHz ~ 1MHz | - | - | - | -40°C ~ 85°C (TA) | - | - | 16-SOIC | Surface Mount |
|
MIC25400YML-TRIC OFFLINE SWITCH BUCK 24MLF |
3,740 |
|
Datasheet |
- | 24-VFQFN Exposed Pad, 24-MLF® | Tape & Reel (TR) | Obsolete | Non-Isolated | No | - | Buck | - | 4.5V ~ 13.2V | 75% | 1MHz | - | Current Limiting | Power Good | -40°C ~ 125°C (TJ) | - | - | 24-MLF® (4x4) | Surface Mount |
|
|
TEA1733BT/N2,118IC OFFLINE SWITCH FLYBACK 8SO |
3,636 |
|
Datasheet |
GreenChip™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Isolated | No | - | Flyback | 20.6 V | 12V ~ 30V | 72% | 123kHz | 75 W | Current Limiting, Over Power, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 8-SO | Surface Mount |
|
|
TEA1733LT/N2,118IC OFFLINE SWITCH FLYBACK 8SO |
4,960 |
|
Datasheet |
GreenChip™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Isolated | No | - | Flyback | 20.6 V | 12V ~ 30V | 72% | 66.5kHz | 75 W | Current Limiting, Over Power, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 8-SO | Surface Mount |
|
LNK585DGIC OFFLINE SWITCH FLYBACK 8SO |
3,894 |
|
Datasheet |
LinkZero™-AX | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued at Digi-Key | Either | Yes | 700V | Flyback | - | - | 63% | 100kHz | 4.5 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
LNK585GGIC OFFLINE SWITCH FLYBACK 8SMD |
2,594 |
|
Datasheet |
LinkZero™-AX | 8-SMD (7 Leads), Gull Wing | Tube | Discontinued at Digi-Key | Either | Yes | 700V | Flyback | - | - | 63% | 100kHz | 5 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SMD-8C | Surface Mount |
|
|
LNK586DGIC OFFLINE SWITCH FLYBACK 8SO |
7,282 |
|
Datasheet |
LinkZero™-AX | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued at Digi-Key | Either | Yes | 700V | Flyback | - | - | 63% | 100kHz | 6 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK586GGIC OFFLINE SWITCH FLYBACK 8SMD |
2,636 |
|
Datasheet |
LinkZero™-AX | 8-SMD (7 Leads), Gull Wing | Tube | Discontinued at Digi-Key | Either | Yes | 700V | Flyback | - | - | 63% | 100kHz | 6.5 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SMD-8C | Surface Mount |
|
MAX5975BETE+IC REG CTRLR FLYBK ISO CM 16TQFN |
5,328 |
|
- |
- | 16-WFQFN Exposed Pad | Obsolete | Either | No | - | Flyback, Forward | 10 V | 10V ~ 26V | 82.5% | 100kHz ~ 600kHz | - | Over Temperature | EN, Frequency Control, Soft Start, Sync | -40°C ~ 150°C (TJ) | - | - | 16-TQFN (3x3) | Surface Mount | |
|
FAN302HLMYIC OFFLINE SWITCH FLYBACK 8SOIC |
8,738 |
|
Datasheet |
mWSaver™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Isolated | No | - | Flyback | 16 V | 5V ~ 25V | 67% | 85kHz | - | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 105°C (TA) | - | - | 8-SOIC | Surface Mount |
|
|
FSL126HRIC OFFLINE SWITCH FLYBACK 8DIP |
9,710 |
|
Datasheet |
FPS™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 26V | 77% | 100kHz | 21 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 105°C (TA) | - | - | 8-DIP | Through Hole |
|
KA1H0165RTUIC OFFLINE SW MULT TOP TO220F |
4,332 |
|
Datasheet |
FPS™ | TO-220-4 Full Pack | Tube | Obsolete | Non-Isolated | Yes | 650V | Flyback, Forward | 15 V | 10V ~ 30V | 67% | 100kHz | - | Current Limiting, Over Load, Over Temperature, Over Voltage | Soft Start | -25°C ~ 85°C (TA) | - | - | TO-220F-4L | Through Hole |
|

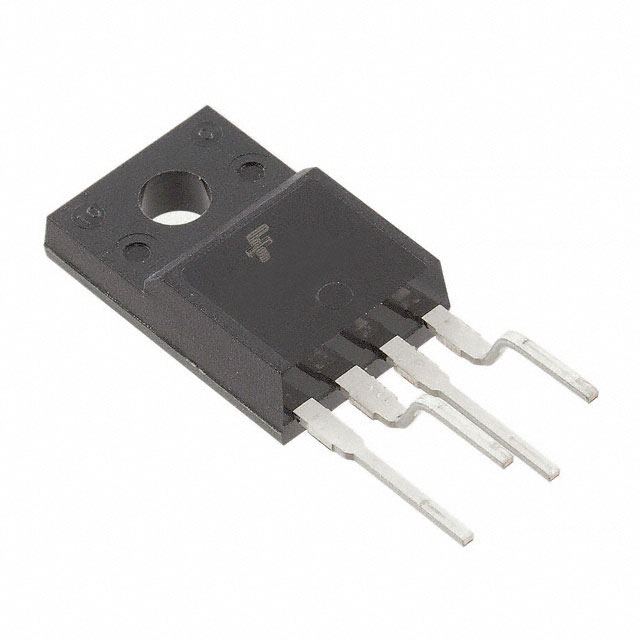

KA1M0380RBYDTUIC OFFLINE SW MULT TOP TO220F |
6,536 |
|
Datasheet |
FPS™ | TO-220-4 Full Pack, Formed Leads | Tube | Obsolete | Non-Isolated | Yes | 800V | Flyback, Forward | 15 V | 10V ~ 30V | 77% | 50kHz | - | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | TO-220F-4L (Forming) | Through Hole |
|
KA1M0565RTUIC OFFLINE SW MULT TOP TO220F |
9,678 |
|
Datasheet |
FPS™ | TO-220-4 Full Pack | Tube | Obsolete | Non-Isolated | Yes | 650V | Flyback, Forward | 15 V | 10V ~ 30V | 77% | 67kHz | - | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | TO-220F-4L | Through Hole |
|
KA1M0680RBYDTUIC OFFLINE SW MULT TOP TO3P-5L |
2,788 |
|
Datasheet |
FPS™ | TO-3P-5 Formed Leads | Tube | Obsolete | - | Yes | 800V | Flyback, Forward | 15 V | 10V ~ 30V | 77% | 67kHz | - | Current Limiting, Over Load, Over Temperature, Over Voltage | Soft Start | -25°C ~ 85°C (TA) | - | - | TO-3P-5L (Forming) | Through Hole |
