AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TOP252GN-TLIC OFFLINE SWITCH FLYBACK 8SMD |
7,200 |
|
Datasheet |
TOPSwitch®-HX | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 15 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | SMD-8C | Surface Mount |
|
TNY265GN-TLIC OFFLINE SWITCH FLYBACK 8SMD |
4,428 |
|
Datasheet |
TinySwitch®-II | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 65% | 132kHz | 11 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | SMD-8B | Surface Mount |
|
VIPER26LNIC OFFLINE SWITCH FLYBACK 7DIP |
3,112 |
|
Datasheet |
VIPer™ plus | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Either | Yes | 800V | Flyback | 13 V | 11.5V ~ 23.5V | 70% | 60kHz | 20 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 7-DIP | Through Hole |
|
|
VIPER27HNIC OFFLINE SWITCH FLYBACK 7DIP |
1,452 |
|
Datasheet |
VIPer™ plus | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 800V | Flyback | 14 V | 8.5V ~ 23.5V | 80% | 115kHz | 20 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 7-DIP | Through Hole |
|
LNK3696PIC OFFLINE SWITCH FLYBACK 8DIP |
1,574 |
|
Datasheet |
LinkSwitch™-XT2 | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 900V | Flyback | - | - | 65% | 66kHz | 11 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-C | Through Hole |
|
UCC28700DBVRIC OFFLINE SW FLYBACK SOT23-6 |
29,118 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 21 V | 9V ~ 35V | - | 1kHz ~ 130kHz | - | Current Limiting, Over Voltage | - | -20°C ~ 125°C (TJ) | - | - | SOT-23-6 | Surface Mount |
|
VIPER115XSTRIC OFFLINE SW MULT TOP 10SSOP |
39,880 |
|
Datasheet |
VIPER™ | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Non-Isolated | Yes | 800V | Buck, Buck-Boost, Flyback | 16 V | 4.5V ~ 30V | 80% | 30kHz | 12 W | Current Limiting, Over Load, Over Voltage, Short Circuit | Soft Start | -40°C ~ 125°C (TJ) | - | - | 10-SSOP | Surface Mount |
|
VIPER26LDTRIC OFFLINE SWITCH FLYBACK 16SO |
14,340 |
|
Datasheet |
VIPer™ plus | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Either | Yes | 800V | Flyback | 13 V | 11.5V ~ 23.5V | 70% | 60kHz | 20 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
|
ALTAIR04-900IC OFFLINE SWITCH FLYBACK 16SO |
2,262 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Isolated | Yes | 900V | Flyback | 13 V | 11.5V ~ 23V | - | Up to 166kHz | - | Current Limiting, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
LNK6776K-TLIC OFFLINE SWITCH FLYBACK 12ESOP |
23,056 |
|
Datasheet |
LinkSwitch™-HP | 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 64% | 120kHz ~ 136kHz | 48 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 12-ESOP | Surface Mount |
|
NCP1256ESN65T1GIC OFFLINE SWITCH FLYBACK 6TSOP |
17,614 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 18 V | 8.9V ~ 28V | 80% | 65kHz | - | Over Power, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | 6-TSOP | Surface Mount |
|
|
VIPER26LDIC OFFLINE SWITCH FLYBACK 16SO |
3,560 |
|
Datasheet |
VIPer™ plus | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Either | Yes | 800V | Flyback | 13 V | 11.5V ~ 23.5V | 70% | 60kHz | 20 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
|
NCP12510BSN100T1GIC OFFLINE SWITCH FLYBACK 6TSOP |
15,556 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 18 V | 8.9V ~ 35V | 80% | 100kHz | - | Over Power, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | 6-TSOP | Surface Mount |
|

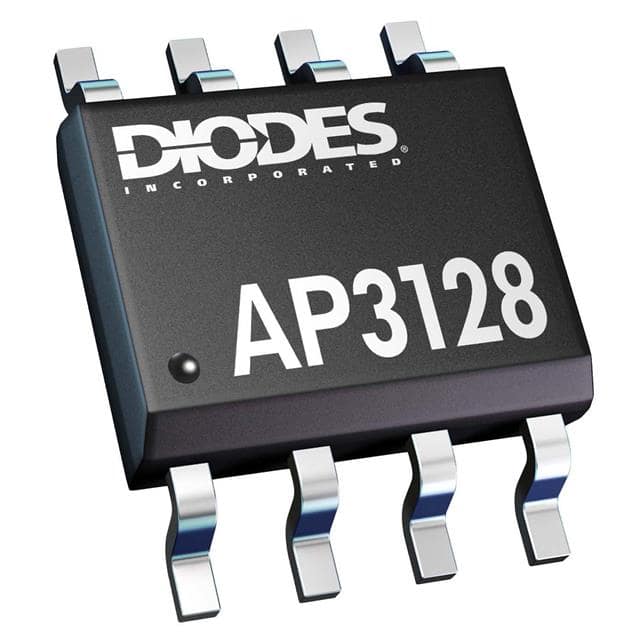

AP3128S-13ACDC PWM SWITCHER SO-8 T&R 2.5K |
4,222 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | Yes | 700V | Flyback | - | 10V ~ 50V | - | 23kHz ~ 105kHz | - | Current Limiting, Over Load, Over Temperature, Over Voltage | Soft Start | -40°C ~ 85°C (TA) | - | - | 8-SO Type A1 | Surface Mount |
|
|
UCC28704DBVT-1IC OFFLINE SW FLYBACK SOT23-6 |
2,884 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 21 V | 8.5V ~ 35V | - | 85kHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | SOT-23-6 | Surface Mount |
|
VIPER12ASTR-EIC OFFLINE SWITCH 8SOIC |
17,378 |
|
Datasheet |
VIPER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Non-Isolated | Yes | 730V | - | 14.5 V | 9V ~ 38V | - | 60kHz | 8 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TC) | - | - | 8-SOIC | Surface Mount |
|
|
VIPER26HDTRIC OFFLINE SWITCH FLYBACK 16SO |
8,690 |
|
Datasheet |
VIPer™ plus | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Either | Yes | 800V | Flyback | 13 V | 11.5V ~ 23.5V | 70% | 115kHz | 20 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
INN3072M-H606-TLINNOSWITCH3-TN 10 W 85-265 VAC |
6,878 |
|
Datasheet |
InnoSwitch™4-TN | 16-PowerSMD Module (0.354", 9.00mm Width), 12 Leads | Tape & Reel (TR) | Active | Either | Yes | 725V | Flyback, Secondary Side SR | - | 3.8V | - | 25kHz ~ 95kHz | 12 W | Current Limiting, Over Load, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 105°C (TA) | - | - | MinSOP-16A | Surface Mount |
|
LNK6767EIC OFFLINE SWITCH FLYBACK 7ESIP |
1,630 |
|
Datasheet |
LinkSwitch™-HP | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads | Tube | Active | Isolated | Yes | 650V | Flyback | - | - | 64% | 120kHz ~ 136kHz | 117 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | eSIP-7C | Through Hole |
|
CPZ1062M-TLIC OFFLINE SWITCH FLYBACK MINSOP |
1,260 |
|
Datasheet |
ClampZero™ | 16-PowerSMD Module (0.354", 9.00mm Width), 12 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 650V | Flyback | - | - | - | - | 135 W | Current Limiting, Over Temperature | EN, Frequency Control | -40°C ~ 105°C (TA) | - | - | MinSOP-16A | Surface Mount |
