Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

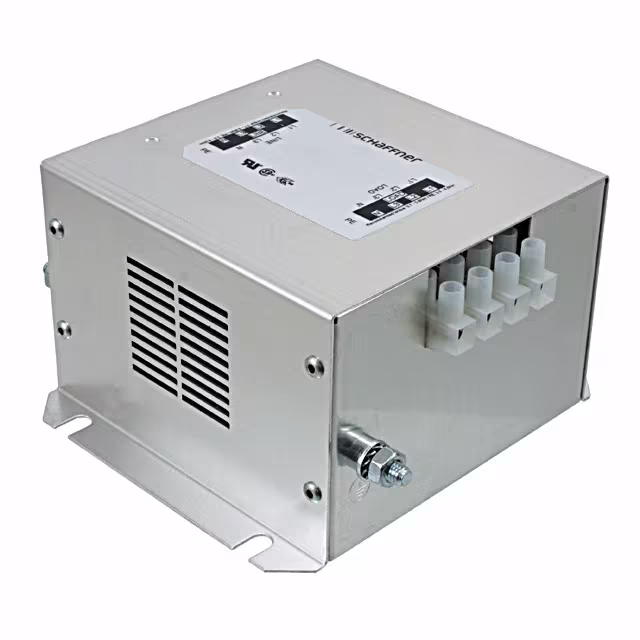

FN256-8-46LINE FILTER 8A CHASSIS MOUNT |
7,466 |
|
Datasheet |
FN 256 | Tray | Obsolete | Three Phase (Wye) | Single Stage | - | - | 277 V | 480 V | 8 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
16TDT2LINE FILTER 480VAC CHASSIS MOUNT |
9,998 |
|
Datasheet |
TDT | Box | Active | Three Phase (Delta) | Single Stage | - | 480V | - | - | - | 50/60Hz | General Purpose | - | - | Chassis Mount | Terminal Block | 5.2mH |
|
25TYT8-2LINE FILTER 520VAC CHASSIS MOUNT |
9,594 |
|
Datasheet |
TYT | Box | Active | Three Phase (Wye) | Two Stage | - | 520V | - | - | - | 50/60Hz | General Purpose | UR | - | Chassis Mount | Terminal Block | L1 - 1.6mH, L2 - 6µH |
|
FN258L-7-07LINE FILTER 7A CHASSIS MOUNT |
7,978 |
|
Datasheet |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 7 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
2788977LINE FILTER 264VAC 10A DIN RAIL |
9,112 |
|
Datasheet |
- | Bulk | Obsolete | Single Phase | Single Stage | - | 264V | - | - | 10 A | 50/60Hz | General Purpose | GOST, UR, VDE | -25°C ~ 100°C | DIN Rail | Terminal Block | 1.8mH |
|
FN3288HV-20-33-C25-R65LINE FILTER 20A CHASSIS MOUNT |
3,624 |
|
Datasheet |
FN 3288 | Bulk | Active | Three Phase (Delta) | Two Stage | - | - | 440 V | 760 V | 20 A | DC ~ 60Hz | Inverters, Power Drive Systems | CE, ENEC, UKCA, UR | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
RSAN-2060LINE FILTER 250VAC/VDC 60A CHASS |
4,788 |
|
Datasheet |
RSAN | Bulk | Active | Single Phase | Single Stage | 250V | 250V | - | - | 60 A | - | General Purpose | CSA, EN, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
10KEHD10BFPDLINE FILTER 520VAC 10A CHASS MNT |
3,066 |
|
- |
KEH | Box | Active | Three Phase (Delta) | Two Stage | - | 520V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
LF-310LINE FILTER 250VAC/VDC 10A CHASS |
6,968 |
|
Datasheet |
LF | Box | Obsolete | Three Phase (Delta) | Two Stage | 250V | 250V | - | - | 10 A | - | General Purpose | UL | -20°C ~ 45°C | Chassis Mount | Threaded Post (M4) | - |
|
6609974-5LINE FILTER 16A CHASSIS MOUNT |
7,642 |
|
Datasheet |
FCD | Box | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 16 A | 50/60Hz | Regenerative Motor Drive | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
|
6609069-6LINE FILTER 250VAC 50A CHASS MNT |
7,306 |
|
Datasheet |
FC | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 50 A | 50/60Hz | Inverters, Power Drive Systems | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|

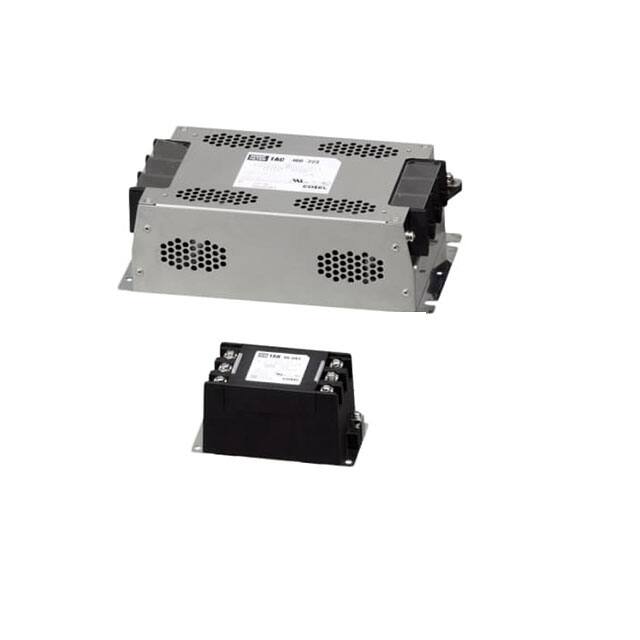

TAC-50-103LINE FILTER 500VAC 50A CHASS MNT |
3,604 |
|
Datasheet |
TAC | Box | Active | Three Phase (Wye) | Single Stage | - | 500V | - | - | 50 A | 50/60Hz | General Purpose | cURus, VDE | -40°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
B86305L0035R000LINE FILTER 520VAC 35A CHASS MNT |
2,104 |
|
Datasheet |
B86305 | Box | Active | Three Phase (Delta) | Single Stage | - | 520V | - | - | 35 A | 50/60Hz | Converter | - | -25°C ~ 100°C | Chassis Mount | Terminal Block | 840µH |
|
|
20KESS6BFPWLINE FILTER 520VAC 16A CHASS MNT |
5,708 |
|
- |
KES | Box | Active | Three Phase (Wye) | Single Stage | - | 520V | - | - | 16 A | 50/60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Threaded Post (M5) | - |
|
B84144A0025R140LINE FILTER 25A CHASSIS MOUNT |
4,228 |
|
Datasheet |
B84144 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 520 V | 300 V | 25 A | 50/60Hz | General Purpose | cUR, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FSB-30-254-UEMI FILTER |
2,020 |
|
Datasheet |
FSB | Bulk | Active | Three Phase (Wye) | Two Stage | - | - | - | 528 V | 30 A | 50/60Hz | Regenerative Motor Drive | cURus, ENEC, VDE | -40°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
10KEVD10BFPWLINE FILTER 520VAC 10A CHASS MNT |
3,412 |
|
- |
KEV | Box | Active | Three Phase (Wye) | Two Stage | - | 520V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
16KEHD10ABSDHMLINE FILTER 440VAC 16A CHASS MNT |
9,008 |
|
Datasheet |
KEH-BS | Box | Active | Three Phase (Delta) | Two Stage | - | 440V | - | - | 16 A | 50 ~ 60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
FN686-25-23LINE FILTER 250VAC 25A CHASS MNT |
8,798 |
|
Datasheet |
FN 685 | Tray | Obsolete | Single Phase | Two Stage | - | 250V | - | - | 25 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | 1.35mH |
|
|
25TDT2LINE FILTER 480VAC CHASSIS MOUNT |
6,972 |
|
Datasheet |
TDT | Box | Active | Three Phase (Delta) | Single Stage | - | 480V | - | - | - | 50/60Hz | General Purpose | - | - | Chassis Mount | Terminal Block | 2.2mH |
