Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN2020-10-07LINE FILTER 250VAC 10A CHASS MNT |
6,962 |
|
Datasheet |
FN 2020 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Wire Leads | 800µH |
|
10ER3LINE FILTER 250VAC 10A CHASS MNT |
9,494 |
|
Datasheet |
R | Bag | Active | Single Phase | Two Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Wire Leads | 990µH |
|
RSHN-2006LINE FILTER 250VAC/VDC 6A CHASS |
5,468 |
|
Datasheet |
RSHN | Bulk | Active | Single Phase | Two Stage | 250V | 250V | - | - | 6 A | - | General Purpose | CSA, EN, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|

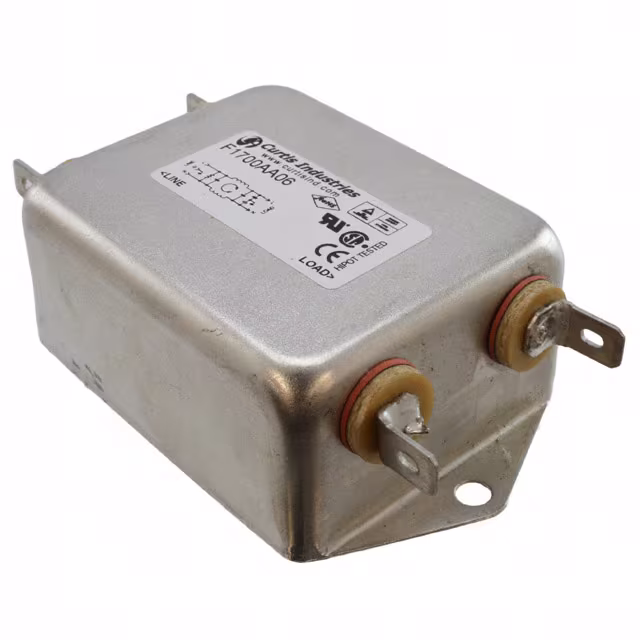

F1700AA06LINE FILTER 250VAC 6A CHASS MNT |
4,424 |
|
Datasheet |
F1700 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | CE, CSA, TUV, UR | - | Chassis Mount | Quick Connect | - |
|
FPBB-W3RI-1090LINE FILTER 48VDC 240VAC 10A DIN |
9,888 |
|
Datasheet |
FPBB RAIL | Box | Active | Single Phase | Two Stage | 48V | 240V | - | - | 10 A | 50/60Hz | General Purpose | - | -40°C ~ 100°C | DIN Rail | Spring Cage | - |
|
RSEN-2010DLINE FILTER 250VAC/VDC 10A DIN |
3,786 |
|
Datasheet |
RSEN | Bulk | Active | Single Phase | Single Stage | 250V | 250V | - | - | 10 A | - | General Purpose | CSA, EN, UL | -25°C ~ 85°C | DIN Rail | Terminal Block | - |
|

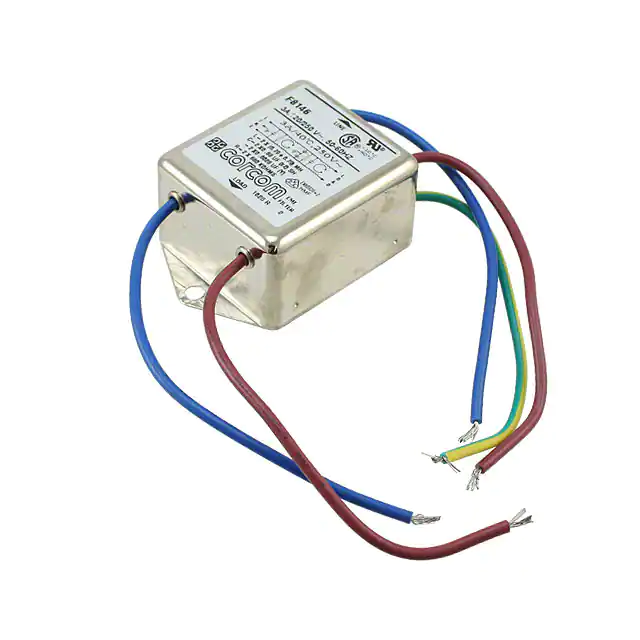

3EMC3LINE FILTER 250VAC 3A CHASS MNT |
3,148 |
|
Datasheet |
EMC | Bulk | Last Time Buy | Single Phase | Two Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Wire Leads | - |
|
|
FPBB-W3RI-1090.VDLINE FILTER 48VDC 240VAC 10A DIN |
4,128 |
|
Datasheet |
FPBB RAIL | Box | Active | Single Phase | Two Stage | 48V | 240V | - | - | 10 A | 50/60Hz | General Purpose | - | -40°C ~ 100°C | DIN Rail | Spring Cage | - |
|

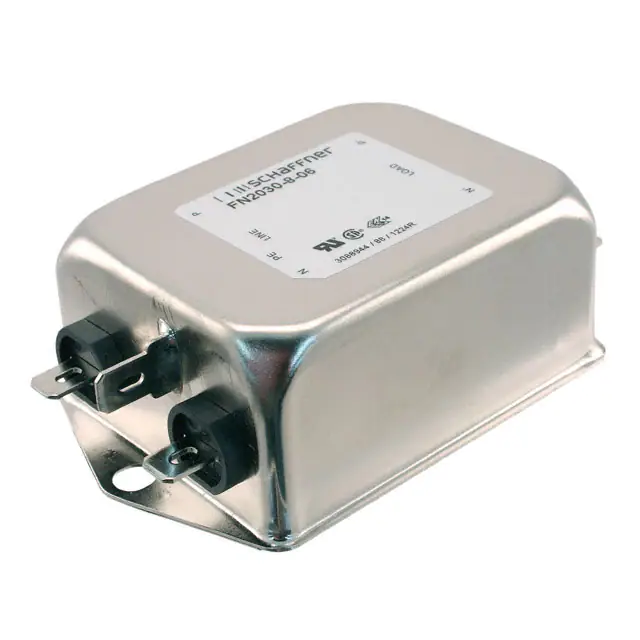

FN2030-8-06LINE FILTER 250VAC 8A CHASS MNT |
4,958 |
|
Datasheet |
FN 2030 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 8 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 8mH |
|
FN332-10A-05LINE FILTER 250VAC 10A CHASS MNT |
9,462 |
|
Datasheet |
FN 332 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 500µH |
|
5FBH3=F8591LINE FILTER 480VAC/VDC 5A CHASS |
6,956 |
|
Datasheet |
FB | Box | Active | Single Phase | Single Stage | 480V | 480V | 2.25 kV | 2.775 kV | 5 A | 50 ~ 60Hz | General Purpose | UL | -40°C ~ 90°C | Chassis Mount | Wire Leads | 510µH |
|

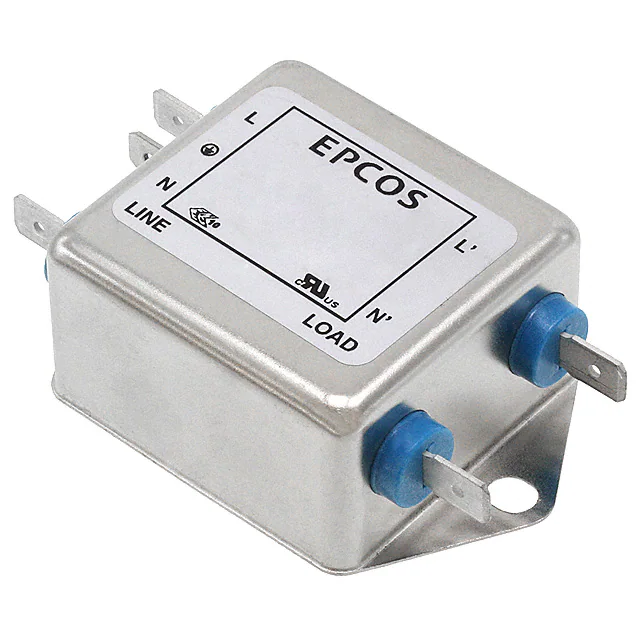

B84111F0000B120LINE FILTER 250VAC/VDC 20A CHASS |
3,262 |
|
Datasheet |
B84111F | Bulk | Active | Single Phase | Single Stage | 250V | 250V | - | - | 20 A | 50/60Hz | General Purpose | cUR, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 430µH |
|
|
RSHN-2010LINE FILTER 250VAC/VDC 10A CHASS |
5,152 |
|
Datasheet |
RSHN | Bulk | Active | Single Phase | Two Stage | 250V | 250V | - | - | 10 A | - | General Purpose | CSA, EN, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
5VR1LINE FILTER 250VAC 5A CHASS MNT |
4,078 |
|
Datasheet |
R | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 5 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.032mH |
|

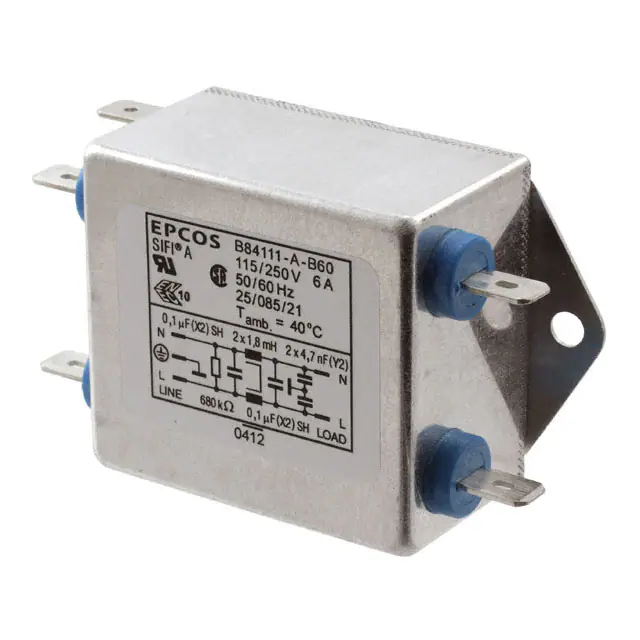

B84111A0000B060LINE FILTER 250VAC/VDC 6A CHASS |
8,328 |
|
Datasheet |
B84111A | Tray | Active | Single Phase | Single Stage | 250V | 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, ENEC, UR | - | Chassis Mount | Quick Connect | 1.8mH |
|
5500.2061LINE FILTER 125V/250VAC 6A CHASS |
4,512 |
|
Datasheet |
FSW | Bulk | Active | Single Phase | Single Stage | - | 125V, 250V | - | - | 6 A | 50/60Hz | Inverters, Power Drive Systems | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 800µH |
|
FN2030-12-06LINE FILTER 250VAC 12A CHASS MNT |
7,462 |
|
Datasheet |
FN 2030 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 12 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 4mH |
|
B84112G0000M116LINE FILTER 250VAC/VDC 16A CHASS |
9,760 |
|
Datasheet |
B84112G | Bulk | Active | Single Phase | Single Stage | 250V | 250V | - | - | 16 A | 50/60Hz | General Purpose | cUR, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1.8mH |
|

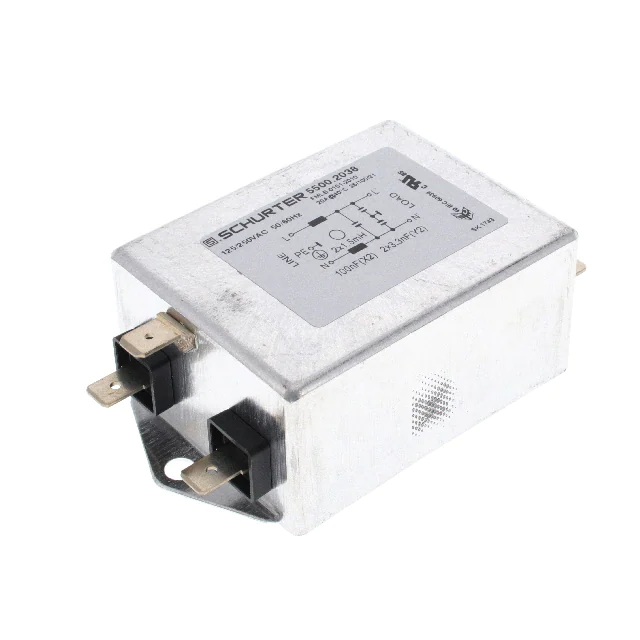

5500.2038LINE FILTER 125V/250VAC 20A CHAS |
3,874 |
|
Datasheet |
FMLB-51 | Bulk | Active | Single Phase | Single Stage | - | 125V, 250V | - | - | 20 A | 50/60Hz | Inverters, Power Drive Systems | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1.5mH |
|
|
5500.2036LINE FILTER 125V/250VAC 10A CHAS |
9,100 |
|
Datasheet |
FMLB-51 | Bulk | Active | Single Phase | Single Stage | - | 125V, 250V | - | - | 10 A | 50/60Hz | Inverters, Power Drive Systems | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 5mH |
