Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-1609037-0LINE FILTER 250VAC 10A CHASS MNT |
8,008 |
|
Datasheet |
HZ | Bulk | Last Time Buy | Single Phase | Single Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 4.97mH |
|
AMI-29B-20-1LINE FILTER 250VAC 20A CHASS MNT |
2,274 |
|
Datasheet |
AMI-29 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | - | - |
|
|
AMI-29-20-1LINE FILTER 250VAC 20A CHASS MNT |
4,806 |
|
Datasheet |
AMI-29 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | General Purpose | CE, cURus | -25°C ~ 100°C | Chassis Mount | - | - |
|
|
AMI-29A-20-1LINE FILTER 250VAC 20A CHASS MNT |
6,206 |
|
Datasheet |
AMI-29 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | - | - |
|
|
AMI-29-20-6LINE FILTER 250VAC 20A CHASS MNT |
6,610 |
|
Datasheet |
AMI-29 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | General Purpose | CE, cURus | -25°C ~ 100°C | Chassis Mount | - | - |
|
|
AMI-M12B-6-20-CLINE FILTER 250VAC 20A CHASS MNT |
8,394 |
|
Datasheet |
AMI-M12B | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Threaded Post (8-32) | - |
|

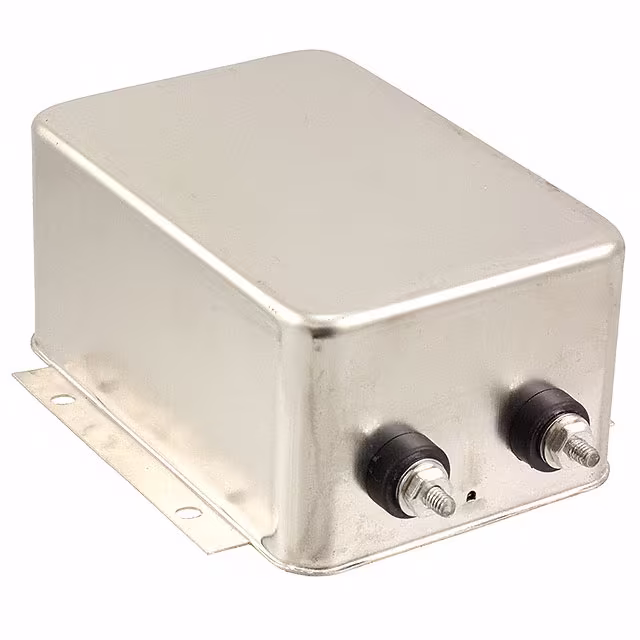

3-1609037-5LINE FILTER 250VAC 20A CHASS MNT |
8,648 |
|
Datasheet |
HT | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | UR, VDE | -10°C ~ 40°C | Chassis Mount | Threaded Post (8-32) | 3.88mH |
|
RCY6A-30LINE FILTER 600VAC SURFACE MOUNT |
3,904 |
|
Datasheet |
- | Box | Active | Three Phase (Wye) | - | - | 600V | - | - | - | 50 ~ 60Hz | General Purpose | cURus | -40°C ~ 85°C | Surface Mount | Wire Leads | - |
|
|
RCY6A-30VLINE FILTER 600VAC SURFACE MOUNT |
9,922 |
|
Datasheet |
- | Box | Active | Three Phase (Wye) | - | - | 600V | - | - | - | 50 ~ 60Hz | General Purpose | cURus | -40°C ~ 85°C | Surface Mount | Wire Leads | - |
|
6609074-7LINE FILTER 80VDC 100A CHASS MNT |
9,518 |
|
Datasheet |
DC | Bulk | Obsolete | DC | Single Stage | 80V | - | - | - | 100 A | - | General Purpose | CSA, TUV, UR | -10°C ~ 55°C | Chassis Mount | Threaded Post (1/4-20) | - |
|
1609989-3LINE FILTER 30A CHASSIS MOUNT |
5,160 |
|
Datasheet |
BCF | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 30 A | 50/60Hz | Inverters, Power Drive Systems | UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | - |
|
2-1609091-7LINE FILTER 30A CHASSIS MOUNT |
2,658 |
|
Datasheet |
BCF | Bulk | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 30 A | 50/60Hz | Inverters, Power Drive Systems | UR, VDE | -10°C ~ 50°C | Chassis Mount | Threaded Post (M5) | - |
|
3-1609091-0LINE FILTER 75A CHASSIS MOUNT |
7,534 |
|
Datasheet |
BCF | Bulk | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 75 A | 50/60Hz | Inverters, Power Drive Systems | UR, VDE | -10°C ~ 50°C | Chassis Mount | Threaded Post (M6) | - |
|
100BCF6RLINE FILTER 100A CHASSIS MOUNT |
6,300 |
|
Datasheet |
BCFXR | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 100 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 50°C | Chassis Mount | Threaded Post (M5) | 800µH |
|
45AYT6CLINE FILTER 45A CHASSIS MOUNT |
4,484 |
|
Datasheet |
A | Bulk | Last Time Buy | Three Phase (Wye) | Two Stage | - | - | 250 V | 440 V | 45 A | 50/60Hz | General Purpose | CSA, UL | -10°C ~ 40°C | Chassis Mount | Threaded Post (1/4-20) | 2.22mH |
|

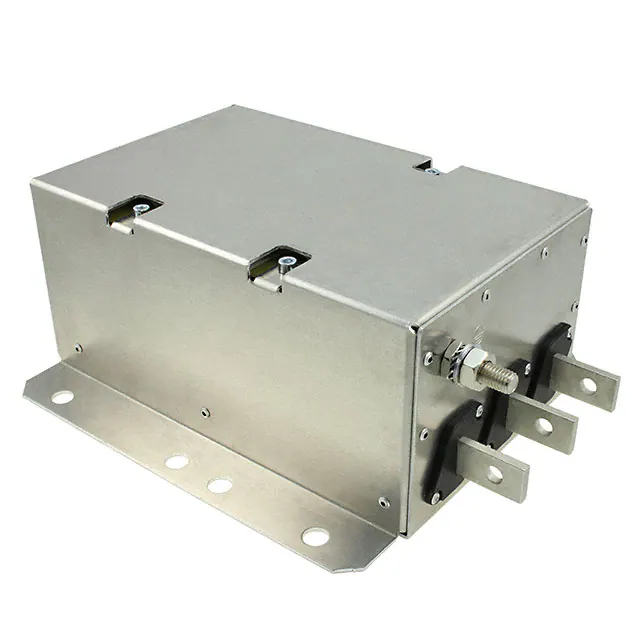

250APH12LLINE FLTR 520VAC 250A CHASS MNT |
5,872 |
|
Datasheet |
APH | Bulk | Active | Three Phase (Delta) | Three Stage | - | 520V | - | - | 250 A | 50/60Hz | General Purpose | - | -10°C ~ 50°C | Chassis Mount | Terminal Post | - |
|

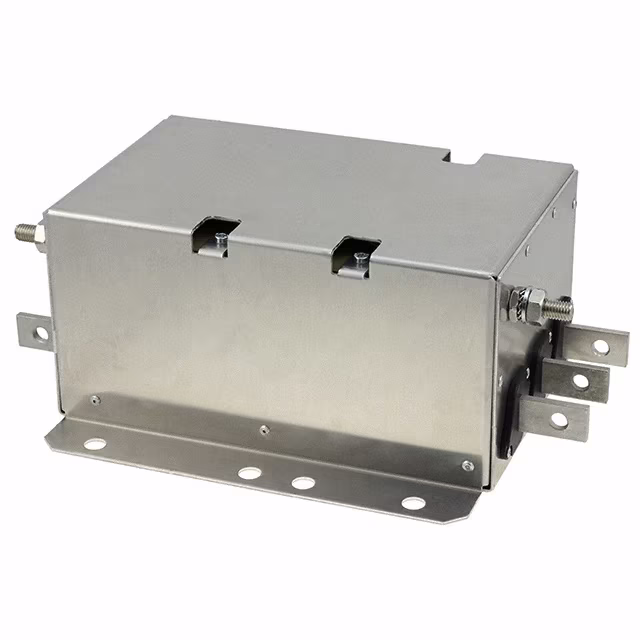

250APH12PLINE FLTR 690VAC 250A CHASS MNT |
5,854 |
|
Datasheet |
APH | Bulk | Active | Three Phase (Delta) | Three Stage | - | 690V | - | - | 250 A | 50/60Hz | General Purpose | - | -10°C ~ 50°C | Chassis Mount | Terminal Post | - |
|
|
TSNJ-1A6L26LINE FLTR 6VDC 1A SURFACE MOUNT |
572 |
|
Datasheet |
- | Strip | Active | DC | - | 6V | - | - | - | 1 A | DC ~ 6GHz | Converter | - | -40°C ~ 85°C | Surface Mount | - | - |
|
RCS1B-6LINE FILTER 120VAC SURFACE MOUNT |
254 |
|
Datasheet |
- | Bulk | Active | Single Phase | - | - | 120V | - | - | - | 50 ~ 60Hz | General Purpose | cURus | -40°C ~ 85°C | Surface Mount | Wire Leads | - |
|
|
HGN-365A06W-25-3MM1LINE FLTR 125/250VAC 6A PANEL |
1,600 |
|
Datasheet |
HGN-365A | Bulk | Active | Single Phase | Single Stage | - | 125V, 250V | - | - | 6 A | 50 ~ 60Hz | Medical | cURus, VDE | - | Panel Mount | Wire Leads | 0.8mH |
