Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

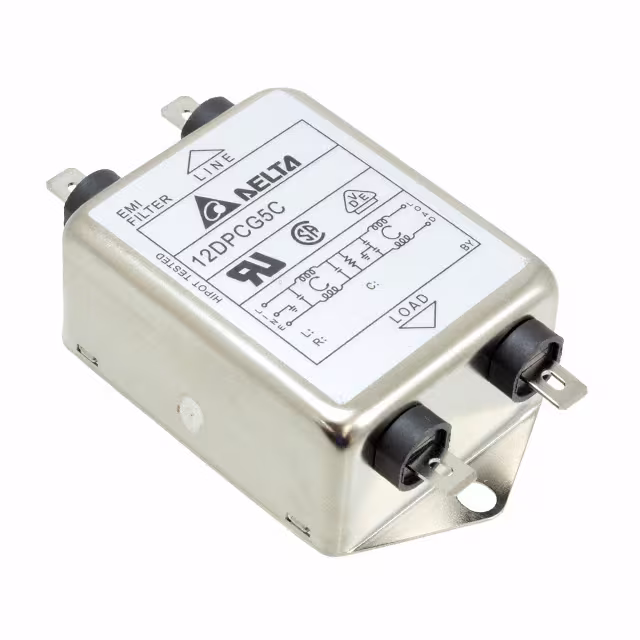

12DPCG5CLINE FILTER 115V/250VAC 12A CHAS |
4,592 |
|
Datasheet |
DP | Bulk | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 12 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | 580µH |
|
20VBAS5LINE FILTER 115V/250VAC 20A CHAS |
7,406 |
|
Datasheet |
VB | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Threaded Post (8-32) | 700µH |
|
FN2310X-3-06LINE FILTER 250VAC 3A CHASS MNT |
5,258 |
|
Datasheet |
FN 2310 | Tray | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | General Purpose | CSA, SEMKO | -25°C ~ 100°C | Chassis Mount | Quick Connect | 36.9mH |
|
AMI-22B-20-6LINE FILTER 250VAC 20A CHASS MNT |
2,068 |
|
Datasheet |
AMI-22 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 600µH |
|
|
AMI-22A-30-6LINE FILTER 250VAC 30A CHASS MNT |
8,572 |
|
Datasheet |
AMI-22 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 30 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Threaded Post (M4) | 670µH |
|
|
AMI-28B-3-1LINE FILTER 250VAC 3A CHASS MNT |
2,658 |
|
- |
AMI-28 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 9.96mH |
|
|
AMI-28-3-3LINE FILTER 250VAC 3A CHASS MNT |
9,576 |
|
- |
AMI-28 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | General Purpose | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 9.96mH |
|

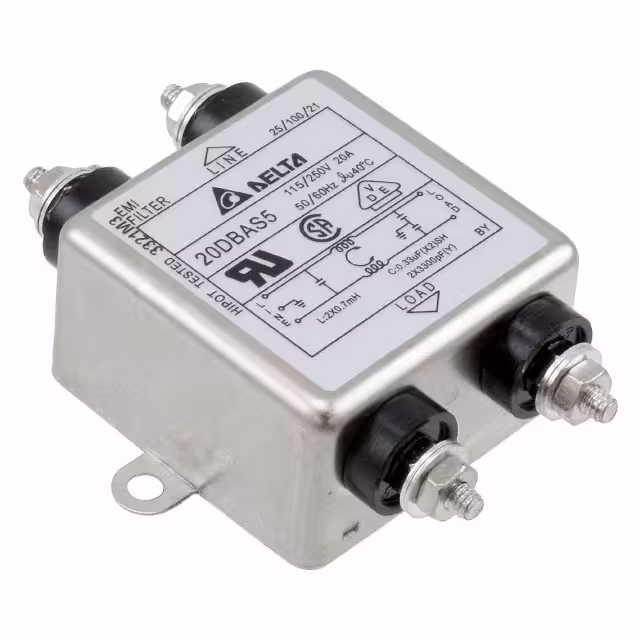

20DBAS5LINE FILTER 115V/250VAC 20A CHAS |
5,910 |
|
Datasheet |
DB | Bulk | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Threaded Post (8-32) | 700µH |
|

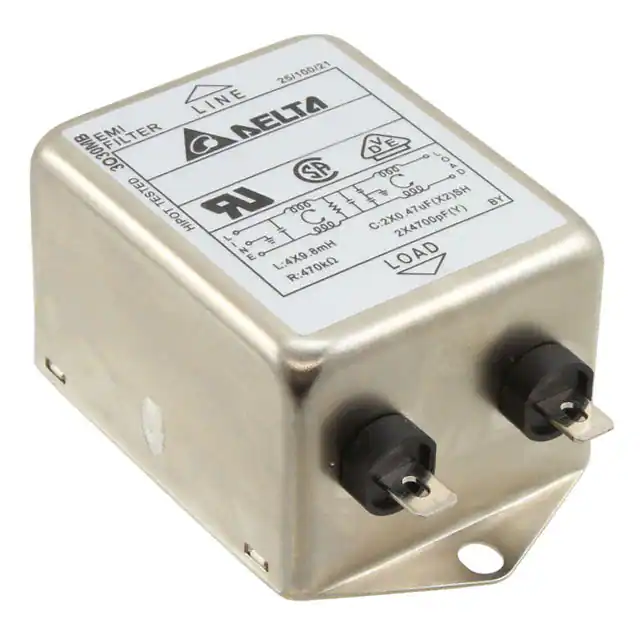

03DPCG5BLINE FILTER 115V/250VAC 3A CHASS |
6,816 |
|
Datasheet |
DP | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | - |
|
|
AMI-27-1-3LINE FILTER 250VAC 1A CHASS MNT |
6,352 |
|
Datasheet |
AMI-27 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 1 A | DC ~ 400Hz | General Purpose | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 44mH |
|
|
AMI-M11S-3-6-CLINE FILTER 250VAC 6A CHASS MNT |
9,314 |
|
Datasheet |
AMI-M11S | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Wire Leads | 18.5mH |
|
|
AMI-23A-16-3LINE FILTER 250VAC 16A CHASS MNT |
9,518 |
|
Datasheet |
AMI-23 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect, Wire Leads | 4mH |
|
|
AMI-23B-16-3LINE FILTER 250VAC 16A CHASS MNT |
9,644 |
|
Datasheet |
AMI-23 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect, Wire Leads | 4mH |
|
|
AMI-23-20-3LINE FILTER 250VAC 20A CHASS MNT |
9,664 |
|
Datasheet |
AMI-23 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | General Purpose | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect, Threaded Post (M4) | 4mH |
|
FMAB-N7PH-0646LINE FLTR 277/400VDC 277VAC CHAS |
9,396 |
|
Datasheet |
FMAB | Box | Active | Single Phase | Single Stage | 277V, 400V | 277V | - | - | 6 A | 50/60Hz | Medical | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | Quick Connect | - |
|
03DRDW3SLINE FILTER 115V/250VAC 3A CHASS |
7,990 |
|
Datasheet |
DR | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | IEC 320-C14, Wire Leads | 2.8mH |
|
|
AMI-22A-20-3LINE FILTER 250VAC 20A CHASS MNT |
9,756 |
|
Datasheet |
AMI-22 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 600µH |
|
|
AMI-22B-20-3LINE FILTER 250VAC 20A CHASS MNT |
6,816 |
|
Datasheet |
AMI-22 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 600µH |
|
|
AMI-22A-20-6LINE FILTER 250VAC 20A CHASS MNT |
2,812 |
|
Datasheet |
AMI-22 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 600µH |
|
|
AMI-27A-1-3LINE FILTER 250VAC 1A CHASS MNT |
7,616 |
|
Datasheet |
AMI-27 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 1 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 44mH |
