Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EMC-03LINE FILTER 85V-305VAC 0.3A TH |
8,822 |
|
Datasheet |
- | Tube | Not For New Designs | Single Phase | Single Stage | - | 85V ~ 305V | - | - | 300 mA | 47Hz, 63Hz | General Purpose | - | -40°C ~ 85°C | Through Hole | PC Pins | - |
|
851-02/001LINE FILTER 115V/250VAC 2A CHASS |
4,804 |
|
Datasheet |
851 | Tray | Obsolete | Single Phase | Single Stage | - | 115V, 250V | - | - | 2 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 85°C | Chassis Mount | Quick Connect | 1.1mH |
|
ID-15A2HLINE FLTR 250VAC/VDC 15A PANEL |
3,552 |
|
Datasheet |
ID | Active | Single Phase | Single Stage | 250V | 250V | - | - | 15 A | 50 ~ 60Hz | General Purpose | CQC, CSA, ENEC, TUV, UR, VDE | -25°C ~ 85°C | Panel Mount | IEC 320-C14, Quick Connect | - | |
|
|
AMI-M11UF-1-16-BLINE FILTER 250VAC 16A CHASS MNT |
9,354 |
|
Datasheet |
AMI-M11UF | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 2.1mH |
|
|
851-02/002LINE FILTER 115V/250VAC 2A CHASS |
2,108 |
|
Datasheet |
851 | - | Obsolete | Single Phase | Single Stage | - | 115V, 250V | - | - | 2 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 85°C | Chassis Mount | Wire Leads | 1.1mH |
|
|
AMI-M11UA-3-16-CLINE FILTER 250VAC 16A CHASS MNT |
4,482 |
|
Datasheet |
AMI-M11UA | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Wire Leads | 540µH |
|
|
AMI-M11UB-1-16-CLINE FILTER 250VAC 16A CHASS MNT |
6,086 |
|
Datasheet |
AMI-M11UB | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.3mH |
|

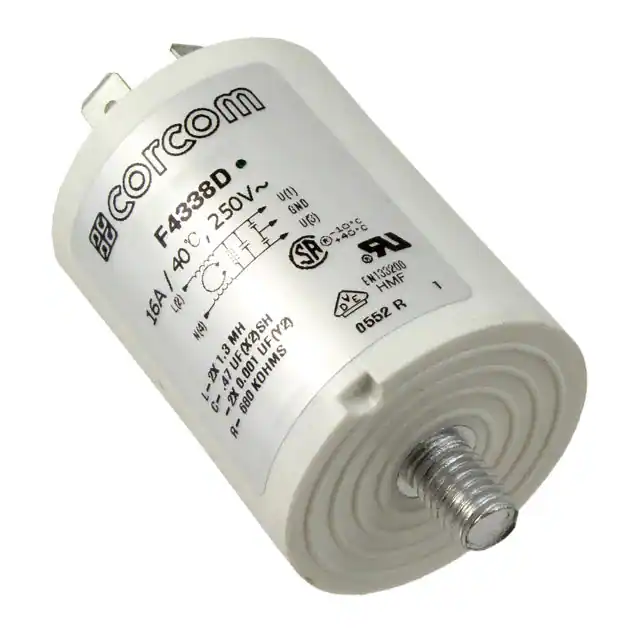

4-6609089-7LINE FILTER 250VAC 16A CHASS MNT |
6,984 |
|
Datasheet |
WG | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect, Threaded Post (M8) | 1.3mH |
|
|
AMI-M11UC-1-16-CLINE FILTER 250VAC 16A CHASS MNT |
6,660 |
|
Datasheet |
AMI-M11UC | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 2.1mH |
|
|
AMI-M11UD-1-16-BLINE FILTER 250VAC 16A CHASS MNT |
2,352 |
|
Datasheet |
AMI-M11UD | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 540µH |
|
AMI-M11A-1-3-BLINE FILTER 250VAC 3A CHASS MNT |
5,782 |
|
Datasheet |
AMI-M11A | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.76mH |
|
|
8-6609089-0LINE FILTER 250VAC 16A CHASS MNT |
3,858 |
|
Datasheet |
WG | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50 ~ 60Hz | General Purpose | CSA, UL, VDE | -10°C ~ 40°C | Chassis Mount | Wire Leads | - |
|
AP-01LINE FILTER 110V/250VAC 1A TH |
7,942 |
|
Datasheet |
AP | Box | Obsolete | Single Phase | Single Stage | - | 110V, 250V | - | - | 1 A | 50/60Hz | General Purpose | cCSAus, CE, UR | -25°C ~ 85°C | Through Hole | PC Pins | - |
|
|
AP-03LINE FILTER 110V/250VAC 3A TH |
2,136 |
|
Datasheet |
AP | Box | Obsolete | Single Phase | Single Stage | - | 110V, 250V | - | - | 3 A | 50/60Hz | General Purpose | cCSAus, CE, UR | -25°C ~ 85°C | Through Hole | PC Pins | - |
|
|
AMI-B11B-13-1-BLINE FILTER 250VAC 1A TH |
8,856 |
|
Datasheet |
AMI-B11B | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 1 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Through Hole | PC Pins | 10mH |
|
|
7-6609089-6LINE FILTER 250VAC 16A CHASS MNT |
3,870 |
|
Datasheet |
WG | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50 ~ 60Hz | General Purpose | CSA, UL, VDE | -10°C ~ 40°C | Chassis Mount | Wire Leads | - |
|
|
AMI-M11A-1-2-BLINE FILTER 250VAC 2A CHASS MNT |
6,782 |
|
Datasheet |
AMI-M11A | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 2 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 539µH |
|
|
10GENW3ESLINE FILTER 115/250VAC PANEL MNT |
4,304 |
|
Datasheet |
GE | Bulk | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | - | 50Hz ~ 60Hz | General Purpose | CSA, SEMKO, UR, VDE | - | Panel Mount | IEC 320-C14, Wire Leads | 200µH |
|

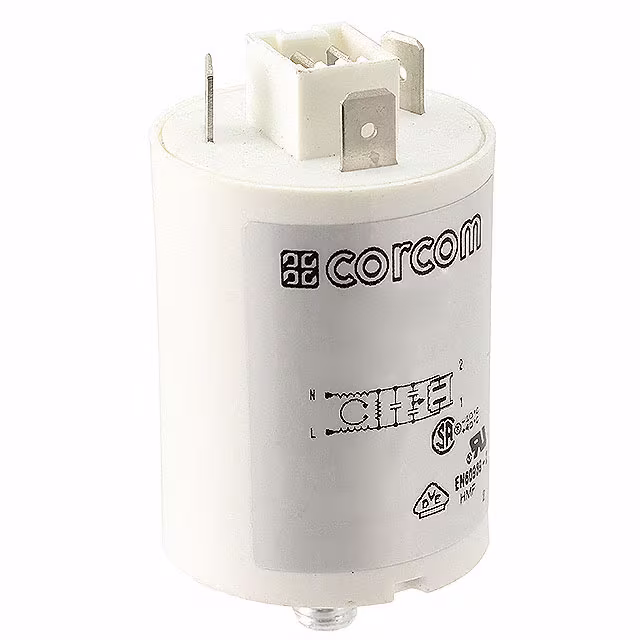

4-1609090-3LINE FILTER 250VAC 16A CHASS MNT |
7,174 |
|
Datasheet |
WG | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect, Threaded Post (M8) | 2mH |
|
4-1609090-1LINE FILTER 250VAC 16A CHASS MNT |
4,958 |
|
Datasheet |
WG | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect, Threaded Post (M8) | 500µH |
