Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5500.2636.01LINE FILTER 125V/250VAC 12A CHAS |
428 |
|
Datasheet |
FMAB NEO | Box | Active | Single Phase | Single Stage | - | 125V, 250V | - | - | 12 A | 50/60Hz | General Purpose | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | Quick Connect | - |
|
6609020-1LINE FILTER 250VAC 1A CHASS MNT |
204 |
|
Datasheet |
B | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 1 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.86mH |
|

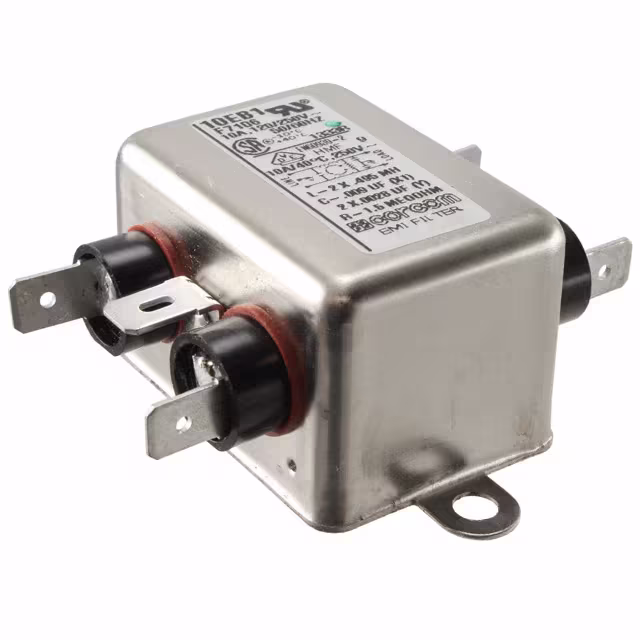

10EB1LINE FILTER 250VAC 10A CHASS MNT |
354 |
|
Datasheet |
B | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 495µH |
|
6609020-7LINE FILTER 250VAC 5A CHASS MNT |
216 |
|
Datasheet |
B | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 5 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 516µH |
|
5500.2644.07LINE FILTER 125V/250VAC 12A CHAS |
216 |
|
Datasheet |
FMAB NEO | Box | Active | Single Phase | Single Stage | - | 125V, 250V | - | - | 12 A | 50/60Hz | Medical | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | Quick Connect | - |
|
PLF-27D1-3A-WLINE FILTER 115V/250VAC 3A CHASS |
394 |
|
Datasheet |
PLF | Tray | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 3 A | 50 ~ 60Hz | - | cURus | -25°C ~ 85°C | Chassis Mount | Wire Leads | L1 - 420µH, L2 - 70µH |
|
|
PLF-22D1-6A-WLINE FILTER 115V/250VAC 6A CHASS |
236 |
|
Datasheet |
PLF | Tray | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 6 A | 50 ~ 60Hz | - | cURus | -25°C ~ 85°C | Chassis Mount | Wire Leads | 1.5mH |
|
6609020-6LINE FILTER 250VAC 3A CHASS MNT |
324 |
|
Datasheet |
B | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Wire Leads | 1.76mH |
|
|
PLF-21D3-10A-QLINE FILTER 115V/250VAC 10A CHAS |
298 |
|
Datasheet |
PLF | Tray | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 10 A | 50 ~ 60Hz | - | cURus | -25°C ~ 85°C | Chassis Mount | Quick Connect | 600µH |
|
|
5500.0255.1LINE FILTER 125V/250VAC 2A TH |
462 |
|
Datasheet |
5500 | Bulk | Active | Single Phase | Single Stage | - | 125V, 250V | - | - | 2 A | 50/60Hz | General Purpose | cURus, ENEC, VDE | -25°C ~ 85°C | Through Hole | PC Pins | 4mH |
|
5500.0455.1LINE FILTER 125V/250VAC 4A TH |
304 |
|
Datasheet |
5500 | Bulk | Active | Single Phase | Single Stage | - | 125V, 250V | - | - | 4 A | 50/60Hz | General Purpose | cURus, ENEC, VDE | -25°C ~ 85°C | Through Hole | PC Pins | 1.6mH |
|
|
5500.0655.3LINE FILTER 125V/250VAC 6A TH |
378 |
|
Datasheet |
5500 | Bulk | Active | Single Phase | Single Stage | - | 125V, 250V | - | - | 6 A | 50/60Hz | Medical | cURus, ENEC, VDE | -25°C ~ 85°C | Through Hole | PC Pins | 700µH |
|
6609028-6LINE FILTER 250VAC 3A CHASS MNT |
276 |
|
Datasheet |
K | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Wire Leads | 1.76mH |
|
|
FN420-2.5-13LINE FLTR 250VAC 2.5A CHASS MNT |
248 |
|
Datasheet |
FN 420 | Tray | Not For New Designs | Single Phase | Single Stage | - | 250V | - | - | 2.5 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | - | Chassis Mount | Quick Connect | 3.4mH |
|
|
FN420-4-13LINE FILTER 250VAC 4A CHASS MNT |
398 |
|
Datasheet |
FN 420 | Tray | Not For New Designs | Single Phase | Single Stage | - | 250V | - | - | 4 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | - | Chassis Mount | Quick Connect | 2mH |
|
|
FN422-2.5-13LINE FLTR 250VAC 2.5A CHASS MNT |
398 |
|
Datasheet |
FN 422 | Tray | Not For New Designs | Single Phase | Single Stage | - | 250V | - | - | 2.5 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | - | Chassis Mount | Quick Connect | 3.4mH |
|
|
FN422-4-13LINE FILTER 250VAC 4A CHASS MNT |
400 |
|
Datasheet |
FN 422 | Tray | Not For New Designs | Single Phase | Single Stage | - | 250V | - | - | 4 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | - | Chassis Mount | Quick Connect | 2mH |
|
|
FN420-6.5-13LINE FLTR 250VAC 6.5A CHASS MNT |
330 |
|
Datasheet |
FN 420 | Tray | Not For New Designs | Single Phase | Single Stage | - | 250V | - | - | 6.5 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | - | Chassis Mount | Quick Connect | 750µH |
|
|
FN422-6.5-13LINE FLTR 250VAC 6.5A CHASS MNT |
380 |
|
Datasheet |
FN 422 | Tray | Not For New Designs | Single Phase | Single Stage | - | 250V | - | - | 6.5 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | - | Chassis Mount | Quick Connect | 750µH |
|
FN2010A-16-06LINE FILTER 250VAC 16A CHASS MNT |
258 |
|
Datasheet |
FN 2010 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | DC ~ 400Hz | Safety | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 700µH |
