Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN3026HP-10-71LINE FILTER 10A DIN RAIL |
2,514 |
|
Datasheet |
FN 3026 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 10 A | 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | DIN Rail | Terminal Block | - |
|
3-138-324LINE FILTER 50A CHASSIS MOUNT |
2,108 |
|
Datasheet |
FMBC EP | Box | Active | Three Phase (Delta) | Two Stage | - | - | 520 V | 760 V | 50 A | 50 ~ 60Hz | General Purpose | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | Terminal Block, Threaded Post (M6) | - |
|

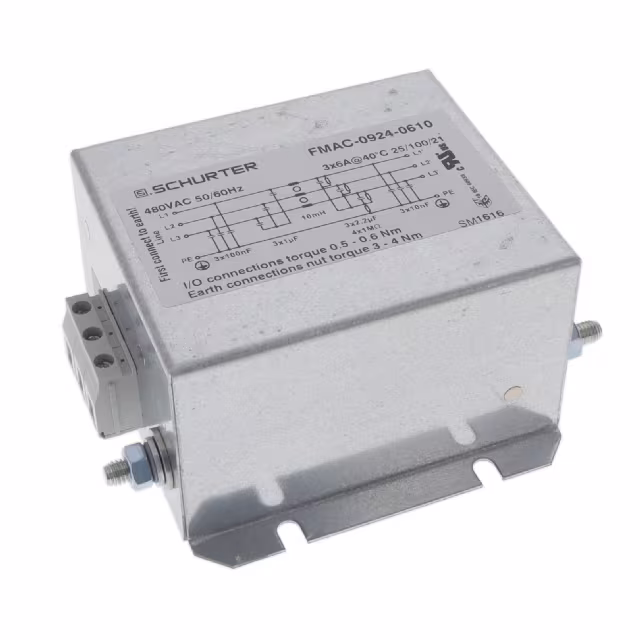

FMAC-0924-0610LINE FILTER 480V/520VAC 6A CHASS |
6,846 |
|
Datasheet |
FMAC | Bag | Active | Three Phase (Delta) | Single Stage | - | 480V, 520V | - | - | 6 A | 50/60Hz | Photovoltaic Inverter | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | 10mH |
|
FN3287-25-33-C21-R65LINE FILTER 530V/305VAC 25A CHAS |
8,684 |
|
Datasheet |
FN 3287 | Bulk | Active | Three Phase (Delta) | Two Stage | - | 530V, 305V | 305 V | 530 V | 25 A | DC ~ 60Hz | Inverters, Power Drive Systems | CE, ENEC, UR | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3287-25-33-C33-R65LINE FILTER 530V/305VAC 25A CHAS |
4,886 |
|
Datasheet |
FN 3287 | Box | Active | Three Phase (Delta) | Two Stage | - | 530V, 305V | 305 V | 530 V | 25 A | DC ~ 60Hz | Inverters, Power Drive Systems | - | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FMAC-091D-3610LINE FILTER 480VAC 36A CHASS MNT |
4,382 |
|
Datasheet |
FMAC ECO | Box | Active | Three Phase (Delta) | Single Stage | - | 480V | - | - | 36 A | 50/60Hz | Inverters, Power Drive Systems | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | 570µH |
|
FMBC-A91U-0712LINE FILTER 480V/520VAC 7A CHASS |
5,248 |
|
Datasheet |
FMBC NEO | Bulk | Active | Three Phase (Delta) | Two Stage | - | 480V, 520V | - | - | 7 A | 50/60Hz | General Purpose | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | L1 - 2.7mH, L2 - 5µH |
|
FN352Z-6-06LINE FILTER 250VAC 6A CHASS MNT |
3,100 |
|
Datasheet |
FN 352Z | Tray | Active | Single Phase | Two Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | General Purpose | UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | 3mH |
|
|
3-138-351LINE FILTER 36A CHASSIS MOUNT |
8,796 |
|
Datasheet |
FMBD EP | Box | Active | Three Phase (Wye) | Two Stage | - | - | 520 V | 760 V | 36 A | 50 ~ 60Hz | General Purpose | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | Terminal Block, Threaded Post (M6) | - |
|
FN3256H-8-29LINE FILTER 480VAC 8A CHASS MNT |
5,752 |
|
Datasheet |
FN 3256 | Tray | Active | Three Phase (Wye) | Single Stage | - | 480V | 300 V | 520 V | 8 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3288-25-33-C17-R65LINE FILTER 530V/305VAC 25A CHAS |
9,464 |
|
Datasheet |
FN 3288 | Box | Active | Three Phase (Delta) | Two Stage | - | 530V, 305V | 305 V | 530 V | 25 A | DC ~ 60Hz | Inverters, Power Drive Systems | CE, ENEC, UR | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3288-16-44-C21-R65LINE FILTER 530V/305VAC 16A CHAS |
4,060 |
|
Datasheet |
FN 3288 | Bulk | Active | Three Phase (Delta) | Two Stage | - | 530V, 305V | 305 V | 530 V | 16 A | DC ~ 60Hz | Inverters, Power Drive Systems | CE, ENEC, UR | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

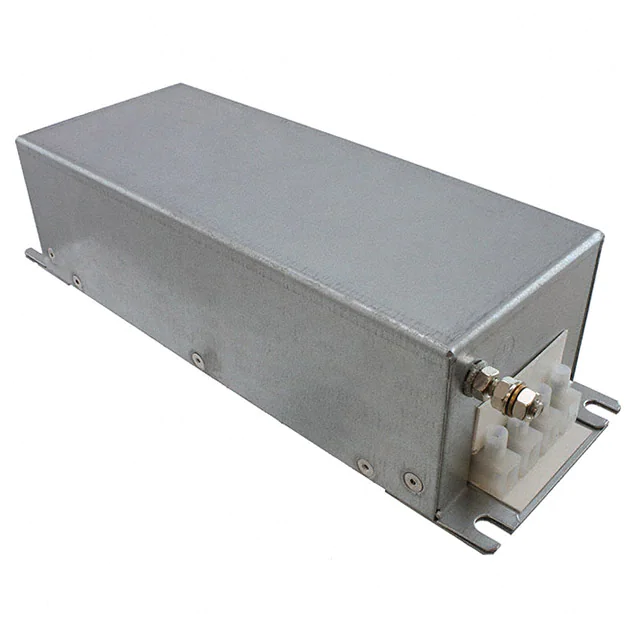

B84144A0025R120LINE FILTER 520V/300VAC 25A |
5,914 |
|
Datasheet |
B84144A | Bulk | Active | Three Phase (Wye) | Single Stage | - | 520V, 300V | - | - | 25 A | 50/60Hz | General Purpose | cUL, ENEC, UL | - | - | Terminal Block | - |
|

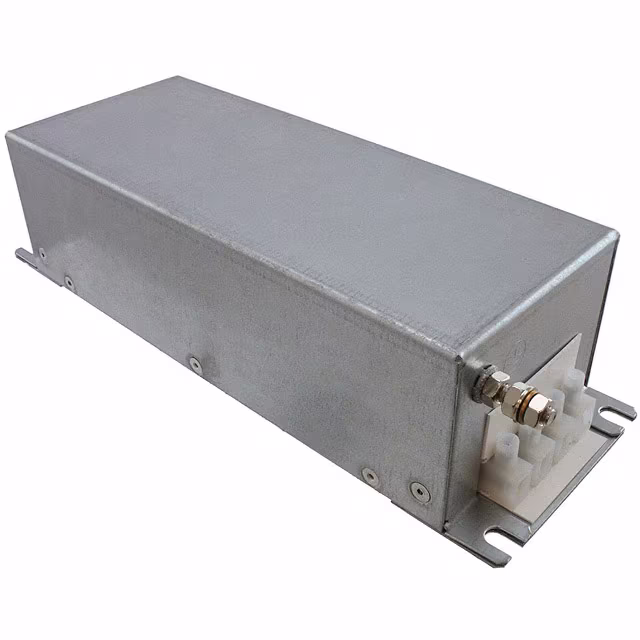

B84144A0016R120LINE FILTER 520V/300VAC 16A CHAS |
7,390 |
|
Datasheet |
B84144 | Tray | Active | Three Phase (Wye) | Single Stage | - | 520V, 300V | - | - | 16 A | 50/60Hz | General Purpose | cUR, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

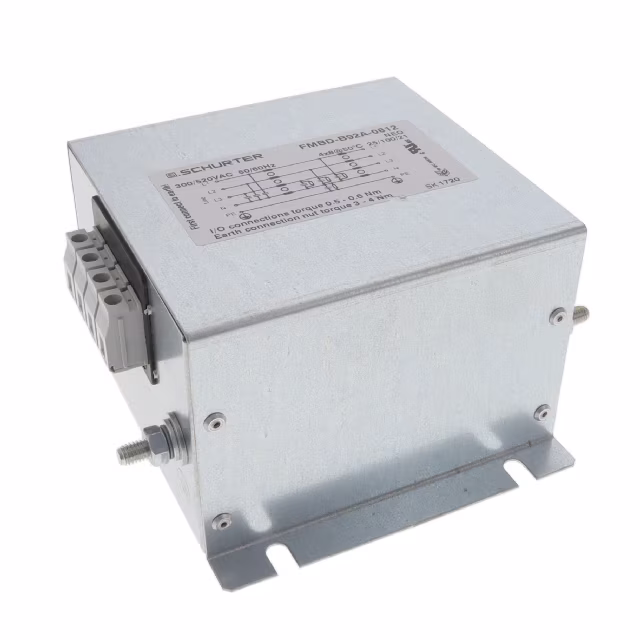

FMBD-B92A-0812LINE FILTER 300V/520VAC 8A CHASS |
3,654 |
|
Datasheet |
FMBD NEO | Bulk | Active | Three Phase (Wye) | Two Stage | - | 300V, 520V | - | - | 8 A | 50/60Hz | General Purpose | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | L1 - 2mH, L2 - 4µH |
|

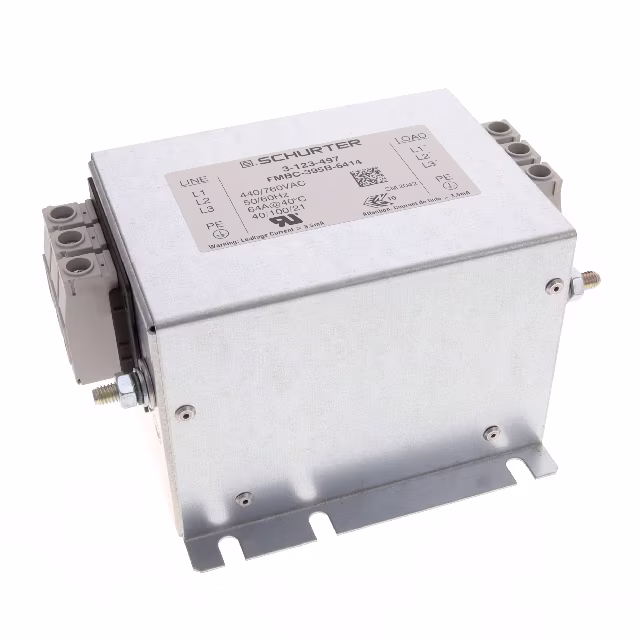

FMBC-395B-6414LINE FILTER 760VAC 64A CHASS MNT |
9,210 |
|
Datasheet |
FMBC EP | Box | Active | Three Phase (Delta) | Two Stage | - | 760V | - | - | 64 A | 50/60Hz | General Purpose | cURus, ENEC, UL, VDE | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

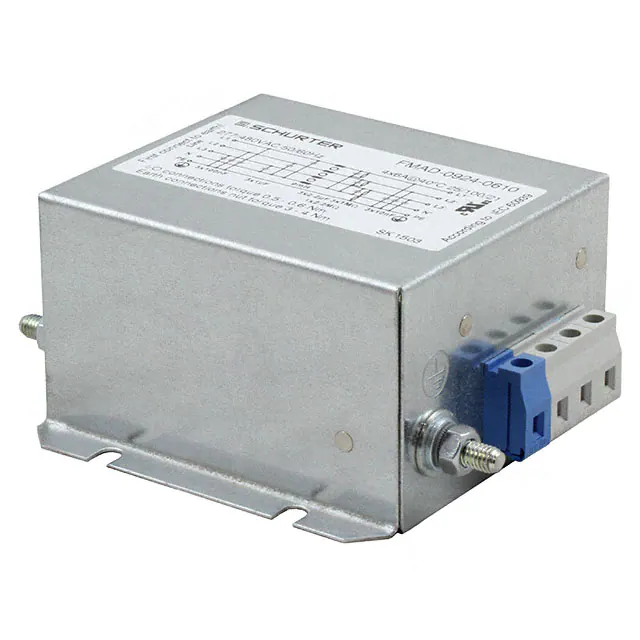

FMAD-0924-0610LINE FILTER 277V/480VAC 6A CHASS |
5,882 |
|
Datasheet |
FMAD | Bag | Active | Three Phase (Wye) | Single Stage | - | 277V, 480V | - | - | 6 A | 50/60Hz | General Purpose | cURus, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | 9mH |
|
FN3288HVIT-10-44-C26-R60LINE FILTER 760VAC 10A CHASS MNT |
5,884 |
|
Datasheet |
FN 3288 | Bulk | Active | Three Phase (Delta) | Two Stage | - | 760V | - | - | 10 A | DC ~ 60Hz | Inverters, Power Drive Systems | CE, ENEC, UR | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN3288HVIT-10-44-C42-R60LINE FILTER 760VAC 10A CHASS MNT |
8,460 |
|
Datasheet |
FN 3288 | Box | Active | Three Phase (Delta) | Two Stage | - | 760V | - | - | 10 A | DC ~ 60Hz | Inverters, Power Drive Systems | - | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN354-6-05LINE FILTER 6A CHASSIS MOUNT |
7,780 |
|
Datasheet |
FN 354 | Tray | Not For New Designs | Three Phase (Wye) | Two Stage | - | - | 250 V | 440 V | 6 A | DC ~ 60Hz | General Purpose | CSA, SEMKO | -25°C ~ 100°C | Chassis Mount | Quick Connect | - |
