Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMI-23-30-6LINE FILTER 250VAC 30A CHASS MNT |
9,716 |
|
Datasheet |
AMI-23 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 30 A | DC ~ 400Hz | General Purpose | CE, cURus | -25°C ~ 100°C | Chassis Mount | Threaded Post (M4) | 2mH |
|
|
TB1-10A080HLINE FILTER 250VAC/VDC 10A CHASS |
5,854 |
|
Datasheet |
TB1 | Box | Active | Single Phase | Two Stage | 250V | 250V | - | - | 10 A | 50 ~ 60Hz | General Purpose | CE, cCSAus, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
16DPGG5BLINE FILTER 115V/250VAC 16A CHAS |
4,004 |
|
Datasheet |
DP | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 16 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | - |
|
|
TB1-10A0D0HLINE FILTER 250VAC/VDC 10A CHASS |
3,492 |
|
Datasheet |
TB1 | Box | Active | Single Phase | Two Stage | 250V | 250V | - | - | 10 A | 50 ~ 60Hz | General Purpose | CE, cCSAus, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
2-6609092-3LINE FILTER 125/280VAC 3.9A CHAS |
6,202 |
|
Datasheet |
FL | Box | Obsolete | Single Phase | Single Stage | - | 125V, 280V | - | - | 3.9 A | 50/60Hz | Lighting | UL | -10°C ~ 40°C | Chassis Mount | Wire Leads | 180µH |
|
|
AMI-22-30-6LINE FILTER 250VAC 30A CHASS MNT |
7,594 |
|
Datasheet |
AMI-22 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 30 A | DC ~ 400Hz | General Purpose | CE, cURus | -25°C ~ 100°C | Chassis Mount | Threaded Post (M4) | 670µH |
|
3ER7MLINE FILTER 250VAC 3A CHASS MNT |
4,894 |
|
Datasheet |
R | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | IEC 320-C14, Quick Connect | - |
|
|
ES1-T30LINE FILTER 250VAC/VDC 30A CHASS |
4,796 |
|
Datasheet |
ES1 | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 30 A | 50 ~ 60Hz | General Purpose | CQC, CSA, cURus, TUV | -25°C ~ 85°C | Chassis Mount | Threaded Post (M4) | - |
|
|
AMI-26-20-1LINE FILTER 250VAC 20A CHASS MNT |
6,228 |
|
Datasheet |
AMI-26 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | General Purpose | CE, cURus | -25°C ~ 100°C | Chassis Mount | - | 1.2mH |
|
AMI-27B-10-1LINE FILTER 250VAC 10A CHASS MNT |
3,140 |
|
Datasheet |
AMI-27 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 10 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 9mH |
|
|
TB1-16A0D0HLINE FILTER 250VAC/VDC 16A CHASS |
9,692 |
|
Datasheet |
TB1 | Box | Active | Single Phase | Two Stage | 250V | 250V | - | - | 16 A | 50 ~ 60Hz | General Purpose | CE, cCSAus, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB1-16A080HLINE FILTER 250VAC/VDC 16A CHASS |
8,196 |
|
Datasheet |
TB1 | Box | Active | Single Phase | Two Stage | 250V | 250V | - | - | 16 A | 50 ~ 60Hz | General Purpose | CE, cCSAus, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
AMI-27-10-1LINE FILTER 250VAC 10A CHASS MNT |
2,756 |
|
Datasheet |
AMI-27 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 10 A | DC ~ 400Hz | General Purpose | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 9mH |
|
|
TB1-20A080HLINE FILTER 250VAC/VDC 20A CHASS |
9,222 |
|
Datasheet |
TB1 | Box | Active | Single Phase | Two Stage | 250V | 250V | - | - | 20 A | 50 ~ 60Hz | General Purpose | CE, cCSAus, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB1-30A080HLINE FILTER 250VAC/VDC 30A CHASS |
7,234 |
|
Datasheet |
TB1 | Box | Active | Single Phase | Two Stage | 250V | 250V | - | - | 30 A | 50 ~ 60Hz | General Purpose | CE, cCSAus, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB1-20A0D0HLINE FILTER 250VAC/VDC 20A CHASS |
7,652 |
|
Datasheet |
TB1 | Box | Active | Single Phase | Two Stage | 250V | 250V | - | - | 20 A | 50 ~ 60Hz | General Purpose | CE, cCSAus, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

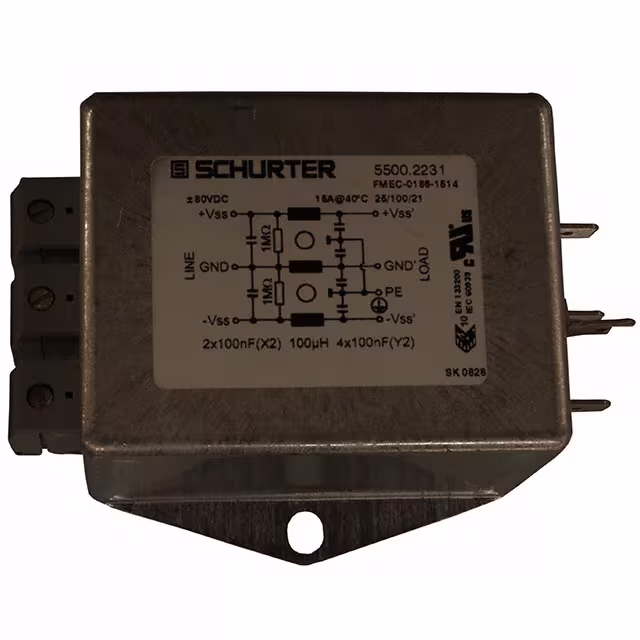

5500.2231LINE FILTER 80VDC 15A CHASS MNT |
4,372 |
|
Datasheet |
FMEC | Box | Last Time Buy | DC | Single Stage | 80V | - | - | - | 15 A | - | General Purpose | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 100µH |
|
|
TB1-40A080HLINE FILTER 250VAC/VDC 40A CHASS |
3,206 |
|
Datasheet |
TB1 | Box | Active | Single Phase | Two Stage | 250V | 250V | - | - | 40 A | 50 ~ 60Hz | General Purpose | CE, cCSAus, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

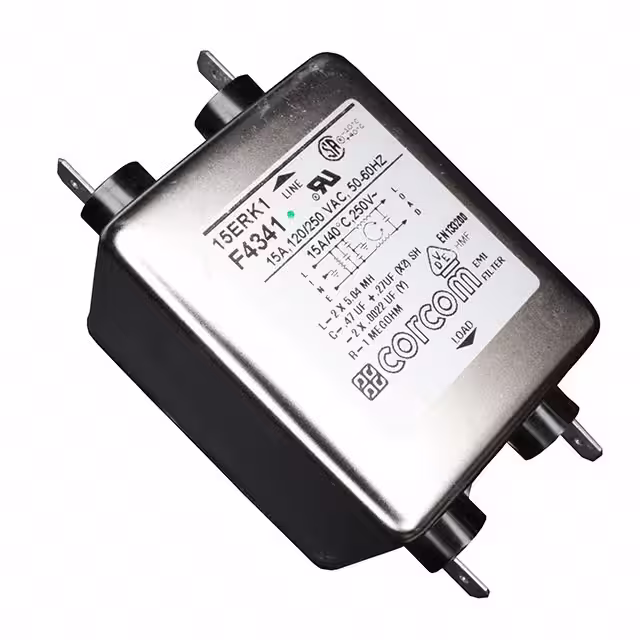

2-1609089-6LINE FILTER 250VAC 15A CHASS MNT |
6,242 |
|
Datasheet |
RK | Box | Last Time Buy | Single Phase | Single Stage | - | 250V | - | - | 15 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 5.04mH |
|
|
AMI-29B-16-1LINE FILTER 250VAC 16A CHASS MNT |
8,476 |
|
Datasheet |
AMI-29 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 16 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | - | 8mH |
