Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CN2-F60LINE FILTER 250VAC/VDC 6A CHASS |
6,184 |
|
Datasheet |
CN | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 6 A | 50 ~ 60Hz | General Purpose | CSA, TUV, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|
|
FC-L04QBLINE FILTER 430VDC 230VAC 4A TH |
4,490 |
|
Datasheet |
FC-LxxQB | Tray | Not For New Designs | Single Phase | Single Stage | 430V | 230V | 4 kV | 2 kV | 4 A | 50 ~ 60Hz | General Purpose | CE, UKCA | -40°C ~ 105°C | Through Hole | PC Pins | - |
|
EMC-05ALINE FILTER 85V-305VAC 0.5A TH |
6,452 |
|
Datasheet |
- | Tray | Not For New Designs | Single Phase | Single Stage | - | 85V ~ 305V | - | - | 500 mA | 47Hz, 63Hz | General Purpose | - | -40°C ~ 85°C | Through Hole | PC Pins | - |
|
VFM-03-DLINE FILTER 80VDC 3A TH |
6,998 |
|
Datasheet |
VFM-03 | Tube | Not For New Designs | DC | Single Stage | 80V | - | - | - | 3 A | - | General Purpose | - | -40°C ~ 85°C | Through Hole | PC Pins | - |
|
|
CA5-W43LINE FILTER 250VAC/VDC 5A CHASS |
6,330 |
|
Datasheet |
CA5 | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 5 A | 50 ~ 60Hz | General Purpose | CSA, TUV, UR | -25°C ~ 85°C | Chassis Mount | Wire Leads | - |
|
|
CA5-V23LINE FILTER 250VAC/VDC 1.5A CHAS |
5,462 |
|
Datasheet |
CA5 | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 1.5 A | 50 ~ 60Hz | General Purpose | CSA, TUV, UR | -25°C ~ 85°C | Chassis Mount | Wire Leads | - |
|
|
CA5-V33LINE FILTER 250VAC/VDC 3A CHASS |
7,286 |
|
Datasheet |
CA5 | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 3 A | 50 ~ 60Hz | General Purpose | CSA, TUV, UR | -25°C ~ 85°C | Chassis Mount | Wire Leads | - |
|
5003.025B.1LINE FILTER 125VDC 6A PANEL MNT |
6,328 |
|
Datasheet |
5003 | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 6 A | - | Signal | cURus, ENEC, UL, VDE | -25°C ~ 85°C | Panel Mount | PC Pins | 800µH |
|
5003.016B.1LINE FILTER 125VDC 3A PANEL MNT |
3,344 |
|
Datasheet |
5003 | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 3 A | - | Signal | cURus, ENEC, UL, VDE | -25°C ~ 85°C | Panel Mount | PC Pins | 4mH |
|
AMI-M11A-1-10-BLINE FILTER 250VAC 10A CHASS MNT |
8,958 |
|
Datasheet |
AMI-M11A | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 495µH |
|
5003.0111.1LINE FILTER 125VDC 3A PANEL MNT |
8,874 |
|
Datasheet |
5003 | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 3 A | - | Signal | cURus, ENEC, UL, VDE | -25°C ~ 85°C | Panel Mount | Quick Connect | 4mH |
|
5003.0211.1LINE FILTER 125VDC 6A PANEL MNT |
5,780 |
|
Datasheet |
5003 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
5003.0221.1LINE FILTER 125VDC 6A PANEL MNT |
7,912 |
|
Datasheet |
5003 | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 6 A | - | Signal | cURus, ENEC, UL, VDE | -25°C ~ 85°C | Panel Mount | Quick Connect | 800µH |
|
5003.0411.1LINE FILTER 125VDC 15A PANEL MNT |
4,218 |
|
Datasheet |
5003 | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 15 A | - | Signal | cURus, ENEC, UL, VDE | -25°C ~ 85°C | Panel Mount | Quick Connect | 100µH |
|

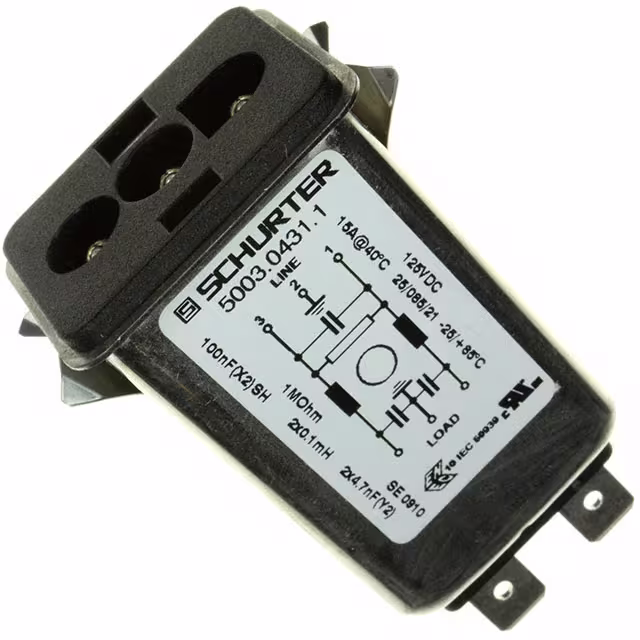

5003.0431.1LINE FILTER 125VDC PANEL MOUNT |
6,442 |
|
Datasheet |
5003 | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | - | - | Signal | cURus, ENEC, UL, VDE | -25°C ~ 85°C | Panel Mount | - | - |
|
5003.0321.1LINE FILTER 125VDC 10A PANEL MNT |
5,450 |
|
Datasheet |
5003 | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 10 A | - | Signal | cURus, ENEC, UL, VDE | -25°C ~ 85°C | Panel Mount | Quick Connect | 400µH |
|
5003.1336.1LINE FILTER 125VDC 10A PANEL MNT |
3,230 |
|
Datasheet |
5003 | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 10 A | - | Signal | cURus, ENEC, UL, VDE | -25°C ~ 85°C | Panel Mount | Wire Leads | 400µH |
|
|
FC-L03WLINE FILTER 430VDC 230VAC 3A DIN |
8,346 |
|
Datasheet |
FC-L03Wx | Box | Not For New Designs | Single Phase | Single Stage | 430V | 230V | 4 kV | 2 kV | 3 A | 50 ~ 60Hz | General Purpose | CE, UKCA | -40°C ~ 85°C | DIN Rail | Terminal Block | - |
|
|
IR-0622HLINE FLTR 250VAC/VDC 6A PANEL |
4,402 |
|
Datasheet |
IR | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 6 A | 50 ~ 60Hz | General Purpose | CSA, TUV, UR | -25°C ~ 85°C | Panel Mount | IEC 320-C14, Quick Connect | - |
|
5003.1211.1LINE FILTER 125VDC 6A PANEL MNT |
3,358 |
|
Datasheet |
5003 | Bulk | Obsolete | Single Phase | Single Stage | 125V | - | - | - | 6 A | - | Signal | cURus, ENEC, UL, VDE | -25°C ~ 85°C | Panel Mount | Quick Connect | 800µH |
