Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Configuration | Current | Voltage | Voltage - Isolation | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM75CLA120MOD IPM L-SERIES 1200V 75A |
7,934 |
|
- |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 75 A | 1.2 kV | 2500VDC | - | - | Chassis Mount |
|
|
PM75CSA120MOD IPM 3-PHASE IGBT 1200V 75A |
18,444 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 75 A | 1.2 kV | 2500Vrms | - | - | Chassis Mount |
|
|
PM75DSA120MOD IPM 3PHASE IGB HF 1200V 75A |
16,418 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 1 Phase Inverter | 75 A | 1.2 kV | 2500Vrms | - | - | Chassis Mount |
|
|
PM75RLA060MOD IPM L-SERIES 600V 75A |
6,762 |
|
- |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 75 A | 600 V | 2500VDC | - | - | Chassis Mount |
|
|
PM75RLB060MOD IPM L-SERIES 600V 75A |
12,560 |
|
- |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 75 A | 600 V | 2500VDC | - | - | Chassis Mount |
|
|
PM75RLB120MOD IPM L-SERIES 1200V 75A |
6,510 |
|
- |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 75 A | 1.2 kV | 2500VDC | - | - | Chassis Mount |
|
|
PM75RSA060MOD IPM 3PHASE IGBT 600V 75A |
6,872 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 75 A | 600 V | 2500Vrms | - | - | Chassis Mount |
|
|
PM75RSK060MOD IPM HF 600V 75A |
10,830 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 75 A | 600 V | 2500Vrms | - | - | Chassis Mount |
|
|
PM800HSA120MOD IPM SINGLE HF 1200V 800A |
13,536 |
|
- |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | Half Phase Inverter | 800 A | 1.2 kV | 2500Vrms | - | - | Chassis Mount |
|
|
PS11011MOD IPM 3PHASE IGBT 600V 2A |
15,190 |
|
Datasheet |
- | 40-PowerDIP Module (2.835", 72.00mm), 33 Leads | Bulk | Obsolete | IGBT | 3 Phase | 2 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
PS11012MOD IPM 3PHASE IGBT 600V 4A |
15,340 |
|
Datasheet |
- | 40-PowerDIP Module (2.835", 72.00mm), 33 Leads | Bulk | Obsolete | IGBT | 3 Phase | 4 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
PS11013MOD IPM 3PHASE IGBT 600V 8A |
11,134 |
|
Datasheet |
- | 40-PowerDIP Module (2.835", 72.00mm), 33 Leads | Bulk | Obsolete | IGBT | 3 Phase | 8 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
PS11014MOD IPM 3PHASE IGBT 600V 15A |
5,646 |
|
Datasheet |
- | 40-PowerDIP Module (2.835", 72.00mm), 33 Leads | Bulk | Obsolete | IGBT | 3 Phase | 15 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
PS11015MOD IPM 3PHASE IGBT 600V 20A |
6,836 |
|
Datasheet |
- | 40-PowerDIP Module (2.835", 72.00mm), 33 Leads | Bulk | Obsolete | IGBT | 3 Phase | 20 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
PS11016MOD IPM 3PHASE IGBT 600V 30A |
13,238 |
|
Datasheet |
- | 36-PowerDIP Module (3.100", 78.75mm) | Bulk | Obsolete | IGBT | 3 Phase | 30 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
PS11017MOD IPM 3PHASE IGBT 600V 50A |
9,686 |
|
Datasheet |
- | 36-PowerDIP Module (2.480", 63.00mm) | Bulk | Obsolete | IGBT | 3 Phase | 50 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
PS11032MOD IPM 3PHASE IGBT 600V 4A |
4,712 |
|
Datasheet |
Intellimod™ | 30-PowerDIP Module (1.996", 50.70mm) | Bulk | Obsolete | IGBT | 3 Phase | 4 A | 600 V | 2500VDC | - | - | Through Hole |
|

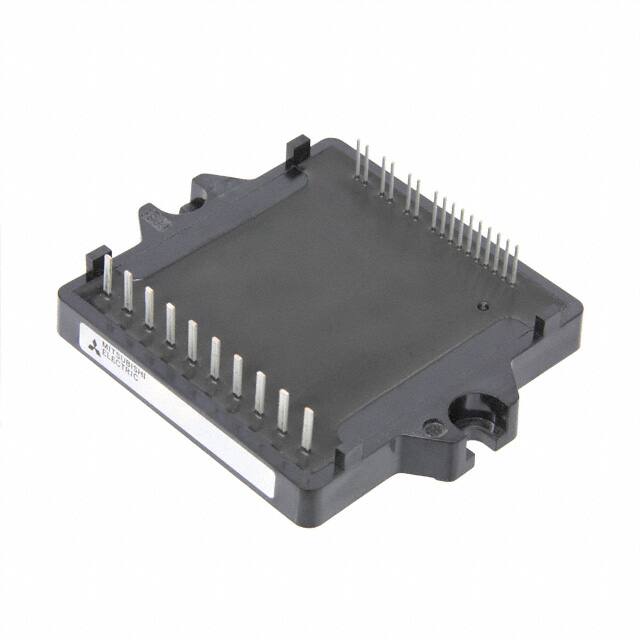

PS11033MOD IPM 3PHASE IGBT 600V 8A |
6,508 |
|
Datasheet |
Intellimod™ | 30-PowerDIP Module (1.996", 50.70mm) | Bulk | Obsolete | IGBT | 3 Phase | 8 A | 600 V | 2500VDC | - | - | Through Hole |
|
|
PS11034MOD IPM 3PHASE IGBT 600V 15A |
14,402 |
|
Datasheet |
Intellimod™ | 30-PowerDIP Module (1.996", 50.70mm) | Bulk | Obsolete | IGBT | 3 Phase | 15 A | 600 V | 2500VDC | - | - | Through Hole |
|
|
PS11035MOD IPM 3PHASE IGBT 600V 20A |
16,484 |
|
Datasheet |
Intellimod™ | 30-PowerDIP Module (1.996", 50.70mm) | Bulk | Obsolete | IGBT | 3 Phase | 20 A | 600 V | 2500VDC | - | - | Through Hole |
