Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Configuration | Current | Voltage | Voltage - Isolation | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NV6127-RAIC PWR GANFAST 650V 12OHM 6X8QFN |
726 |
|
Datasheet |
GaNFast™ | 30-PowerVQFN | Tape & Reel (TR) | Active | MOSFET | Half Bridge | 12 A | 650 V | - | - | - | Surface Mount |
|
NV6138AGANFAST WITH GANSENSE, SINGLE, 6 |
9,812 |
|
Datasheet |
GaNFast™ | 30-PowerVQFN | Tape & Reel (TR) | Active | MOSFET | Full Bridge | 12 A | 700 V | - | - | - | Surface Mount |
|
|
NV6138A-RAGANFAST WITH GANSENSE, SINGLE, 6 |
2,098 |
|
Datasheet |
GaNFast™ | 30-PowerVQFN | Tape & Reel (TR) | Active | MOSFET | Full Bridge | 12 A | 700 V | - | - | - | Surface Mount |
|
|
IM241S6T2JAKMA1CIPOS MICRO PG-DIP-23 |
480 |
|
Datasheet |
CIPOS™ | 23-DIP Module (0.573", 14.55mm) | Tube | Active | IGBT | 3 Phase Inverter | 2 A | 600 V | 2000Vrms | - | - | Through Hole |
|
STGIPQ4C60T-HZSLLIMM NANO 2ND SERIES IPM, 3-PH |
1,400 |
|
Datasheet |
SLLIMM nano - 2nd | 26-PowerDIP Module (0.846", 21.48mm) | Tube | Active | IGBT | 3 Phase Inverter | 6 A | 600 V | 1500Vrms | - | - | Through Hole |
|

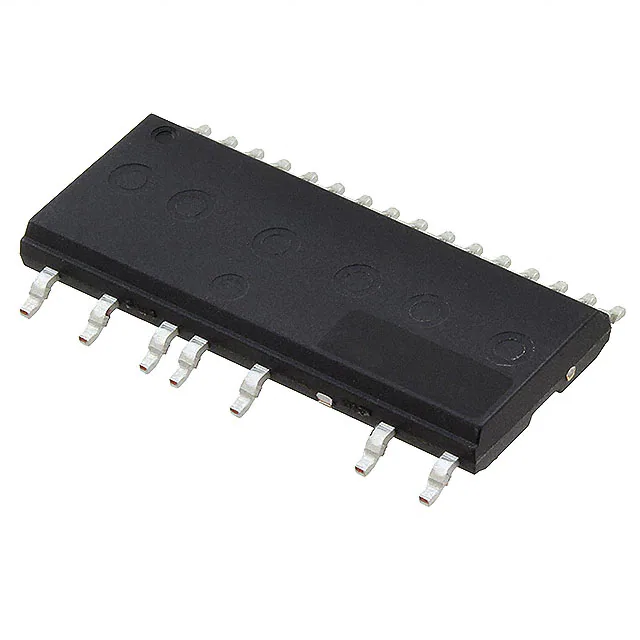

FSB50250ASMODULE SPM 500V 1.2A 23PWRSMD |
850 |
|
Datasheet |
Motion SPM® 5 | 23-PowerSMD Module, Gull Wing | Tape & Reel (TR) | Active | MOSFET | 3 Phase | 1.2 A | 500 V | 1500Vrms | - | - | Surface Mount |
|
|
NV6158-RAGANFAST WITH GANSENSE, SINGLE, 6 |
1,340 |
|
Datasheet |
GaNFast™ | 24-PowerVQFN | Tape & Reel (TR) | Active | MOSFET | Full Bridge | 12 A | 700 V | - | - | - | Surface Mount |
|
|
IM241M6S1BAUMA1CIPOS MICRO PG-SOP-23 |
1,000 |
|
Datasheet |
CIPOS™ | 23-PowerSMD Module, Gull Wing | Tape & Reel (TR) | Active | IGBT | 3 Phase Inverter | 4 A | 600 V | 2000Vrms | - | - | Surface Mount |
|
|
NFA50460R47IPM SPM5 V4 RC 600V 4A |
1,572 |
|
Datasheet |
Motion SPM® 5 | - | Tape & Reel (TR) | Active | IGBT | 3 Phase Inverter | 4 A | 600 V | 1500Vrms | - | - | Surface Mount |
.jpg)
|
STGIPN3H60ATIGBT BIPO 600V 3A DIP |
1,324 |
|
Datasheet |
SLLIMM™ | 26-PowerDIP Module (0.846", 21.48mm) | Tube | Active | IGBT | 3 Phase Inverter | 3 A | 600 V | 1000Vrms | - | - | Through Hole |
|
|
NFAQ0560R46TDIPS6 V3 RC, 600V/5A SHORT LEAD |
656 |
|
Datasheet |
Compact IPM | 38-PowerDIP Module (0.610", 24.00mm), 24 Leads | Tube | Active | IGBT | 3 Phase Inverter | 5 A | 600 V | 2000Vrms | - | - | Through Hole |
|
|
IM323L6G2XKMA1CIPOS TINY 600V 15A THREE-PHASE |
446 |
|
Datasheet |
CIPOS™ | 26-PowerDIP Module (1.043", 26.50mm) | Tube | Active | IGBT | 3 Phase Inverter | 15 A | 600 V | 2000Vrms | - | - | Through Hole |
|
|
IM323L6GXKMA1CIPOS TINY 600V 15A THREE-PHASE |
406 |
|
Datasheet |
CIPOS™ | 26-PowerDIP Module (1.043", 26.50mm) | Tube | Active | IGBT | 3 Phase Inverter | 15 A | 600 V | 2000Vrms | - | - | Through Hole |
|
NFAQ0860L36TINTELLIGENT POWER MODULE (IPM), |
1,448 |
|
Datasheet |
- | 38-PowerDIP Module (0.610", 24.00mm), 24 Leads | Tube | Active | IGBT | 3 Phase Inverter | 8 A | 600 V | 2000Vrms | - | - | Through Hole |
|
|
NFAQ0860L33TINTELLIGENT POWER MODULE (IPM), |
800 |
|
Datasheet |
- | 38-PowerDIP Module (0.610", 24.00mm), 24 Leads | Tube | Active | IGBT | 3 Phase Inverter | 8 A | 600 V | 2000Vrms | - | - | Through Hole |
|
|
NFAQ0560R43TIGBT 3P 600V 38DIP |
614 |
|
Datasheet |
- | 38-PowerDIP Module (0.610", 24.00mm), 24 Leads | Bulk | Active | IGBT | 3 Phase Inverter | - | 600 V | 2000Vrms | - | - | Through Hole |
|
IFCM15P60GDXKMA1IFPS MODULE 650V 30A 24PWRDIP |
534 |
|
Datasheet |
CIPOS™ | 24-PowerDIP Module (1.028", 26.10mm) | Tube | Active | IGBT | 3 Phase Inverter | 30 A | 650 V | 2000Vrms | - | - | Through Hole |
|
|
NFAP0560L3TTINTELLIGENT POWER MODULE (IPM), |
240 |
|
Datasheet |
- | 29-PowerSSIP Module, 21 Leads, Formed Leads | Tray | Not For New Designs | IGBT | 3 Phase Inverter | 5 A | 600 V | 2000Vrms | - | - | Through Hole |
|

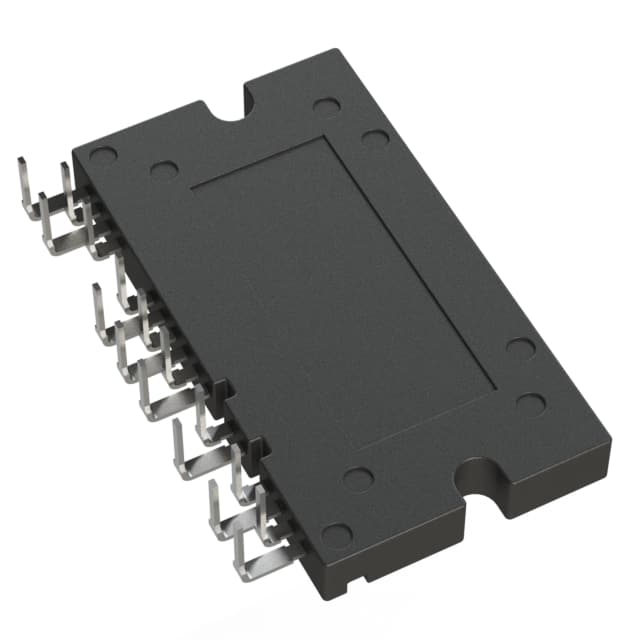

NXV65HR82DS2AUTOMOTIVE POWER MODULE, H-BRIDG |
250 |
|
Datasheet |
- | 16-SSIP Exposed Pad, Formed Leads | Tube | Active | MOSFET | H-Bridge | 26 A | 650 V | 5000Vrms | Automotive | AEC-Q101 | Through Hole |
|
NFAL7565L4BTIPM 650V 75A |
5,564 |
|
Datasheet |
SPM® | 31-PowerDIP Module (1.385", 35.17mm) | Tube | Active | IGBT | 3 Phase Inverter | 75 A | 650 V | 2500Vrms | - | - | Through Hole |
