Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
544DABB000770BCGRDIFFERENTIAL/SINGLE-ENDED; ANY F |
19,024 |
|
Datasheet |
Ultra™ Si544 | 8-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | CML | 1.8V, 2.5V, 3.3V | ±20ppm | - | -40°C ~ 85°C | - | 111mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.052" (1.33mm) |
|
|
544DABB000856BCGRDIFFERENTIAL/SINGLE-ENDED; ANY F |
7,026 |
|
Datasheet |
Ultra™ Si544 | 8-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | CML | 1.8V, 2.5V, 3.3V | ±20ppm | - | -40°C ~ 85°C | - | 111mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.052" (1.33mm) |
|
TTEALLSANF-32.512000XTAL OSC VCTCXO 32.5120MHZ SNWV |
6,052 |
|
Datasheet |
TT | 4-SMD, No Lead Exposed Pad | Strip | Active | Crystal | VCTCXO | 32.512 MHz | - | Clipped Sine Wave | 3.3V | ±370ppb | - | -40°C ~ 85°C | - | 3.5mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.083" (2.10mm) |
|

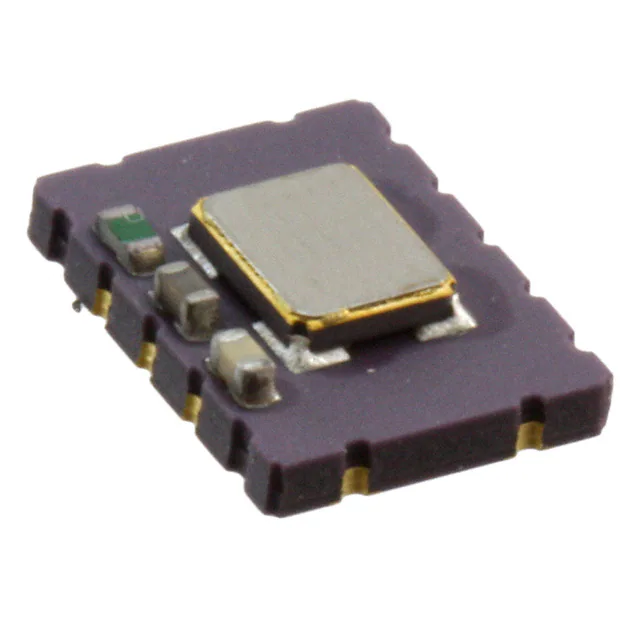

KT7050A20000KAW33TADXTAL OSC TCXO 20.0000MHZ CMOS |
5,188 |
|
- |
KT7050 | 8-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | TCXO | 20 MHz | Enable/Disable | CMOS | 3.3V | ±280ppb | - | -40°C ~ 85°C | - | 5mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.067" (1.70mm) |
|
|
TW0723WA7230200/25/100/3.3/3.2X2.5 |
19,788 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TW0722WA7240200/25/100/3.3/2.5X2.0(NRH) |
15,374 |
|
- |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TW0721WA7240148.5/25/100/3.3/2.5X2.0(NRH) |
13,504 |
|
- |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TW0708WA7230148.5/25/100/3.3/3.2X2.5 |
17,404 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TW0628WA7230100/25/100/3.3/3.2X2.5 |
10,504 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
TWETALJANF-20.000000XTAL OSC TCXO 20.0000MHZ CMOS |
12,312 |
|
Datasheet |
TW | 4-SMD, No Lead | Strip | Active | Crystal | TCXO | 20 MHz | - | CMOS | 3.3V | ±500ppb | - | -40°C ~ 85°C | - | 8mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.065" (1.65mm) |
|
|
TWEAALJANF-10.000000XTAL OSC VCTCXO 10.0000MHZ CMOS |
10,052 |
|
Datasheet |
TW | 4-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 10 MHz | - | CMOS | 3.3V | ±500ppb | - | -40°C ~ 85°C | - | 8mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.065" (1.65mm) |
|
|
TWEAALJANF-19.200000XTAL OSC VCTCXO 19.2000MHZ CMOS |
9,320 |
|
Datasheet |
TW | 4-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 19.2 MHz | - | CMOS | 3.3V | ±500ppb | - | -40°C ~ 85°C | - | 8mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.065" (1.65mm) |
|
|
TWEAKCSANF-25.000000XTAL OSC VCTCXO 25.0000MHZ SNWV |
12,444 |
|
Datasheet |
TW | 4-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 25 MHz | - | Clipped Sine Wave | 3.3V | ±280ppb | - | -20°C ~ 70°C | - | 3.5mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.065" (1.65mm) |
|
|
TWECADSANF-40.000000XTAL OSC VCTCXO 40.0000MHZ SNWV |
14,260 |
|
Datasheet |
TW | 4-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 40 MHz | - | Clipped Sine Wave | 3.3V | ±500ppb | - | -30°C ~ 85°C | - | 3.5mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.065" (1.65mm) |
|
|
TWECBLJANF-10.000000XTAL OSC VCTCXO 10.0000MHZ CMOS |
13,970 |
|
Datasheet |
TW | 4-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 10 MHz | - | CMOS | 3.3V | ±1ppm | - | -40°C ~ 85°C | - | 8mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.065" (1.65mm) |
|
|
TWETADSANF-10.000000XTAL OSC TCXO 10.0000MHZ SNWV |
7,070 |
|
Datasheet |
TW | 4-SMD, No Lead | Strip | Active | Crystal | TCXO | 10 MHz | - | Clipped Sine Wave | 3.3V | ±500ppb | - | -30°C ~ 85°C | - | 3.5mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.065" (1.65mm) |
|
|
TWEAKLJANF-10.000000XTAL OSC VCTCXO 10.0000MHZ CMOS |
5,438 |
|
Datasheet |
TW | 4-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 10 MHz | - | CMOS | 3.3V | ±280ppb | - | -40°C ~ 85°C | - | 8mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.065" (1.65mm) |
|
|
TWEAKLJANF-19.440000XTAL OSC VCTCXO 19.4400MHZ CMOS |
17,986 |
|
Datasheet |
TW | 4-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 19.44 MHz | - | CMOS | 3.3V | ±280ppb | - | -40°C ~ 85°C | - | 8mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.065" (1.65mm) |
|
|
TWEBKLSANF-10.000000XTAL OSC VCTCXO 10.0000MHZ SNWV |
5,618 |
|
Datasheet |
TW | 4-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 10 MHz | - | Clipped Sine Wave | 3.3V | ±280ppb | - | -40°C ~ 85°C | - | 3.5mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.065" (1.65mm) |
|
|
TWETKLJANF-20.000000XTAL OSC TCXO 20.0000MHZ CMOS |
18,128 |
|
Datasheet |
TW | 4-SMD, No Lead | Strip | Active | Crystal | TCXO | 20 MHz | - | CMOS | 3.3V | ±280ppb | - | -40°C ~ 85°C | - | 8mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.065" (1.65mm) |
