Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-3225Q-33-260-BS-TRXTAL OSC XO 26.0000MHZ HCMOS SMD |
246 |
|
Datasheet |
ECS-3225Q | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 26 MHz | Enable/Disable | HCMOS | 3.3V | ±50ppm | - | -40°C ~ 125°C | - | 13mA | AEC-Q200 | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
CB3LV-3C-12M352000XTAL OSC XO 12.3520MHZ HCMOS TTL |
534 |
|
Datasheet |
CB3LV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 12.352 MHz | Enable/Disable | HCMOS, TTL | 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 12mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
LFSPXO061624XTAL OSC XO 10.0000MHZ HCMOS SMD |
35,954 |
|
Datasheet |
IQXO-791 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 10 MHz | Enable/Disable | HCMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 10mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
ASEAIG5-26.000MHZ-X-K-T3XTAL OSC XO 26MHZ CMOS SMD |
5,992 |
|
Datasheet |
ASEAIG | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 26 MHz | Enable/Disable | CMOS | 1.8V ~ 3.3V | ±30ppm | - | -40°C ~ 105°C | - | 13mA | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
LFSPXO056299XTAL OSC XO 40.0000MHZ HCMOS SMD |
5,972 |
|
Datasheet |
IQXO-791 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 40 MHz | Enable/Disable | HCMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 10mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

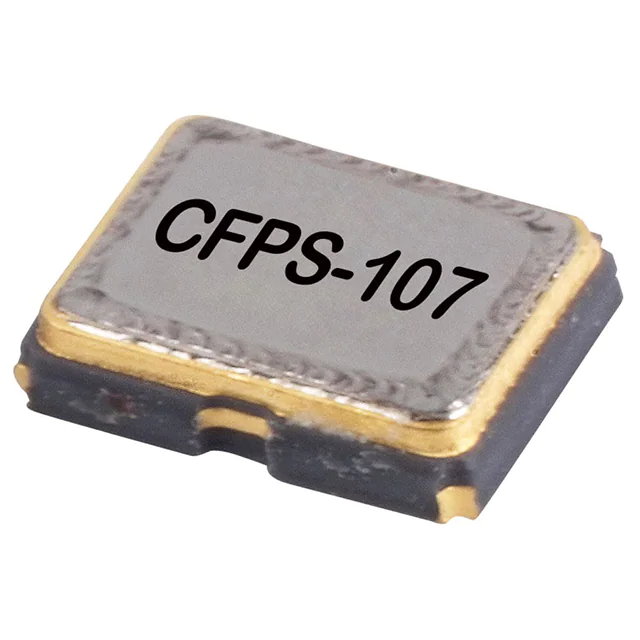

830206385009WE-SPXO CRYSTAL OSCILLATOR 32.76 |
5,570 |
|
Datasheet |
CFPS-107 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 32.768 kHz | Standby (Power Down) | CMOS | 1.8V | ±30ppm | - | -40°C ~ 85°C | - | 1.5mA | - | Surface Mount | 4-SMD (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.037" (0.95mm) |
|
ASDDV-24.576MHZ-LC-T3OSC XO 24.576MHZ CMOS SMD |
4,744 |
|
Datasheet |
ASDDV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24.576 MHz | Enable/Disable | HCMOS, LVCMOS | 1.8V ~ 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 4mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.037" (0.95mm) |
|

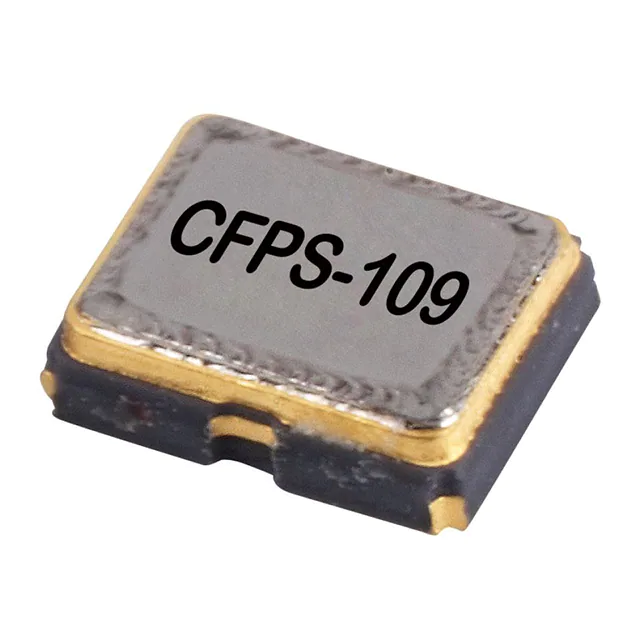

830208229409WE-SPXO CRYSTAL OSCILLATOR 32.76 |
4,178 |
|
Datasheet |
CFPS-109 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 32.768 kHz | Standby (Power Down) | CMOS | 3.3V | ±100ppm | - | -40°C ~ 125°C | - | 3.5mA | - | Surface Mount | 4-SMD (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.037" (0.95mm) |
|
|
LFSPXO056300XTAL OSC XO 48.0000MHZ HCMOS SMD |
2,566 |
|
Datasheet |
IQXO-791 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 48 MHz | Enable/Disable | HCMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 10mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LFSPXO056294XTAL OSC XO 24.0000MHZ HCMOS SMD |
2,084 |
|
Datasheet |
IQXO-791 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Enable/Disable | HCMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 10mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
830208229109WE-SPXO CRYSTAL OSCILLATOR 32.76 |
1,980 |
|
Datasheet |
CFPS-107 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 32.768 kHz | Standby (Power Down) | CMOS | 1.8V | ±100ppm | - | -40°C ~ 125°C | - | 1.5mA | - | Surface Mount | 4-SMD (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.037" (0.95mm) |
|
|
830207390509WE-SPXO CRYSTAL OSCILLATOR 32.76 |
360 |
|
Datasheet |
CFPS-109 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 32.768 kHz | Standby (Power Down) | CMOS | 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 3.5mA | - | Surface Mount | 4-SMD (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.037" (0.95mm) |
|
831019137XTAL OSC XO 40.0000MHZ HCMOS |
7,658 |
|
Datasheet |
CFPS-72 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 40 MHz | Standby (Power Down) | HCMOS, TTL | 5V | ±50ppm | - | -40°C ~ 85°C | - | 50mA | - | Surface Mount | - | 0.283" L x 0.205" W (7.20mm x 5.20mm) | 0.055" (1.40mm) |
|
831019275XTAL OSC XO 16.0000MHZ HCMOS |
5,506 |
|
Datasheet |
WE-SPXO | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 16 MHz | Standby (Power Down) | HCMOS, TTL | 5V | ±50ppm | - | -40°C ~ 85°C | - | 20mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.055" (1.40mm) |
|
830208197509XTAL OSC XO 14.31818MHZ CMOS |
5,388 |
|
Datasheet |
CFPS-39 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 14.31818 MHz | Standby (Power Down) | CMOS | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 7mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
831018034XTAL OSC XO 16.0000MHZ HCMOS |
3,886 |
|
Datasheet |
CFPS-72 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 16 MHz | Standby (Power Down) | HCMOS, TTL | 5V | ±50ppm | - | 0°C ~ 70°C | - | 20mA | - | Surface Mount | - | 0.283" L x 0.205" W (7.20mm x 5.20mm) | 0.055" (1.40mm) |
|
XLH735100.000000XXTAL OSC XO 100.0000MHZ HCMOS |
3,882 |
|
Datasheet |
XPRESSO™ FXO-HC73 | 6-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | HCMOS | 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 47mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.055" (1.40mm) |
|
|
831018033XTAL OSC XO 4.0000MHZ HCMOS |
2,616 |
|
Datasheet |
WE-SPXO | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 4 MHz | Standby (Power Down) | HCMOS, TTL | 5V | ±50ppm | - | 0°C ~ 70°C | - | 20mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.055" (1.40mm) |
|
|
831018739XTAL OSC XO 40.0000MHZ HCMOS |
2,600 |
|
Datasheet |
CFPS-72 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 40 MHz | Standby (Power Down) | HCMOS, TTL | 5V | ±50ppm | - | 0°C ~ 70°C | - | 50mA | - | Surface Mount | - | 0.283" L x 0.205" W (7.20mm x 5.20mm) | 0.055" (1.40mm) |
|
|
831018871XTAL OSC XO 48.0000MHZ HCMOS |
1,980 |
|
Datasheet |
CFPS-72 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 48 MHz | Standby (Power Down) | HCMOS, TTL | 5V | ±100ppm | - | -40°C ~ 85°C | - | 50mA | - | Surface Mount | - | 0.283" L x 0.205" W (7.20mm x 5.20mm) | 0.055" (1.40mm) |
