Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-TXO-2520-33-240-AN-TRXTAL OSC TCXO 24.0000MHZ HCMOS |
32,458 |
|
Datasheet |
ECS-TXO-2520 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 24 MHz | Enable/Disable | HCMOS | 3.3V | ±2.5ppm | - | -40°C ~ 85°C | - | 5.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
ECS-TXO-2520MV-160-AN-TRXTAL OSC TCXO 16MHZ CMOS SMD |
13,890 |
|
Datasheet |
ECS-TXO-2520MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 16 MHz | Enable/Disable | CMOS | 1.7V ~ 3.6V | ±2.5ppm | - | -40°C ~ 85°C | - | 4.8mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
ASEM1-50.000MHZ-LC-TMEMS OSC XO 50.0000MHZ CMOS SMD |
27,604 |
|
Datasheet |
ASEM, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | 50 MHz | Standby (Power Down) | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 15mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|

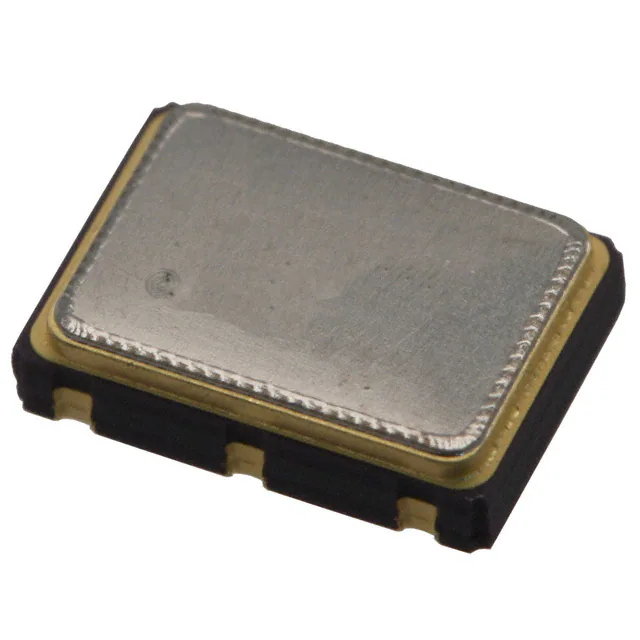

357LB3I027M0000XTAL OSC VCXO 27.0000MHZ HCMOS |
23,340 |
|
Datasheet |
357 | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | VCXO | 27 MHz | Enable/Disable | HCMOS, TTL | 3.3V | ±50ppm | ±50ppm | -40°C ~ 85°C | - | 30mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
ECS-TXO-3225-160-TRXTAL OSC TCXO 16.0000MHZ HCMOS |
15,686 |
|
Datasheet |
ECS-TXO-3225 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 16 MHz | - | HCMOS | 3.3V | ±2.5ppm | - | -30°C ~ 85°C | - | 6mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
ECS-TXO-3225-250-TRXTAL OSC TCXO 25.0000MHZ HCMOS |
5,144 |
|
Datasheet |
ECS-TXO-3225 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 25 MHz | - | HCMOS | 3.3V | ±2.5ppm | - | -30°C ~ 85°C | - | 6mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
SG-210STF 16.0000MLXTAL OSC XO 16.0000MHZ CMOS SMD |
6,726 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 16 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
.jpg)
|
SG5032CAN 24.000000M-TJGA3XTAL OSC XO 24.0000MHZ CMOS SMD |
15,146 |
|
Datasheet |
SG5032CAN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 3mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
|
ECS-TXO-2520-33-250-AN-TRXTAL OSC TCXO 25.0000MHZ HCMOS |
38,876 |
|
Datasheet |
ECS-TXO-2520 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 25 MHz | Enable/Disable | HCMOS | 3.3V | ±2.5ppm | - | -40°C ~ 85°C | - | 5.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
TXKTPCSANF-32.000000XTAL OSC TCXO 32.0000MHZ SNWV |
5,888 |
|
Datasheet |
TX | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 32 MHz | - | Clipped Sine Wave | 1.8V | ±1.5ppm | - | -20°C ~ 70°C | - | 2.5mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
ASEM1-8.000MHZ-LC-TMEMS OSC XO 8.0000MHZ CMOS SMD |
3,694 |
|
Datasheet |
ASEM, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | 8 MHz | Standby (Power Down) | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 15mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
ECS-TXO-25CSMV-320-BM-TRXTAL OSC TCXO 32MHZ CLPSNW SMD |
2,924 |
|
Datasheet |
ECS-TXO-25CSMV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 32 MHz | - | Clipped Sine Wave | 1.7V ~ 3.465V | ±1ppm | - | -20°C ~ 70°C | - | 2.5mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
SG-210STF 12.2880ML3XTAL OSC XO 12.2880MHZ CMOS SMD |
19,824 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 12.288 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
ECS-TXO-25CSMV-400-BN-TRXTAL OSC TCXO 40MHZ CLPSNW SMD |
6,104 |
|
Datasheet |
ECS-TXO-25CSMV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 40 MHz | - | Clipped Sine Wave | 1.7V ~ 3.465V | ±1ppm | - | -40°C ~ 85°C | - | 2.5mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
SG-210STF 25.0000MS3XTAL OSC XO 25.0000MHZ CMOS SMD |
4,002 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±25ppm | - | -20°C ~ 70°C | - | 2.2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
ECS-TXO-2520-33-200-AN-TRXTAL OSC TCXO 20.0000MHZ HCMOS |
3,296 |
|
Datasheet |
ECS-TXO-2520 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 20 MHz | Enable/Disable | HCMOS | 3.3V | ±2.5ppm | - | -40°C ~ 85°C | - | 4.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
ECS-3225SMV-250-FP-TRXTAL OSC XO 25.0000MHZ HCMOS SMD |
10,510 |
|
Datasheet |
ECS-3225SMV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Enable/Disable | CMOS | 1.62V ~ 3.63V | ±10ppm | - | -40°C ~ 105°C | - | 10mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
ECS-3225SMV-500-FP-TRXTAL OSC XO 50.0000MHZ HCMOS SMD |
3,116 |
|
Datasheet |
ECS-3225SMV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 50 MHz | Enable/Disable | CMOS | 1.62V ~ 3.63V | ±10ppm | - | -40°C ~ 105°C | - | 10mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
ASEM1-25.000MHZ-LC-TMEMS OSC XO 25.0000MHZ CMOS SMD |
11,018 |
|
Datasheet |
ASEM, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | 25 MHz | Standby (Power Down) | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 15mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
ECS-TXO-3225-120-TRXTAL OSC TCXO 12.0000MHZ HCMOS |
5,648 |
|
Datasheet |
ECS-TXO-3225 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 12 MHz | - | HCMOS | 3.3V | ±2.5ppm | - | -30°C ~ 85°C | - | 6mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
