Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5962-0822701HYCOPTOISOLATOR 1.5KV DARL 8DIP BJ |
6,106 |
|
Datasheet |
- | 8-SMD Butt Joint | Tube | Active | 1 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Butt Joint |
|
|
5962-0822701HYAOPTOISOLATOR 1.5KV DARL 8DIP BJ |
4,930 |
|
Datasheet |
- | 8-SMD Butt Joint | Tube | Active | 1 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Butt Joint |
|
|
ACPL-5701L-300OPTOISOLTR 1.5KV DARLNG 8-DIP GW |
4,334 |
|
Datasheet |
- | 8-CSMD, Gull Wing | Tube | Active | 1 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Gull Wing |
|
5962-0822701HXAOPTOISOLTR 1.5KV DARLNG 8-DIP GW |
4,878 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Gull Wing |
|
ACPL-5730LOPTOISO 1.5KV 2CH DARLNG 8-DIP |
9,392 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
ACPL-5730L-100OPTOISO 1.5KV 2CH DARL 8-DIP BJ |
6,322 |
|
Datasheet |
- | 8-SMD Butt Joint | Tube | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Butt Joint |
|
|
ACPL-5730L-200OPTOISO 1.5KV 2CH DARLNG 8-DIP |
9,442 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
ACPL-5730L-300OPTOISO 1.5KV 2CH DARL 8-DIP GW |
2,246 |
|
Datasheet |
- | 8-CSMD, Gull Wing | Tube | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Gull Wing |
|
|
910004OPTOISOLATOR 2.5KV TRANS MODULE |
4,900 |
|
- |
- | Module | Bulk | Obsolete | 1 | 2500VDC | - | - | - | - | DC | Transistor | 48V | 100mA | - | 20 mA | - | - | - | - | DIN Rail | - |
|
|
HCPL-5760#100OPTOISO 1.5KV DARLINGTON 8-DIP |
7,762 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1500VDC | - | - | 4µs, 8µs | 10µs, 0.5µs | AC, DC | Darlington | 20V | 40mA | - | - | - | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
HCPL-5760#200OPTOISO 1.5KV DARLINGTON 8-DIP |
6,114 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1500VDC | - | - | 4µs, 8µs | 10µs, 0.5µs | AC, DC | Darlington | 20V | 40mA | - | - | - | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
HCPL-5760#300OPTOISO 1.5KV DARLINGTON 8SMD |
5,286 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1500VDC | - | - | 4µs, 8µs | 10µs, 0.5µs | AC, DC | Darlington | 20V | 40mA | - | - | - | - | - | -55°C ~ 125°C | Surface Mount | 8-SMD |
|
|
5962-8978501PCOPTOISO 1.5KV 2CH DARLNG 8-DIP |
6,088 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|

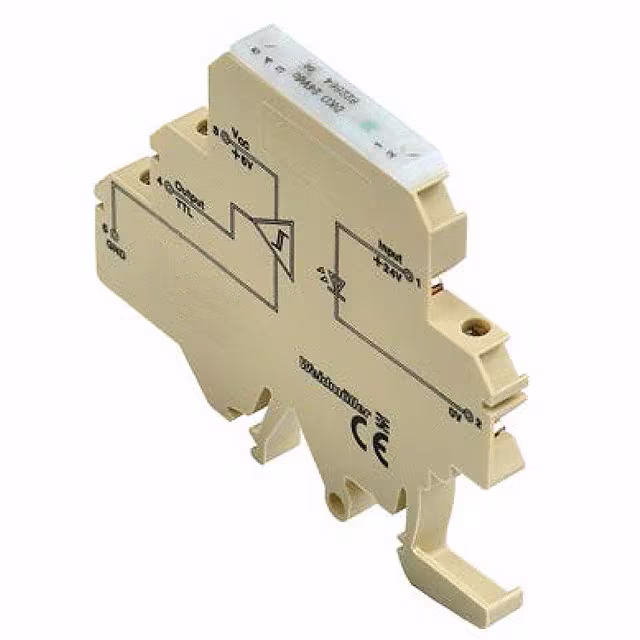

8228630000OPTOISOLATOR TRANS MODULE |
4,584 |
|
Datasheet |
- | Module | Bulk | Obsolete | 1 | - | - | - | - | - | DC | Transistor | 24V | 2A | - | - | - | - | - | -25°C ~ 40°C | DIN Rail | - |
|
|
HCPL-5731#100OPTOISO 1.5KV 2CH DARL 8-SMD BJ |
2,658 |
|
Datasheet |
- | 8-CSMD Butt Joint | Bulk | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | - | - | -55°C ~ 125°C | Surface Mount | 8-SMD Butt Joint |
|
|
HCPL-5731#200OPTOISO 1.5KV 2CH DARLNG 8-DIP |
5,542 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
5962-8978501YCOPTOISO 1.5KV 2CH DARL 8-DIP BJ |
9,730 |
|
Datasheet |
- | 8-SMD Butt Joint | Tube | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Butt Joint |
|
|
5962-8978501YAOPTOISO 1.5KV 2CH DARL 8-DIP BJ |
6,030 |
|
Datasheet |
- | 8-SMD Butt Joint | Tube | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Butt Joint |
|
|
8181990000OPTOISOLATOR TRANS MODULE |
6,962 |
|
Datasheet |
- | Module | Bulk | Obsolete | 1 | - | - | - | - | - | DC | Transistor | 24V | 2A | - | - | - | - | - | -25°C ~ 40°C | DIN Rail | - |
|
|
HCPL-5731#300OPTOISO 1.5KV 2CH DARL 8-DIP GW |
6,724 |
|
Datasheet |
- | 8-CSMD, Gull Wing | Bulk | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Gull Wing |
