Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

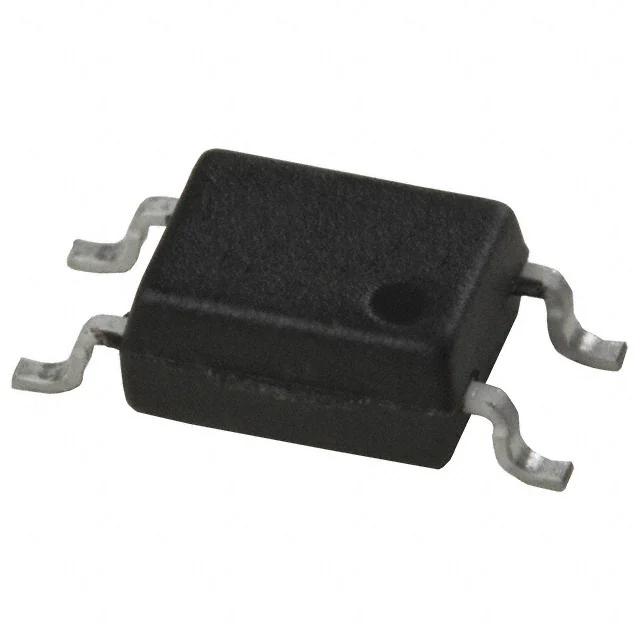

HCPL-181-000EOPTOISO 3.75KV TRANSISTOR 4SOIC |
79,676 |
|
Datasheet |
- | 4-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SO |
|
VOL618A-3TOPTOISOLATOR 5KV TRANS 4-LSOP |
32,816 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 1mA | 200% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
HCPL-181-00DEOPTOISO 3.75KV TRANS 4MINIFLAT |
11,490 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 300% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|

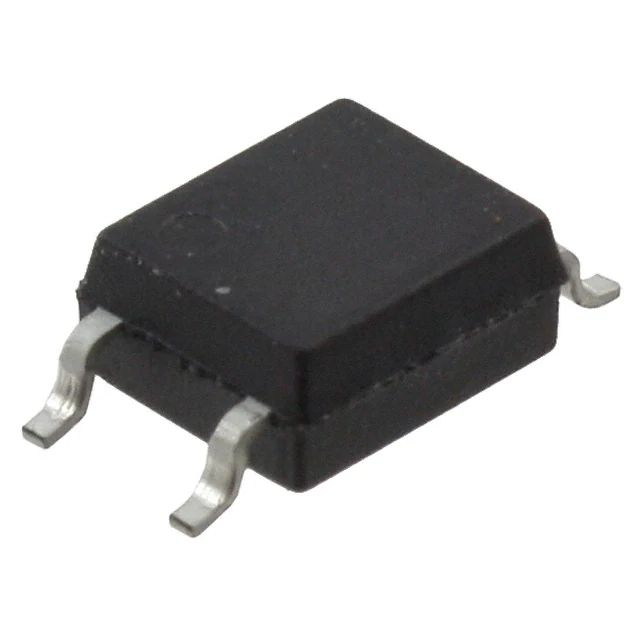

FODM121AR2OPTOISO 3.75KV TRANSISTOR 4SMD |
22,208 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | - | 3µs, 3µs | DC | Transistor | 80V | 80mA | 1.3V (Max) | 50 mA | 400mV | - | - | -40°C ~ 110°C | Surface Mount | 4-SMD |
|
PS2501L-1-F3-AOPTOISOLATOR 5KV TRANS 4SMD |
119,112 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Tape & Reel (TR) | Not For New Designs | 1 | 5000Vrms | 80% @ 5mA | 600% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
ACPL-217-500EOPTOISOLATOR 3.75KV TRANS 4SOIC |
109,998 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|
|
VOL618A-3X001TOPTOISOLATOR 5KV TRANS 4-LSOP |
100,698 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 1mA | 200% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
|
ACPL-217-50BEOPTOISOLATOR 3.75KV TRANS 4SO |
62,692 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 130% @ 5mA | 260% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|
|
ACPL-217-50DEOPTOISOLATOR 3.75KV TRANS 4-SO |
44,902 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 300% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|
4N35SR2MOPTOISO 4.17KV TRANS W/BASE 6SMD |
39,294 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 4170Vrms | 100% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 300mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
|
HCPL-181-06CEOPTOISO 3.75KV TRANS 4MINIFLAT |
22,918 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SO |
|
|
HCPL-181-060EOPTOISO 3.75KV TRANS 4MINIFLAT |
18,786 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|

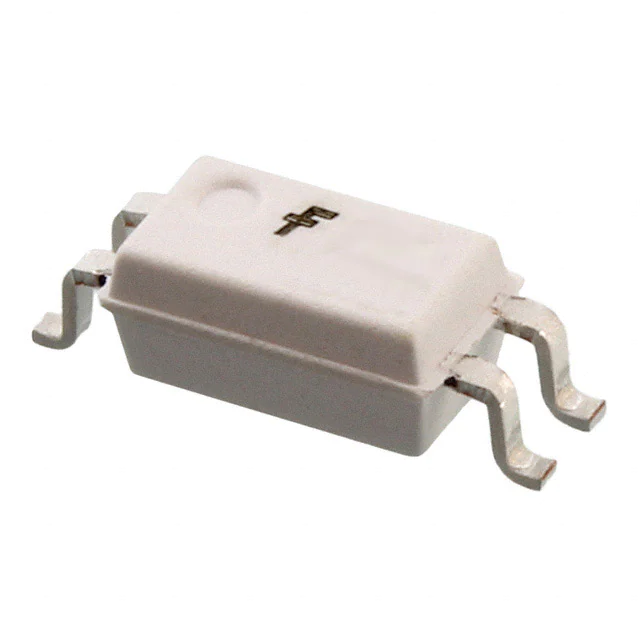

HMHA2801R2OPTOISO 3.75KV TRANSISTOR 4SMD |
21,484 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 80% @ 5mA | 600% @ 5mA | - | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.3V (Max) | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
4N26MOPTOISO 4.17KV TRANS W/BASE 6DIP |
25,096 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 4170Vrms | 20% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 500mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
PS2701-1-F3-AOPTOISOLATOR 3.75KV TRANS 4SMD |
126,308 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Tape & Reel (TR) | Not For New Designs | 1 | 3750Vrms | 50% @ 5mA | 300% @ 5mA | - | 3µs, 5µs | DC | Transistor | 40V | 80mA | 1.1V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SOP |
|
|
ACPL-217-560EOPTOISOLATOR 3.75KV TRANS 4SO |
35,438 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|
|
ACPL-217-56BEOPTOISOLATOR 3.75KV TRANS 4SO |
5,460 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 130% @ 5mA | 260% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|
TCLT1003OPTOISOLATR 5KV TRANSISTOR 4-SOP |
246,760 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SOP |
|
|
TCLT1007OPTOISOLATR 5KV TRANSISTOR 4-SOP |
82,900 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SOP |
|
|
HCPL-354-000EOPTOISO 3.75KV TRANS 4MINIFLAT |
40,792 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 20% @ 1mA | 400% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
