Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP521GBSMT&R4PIN TRANSISTOR OUTPUT, SINGLE O |
5,388 |
|
- |
TLP521 | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 100% @ 1mA | 600% @ 1mA | 3µs, 3µs | 4µs, 3µs | DC | Transistor | 55V | 50mA | 1.15V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
|
TLP521-2GBSMT&R8PIN TRANSISTOR OUTPUT, DUAL CHA |
6,136 |
|
- |
TLP521-2 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 5300Vrms | 100% @ 1mA | 600% @ 1mA | 3µs, 3µs | 4µs, 3µs | DC | Transistor | 55V | 50mA | 1.15V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Surface Mount | 8-SMD |
|
|
TLP621-2SMT&R8PIN TRANSISTOR OUTPUT, DUAL CHA |
4,514 |
|
- |
TLP621-2 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | 50mA | 1.15V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Surface Mount | 8-SMD |
|
|
ISP321-2BLSMT&R8PIN TRANSISTOR OUTPUT, DUAL CHA |
2,164 |
|
- |
ISP321-2 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 5300Vrms | 200% @ 1mA | 600% @ 1mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.15V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Surface Mount | 8-SMD |
|
|
ISP827BSMT&R8PIN TRANSISTOR OUTPUT, DUAL CHA |
3,282 |
|
Datasheet |
ISP827 | 8-DIP (0.300", 7.62mm) | Tape & Reel (TR) | Active | 2 | 5300Vrms | 130% @ 5mA | 260% @ 5mA | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 8-DIP |
|
|
ISP827-2SMT&R8PIN TRANSISTOR OUTPUT, DUAL CHA |
7,916 |
|
- |
ISP827-2 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 5300Vrms | 50% @ 500µA | - | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Surface Mount | 8-SMD |
|
|
TLP624-2SMT&R8PIN TRANSISTOR OUTPUT, DUAL CHA |
3,732 |
|
Datasheet |
TLP624-2 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 5300Vrms | 100% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | DC | Transistor | 55V | - | 1.15V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 8-SMD |
|
ELD207(TA)OPTOISO 3.75KV 2CH TRANS 8-SOP |
8,916 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 3750Vrms | 100% @ 10mA | 200% @ 10mA | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SOP |
|
OPIA407CTUOPTOISOLATOR 2.5KV TRANS 4-SSOP |
7,384 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tube | Obsolete | 1 | 2500Vrms | 0.3% @ 5mA | 3% @ 5mA | - | 3µs, 5µs | AC, DC | Transistor | 80V | 50mA | 1.1V | 50 mA | 300mV | - | - | -30°C ~ 100°C | Surface Mount | 4-SSOP |
|
EL827S1(TA)-VOPTOISOLATOR 5KV 2CH TRANS 8-SMD |
8,176 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 3µs, 4µs | DC | Transistor | 80V | 50mA | 1.2V | 60 mA | 200mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SMD |
|
|
EL1112(TA)-VGOPTOISO 5KV TRANS W/BASE 5SOP |
8,726 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | 4µs, 3µs | 2µs, 3µs | DC | Transistor with Base | 80V | 50mA | 1.5V (Max) | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 5-SOP |
|

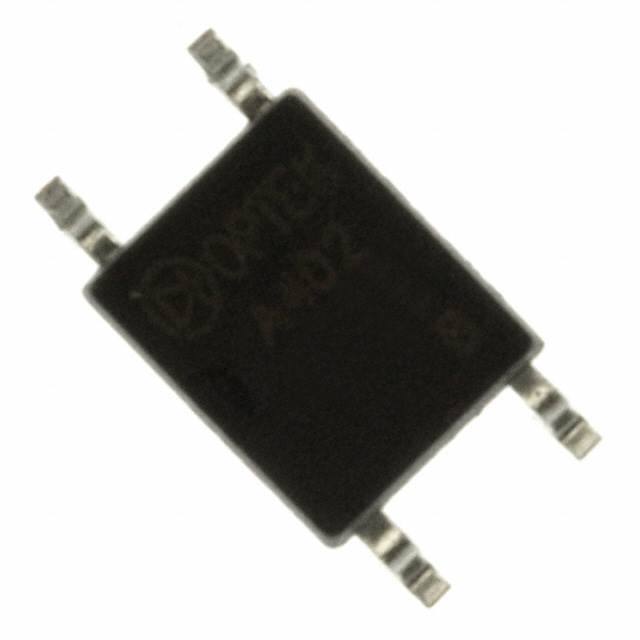

OPIA402BTUOPTOISOLATOR 3.75KV TRANS 4-SOP |
9,108 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Obsolete | 1 | 3750Vrms | 20% @ 1mA | 400% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 60V | 50mA | 1.2V | 50 mA | 300mV | - | - | -30°C ~ 100°C | Surface Mount | 4-SOP (2.54mm) |
|
H11AA26PIN AC INPUT, SINGLE OPTOCOUPLE |
9,360 |
|
- |
H11A | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 10% @ 10mA | - | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Through Hole | 6-DIP |
|
|
IS7336PIN AC INPUT, SINGLE OPTOCOUPLE |
9,474 |
|
Datasheet |
IS733 | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 15% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 6-DIP |
|
|
H11AA46PIN AC INPUT, SINGLE OPTOCOUPLE |
9,296 |
|
Datasheet |
H11A | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 100% @ 10mA | - | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Through Hole | 6-DIP |
|
H11AA16PIN AC INPUT, SINGLE OPTOCOUPLE |
8,060 |
|
Datasheet |
H11A | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 20% @ 10mA | - | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Through Hole | 6-DIP |
|
|
H11AA36PIN AC INPUT, SINGLE OPTOCOUPLE |
2,408 |
|
Datasheet |
H11A | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 50% @ 10mA | - | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Through Hole | 6-DIP |
|
|
SFH600-1X007TOPTOISO 5.3KV TRANS W/BASE 6SMD |
9,864 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3.2µs, 3µs | 2µs, 2.5µs | DC | Transistor with Base | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|
PC81411NSZOPTOISOLATOR 5KV TRANS 4DIP |
8,094 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 100% @ 500µA | 300% @ 500µA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
|
PC851XIOPTOISOLATOR 5KV TRANS 4SMD |
8,876 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Obsolete | 1 | 5000Vrms | - | - | - | 4µs, 5µs | DC | Transistor | 350V | 50mA | 1.2V | 50 mA | 300mV | - | - | -25°C ~ 100°C | Surface Mount | 4-SMD |
