Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-181-06AEOPTOISO 3.75KV TRANS 4MINIFLAT |
33,944 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|

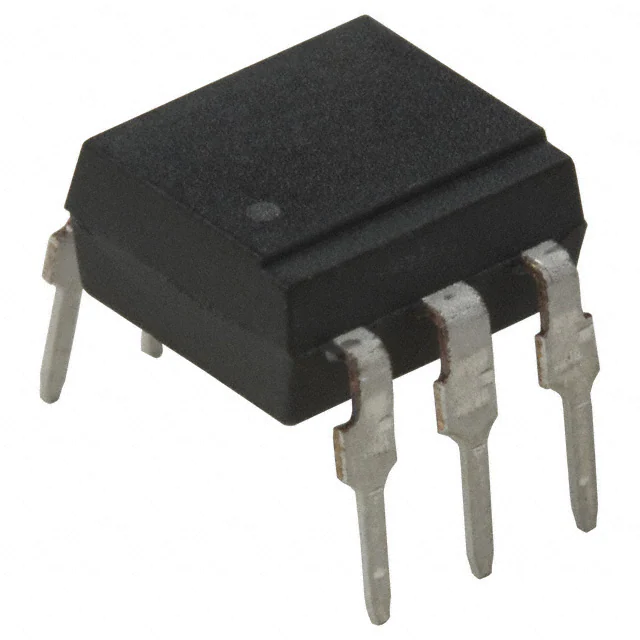

CNY17-3-000EOPTOISO 5KV TRANS W/BASE 6DIP |
33,592 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | - | 5µs, 5µs | DC | Transistor with Base | 70V | 150mA | 1.4V | 60 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
4N35-000EOPTOISO 3.55KV TRANS W/BASE 6DIP |
33,234 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 3550Vrms | 100% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 60 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
4N25-000EOPTOISO 2.5KV TRANS W/BASE 6DIP |
22,030 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 2500Vrms | 20% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 80 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
VOL617A-4X001TOPTOISOLATOR 5KV TRANS 4-LSOP |
20,124 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 160% @ 5mA | 320% @ 5mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
|
VOL618A-2X001TOPTOISOLATOR 5KV TRANS 4-LSOP |
19,204 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 63% @ 1mA | 125% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
FODM217AOPTOISO 3.75KV 1CH TRANS 4SOP |
10,448 |
|
Datasheet |
FODM217 | 4-SOIC (0.173", 4.40mm Width) | Tube | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
VOL617A-8X001TOPTOISOLATOR 5KV TRANS |
7,624 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 130% @ 5mA | 260% @ 5mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-LSOP (2.54mm) |
|
ACPL-217-50CEOPTOISOLATOR 3.75KV TRANS 4SOIC |
7,066 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|
4N32OPTOCOUPLER DARLINGTON 6DIP |
6,648 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 50% @ 10mA | - | 5µs, 100µs | - | DC | Darlington | 30V | - | 1.2V | 80 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
PS2561AL-1-AOPTOISOLATOR 5KV TRANS 4SMD |
6,064 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Tube | Not For New Designs | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
TLP785F(D4GLT7,FX36 PB-F PHOTOCOUPLER THRU HOLE |
5,470 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.15V | 25 mA | 400mV | - | - | -25°C ~ 85°C | Surface Mount | 4-SMD |
|
|
FODM214PHOTOTRANSISTOR OPTOCOUPLER |
5,036 |
|
Datasheet |
FODM214 | 4-SOIC (0.173", 4.40mm Width) | Tube | Active | 1 | 3750Vrms | 20% @ 1mA | 400% @ 1mA | 3µs, 3µs | 3µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
|
H11B1OPTOISO 5.3KV DARL W/BASE 6DIP |
4,834 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 500% @ 1mA | - | 125µs, 100µs | - | DC | Darlington with Base | 30V | - | 1.2V | 80 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
H11A1SMOPTOISO 4.17KV TRANS W/BASE 6SMD |
9,132 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | 1 | 4170Vrms | 50% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
CNY172MOPTOISO 4.17KV TRANS W/BASE 6DIP |
2,272 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 4170Vrms | 63% @ 10mA | 125% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor with Base | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
6N138SOPTOISO 5KV DARL W/BASE 8SMD |
14,522 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 5000Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 1.6µs, 10µs | - | DC | Darlington with Base | 7V | 50mA | 1.1V | 20 mA | - | - | - | -20°C ~ 85°C | Surface Mount | 8-SMD |
|
4N25OPTOISO 5KV TRANS W/BASE 6DIP |
5,022 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.3V | 60 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
HMHA2801AR2VOPTOISO 3.75KV TRANS 4-MINI-FLAT |
9,460 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | - | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.3V (Max) | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
|
MOC8106MOPTOISOLATOR 4.17KV TRANS 6DIP |
5,966 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 4170Vrms | 50% @ 10mA | 150% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
