Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEF4069UBT,652IC INVERTER 6CH 1-INP 14SO |
2,968 |
|
Datasheet |
4000B | 14-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Inverter | 6 | 1 | - | 3V ~ 15V | 1 µA | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V | 30ns @ 15V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
74AC10MTCXIC GATE NAND 3CH 3-INP 14TSSOP |
15,048 |
|
Datasheet |
74AC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Obsolete | NAND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
DM74ALS27MXIC GATE NOR 3CH 3-INP 14SOIC |
15,000 |
|
Datasheet |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | NOR Gate | 3 | 3 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 15ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
SN74ACT08IDRCTMOS LOGIC AUTOMOTIVE |
15,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MC74HC4049DR2IC BUFFER INVERT 6V |
15,000 |
|
Datasheet |
74HC | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74LCX00MCTIC GATE NAND |
14,100 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MC74LCX08SDR2IC GATE AND |
14,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74LVC04ADB,112IC INVERTER 6CH 1-INP 14SSOP |
9,724 |
|
Datasheet |
74LVC | 14-SSOP (0.209", 5.30mm Width) | Bulk | Obsolete | Inverter | 6 | 1 | - | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.12V ~ 0.8V | 1.08V ~ 2V | 4.5ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
DM74AS04NIC INVERTER 6CH 1-INP 14DIP |
13,216 |
|
Datasheet |
74AS | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | - | 2mA, 20mA | 0.8V | 2V | 5ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Through Hole | 14-DIP |
|
|
74AC20SCIC GATE NAND 2CH 4-INP 14SOIC |
12,720 |
|
Datasheet |
74AC | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 2 | 4 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
74HCT3G04GD,125IC INVERTER 3CH 3-INP 8XSON |
12,036 |
|
Datasheet |
74HCT | 8-XFDFN | Bulk | Active | Inverter | 3 | 3 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 18ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
NL27WZ06DFT2IC INVERTER DUAL OPEN DRN SC88 |
12,000 |
|
Datasheet |
27WZ | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | Inverter | 2 | 1 | Open Drain | 1.65V ~ 5.5V | 1 µA | -, 32mA | - | - | 3ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|

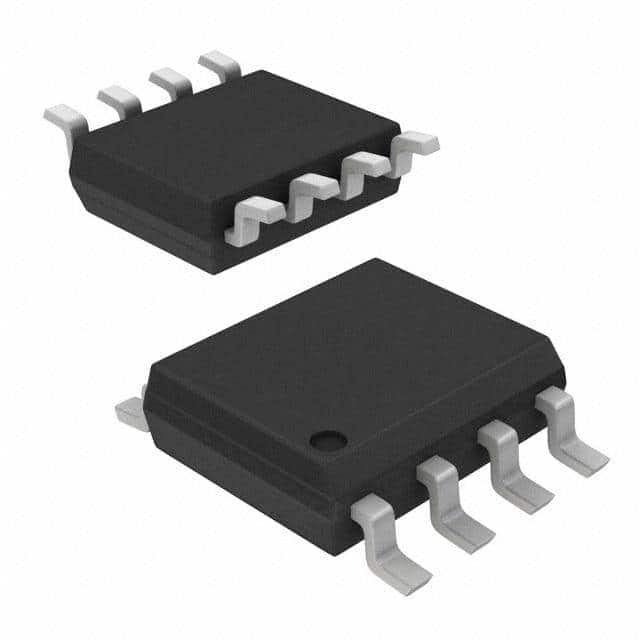

NL37WZ06UIC INVERTER TRPL OPEN DRAIN US8 |
12,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SN74HCT04DBRIC INVERTER 6CH 1-INP 14SSOP |
12,000 |
|
Datasheet |
74HCT | 14-SSOP (0.209", 5.30mm Width) | Bulk | Active | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 18ns @ 5.5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
MC74AC14MIC SCHMITT TRIG HEX INV 14SOEIAJ |
11,826 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74HCT2G32GD,125IC GATE OR 2CH 2-INP 8XSON |
11,380 |
|
Datasheet |
74HCT | 8-XFDFN | Bulk | Active | OR Gate | 2 | 2 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
|
DM74AS00NIC GATE NAND 4CH 2-INP 14DIP |
10,950 |
|
Datasheet |
74AS | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 2mA, 20mA | 0.8V | 2V | 4.5ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Through Hole | 14-DIP |
|
|
74AHCT2G32GD,125IC GATE OR 2CH 2-INP 8XSON |
10,774 |
|
Datasheet |
74AHCT | 8-XFDFN | Bulk | Active | OR Gate | 2 | 2 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
|
DM74ALS27MIC GATE NOR 3CH 3-INP 14SOIC |
10,162 |
|
Datasheet |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NOR Gate | 3 | 3 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 15ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
CD74AC20M96S2463IC GEN PURP |
10,000 |
|
Datasheet |
74AC | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
