Gates and Inverters - Multi-Function, Configurable
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JM38510/07401BCASN54S51 AND-OR-INVERT GATES |
380 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|

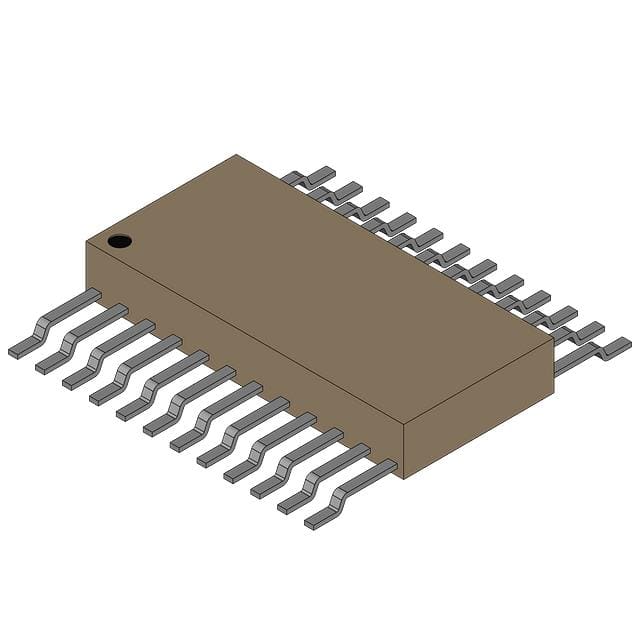

100301W-QMLV100301 - OR/NOR GATE, 100K SERIE |
2,476 |
|
Datasheet |
- | - | Bulk | Active | NOR/OR Gate | - | 15 Input (5, 5, 5) | - | - | - | 4.2V ~ 5.7V | - | - | - | - | - |
|
100304J-QMLV100304 - AND/NAND GATE, 100K SER |
9,654 |
|
Datasheet |
- | - | Bulk | Active | AND/NAND Gate | - | - | - | - | - | -4.2V ~ -5.7V | - | - | - | Through Hole | - |
|
|
100307W-QMLV100307 - XOR/XNOR GATE, 100K SER |
402 |
|
Datasheet |
- | - | Bulk | Active | XOR/XNOR Gate | - | - | - | - | - | -4.2V ~ -5.7V | - | - | - | Surface Mount | - |
|
|
100304W-QMLV100304 - AND/NAND GATE, 100K SER |
6,858 |
|
Datasheet |
- | - | Bulk | Active | AND/NAND Gate | - | - | - | - | - | -4.2V ~ -5.7V | - | - | - | Through Hole | - |
|
|
100302J-QMLVOR/NOR GATE, 100K SERIES, 5-FUNC |
240 |
|
Datasheet |
- | 24-DIP (0.400", 10.16mm) | Bulk | Active | NOR/OR Gate | - | 10 Input (2, 2, 2, 2, 2) | - | - | - | 4.2V ~ 5.7V | - | - | - | Through Hole | - |
|
|
100302W-QMLV100302 - OR/NOR GATE, 100K SERIE |
6,522 |
|
Datasheet |
- | - | Bulk | Active | NOR/OR Gate | - | 10 Input (2, 2, 2, 2, 2) | - | - | - | -4.2V ~ -5.7V | - | - | - | Surface Mount | - |
|
ASNT5160-KMC50GB BROADBAND AND OR LOGIC GATE |
3,984 |
|
Datasheet |
- | 24-CFlatPack | Bulk | Active | AND/OR Gate | 1 | 4 Input (2, 2) | No | Differential | - | 3.1V ~ 3.5V | -40°C ~ 125°C | - | - | Surface Mount | 24-CQFP (8x8) |
|
HMC745LC3IC GATE XOR/XNOR 13DBPS 16CQFN |
7,258 |
|
Datasheet |
- | 16-VFCQFN Exposed Pad | Strip | Active | XOR/XNOR Gate | 1 | 4 | No | Differential, Single-Ended | - | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-CSMT (3x3) |
|
CD4068BEIC NAND/AND GATE 8-IN 14-DIP |
1,706 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Active | NAND/AND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
74LVC1G58GM,115IC CONFIG MULTI-FUNC GATE 6-XSON |
1,142 |
|
Datasheet |
74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
74AUP1G58GW,125IC CONFIG MULTI-FUNC GATE 6TSSOP |
426 |
|
Datasheet |
74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
|
74AUP1T58GW,125IC TRANSLATOR UNIDIR 6TSSOP |
814 |
|
Datasheet |
74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | - | 1 | - | - | Single-Ended | - | - | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
74LVC1G98GV,125IC CONFIG MULTI FUNC GATE 6TSOP |
738 |
|
Datasheet |
74LVC | SC-74, SOT-457 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSOP |
|
CD4048BPWIC 8IN GATE EXPND MULTI 16TSSOP |
1,100 |
|
Datasheet |
4000B | 16-TSSOP (0.173", 4.40mm Width) | Tube | Active | Multifunction Expandable | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
74AUP2G3404GN,125IC BUFFER/INVERTER SGL X2SON6 |
450 |
|
Datasheet |
74AUP | 6-XFDFN | Tape & Reel (TR) | Active | Buffer/Inverter | 2 | 2 Input (1, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (0.9x1) |
|
SY55851AUKGIC GATE UNIV 3GHZ 50 OHM 10MSOP |
8,106 |
|
Datasheet |
SY55 | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Configurable Multiple Function | 1 | 2 | No | Differential | - | 2.3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 10-MSOP |
|
MC10EP08DTGIC GATE XOR/XNOR ECL 2INP 8TSSOP |
2,078 |
|
Datasheet |
10EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | XOR/XNOR Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
MC10EP05DGIC GATE AND/NAND ECL 2INP 8SOIC |
4,428 |
|
Datasheet |
10EP | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | AND/NAND Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
74AUP1G57GW,125IC CONFIG MULTI-FUNC GATE 6TSSOP |
1,398 |
|
Datasheet |
74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
