Gates and Inverters - Multi-Function, Configurable
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLX1G97CMX1TCGIC GATE CONFIG MULTIFUNC 6-ULLGA |
6,064 |
|
Datasheet |
MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1x1) |
|
74F51SCXAND-OR-INVERT GATE |
35,000 |
|
Datasheet |
74F | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | AND/OR/INVERT Gate | 2 | 10 Input (3, 3, 2, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
74AUP1G58FW4-7IC GATE SGL GATE X2-DFN1010-6 |
10,000 |
|
Datasheet |
74AUP | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | X2-DFN1010-6 |
|
|
NLX1G58AMX1TCGIC GATE CONFIG MULTIFUNC 6-ULLGA |
5,448 |
|
Datasheet |
MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.45x1) |
|
|
NLX1G57AMX1TCGIC GATE CONFIG MULTIFUNC 6-ULLGA |
7,050 |
|
- |
MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.45x1) |
|
|
NLX1G98AMX1TCGIC GATE CONFIG MULTIFUNC 6-ULLGA |
8,906 |
|
- |
MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.45x1) |
|
NLX1G57CMUTCGIC LOGIC SMD |
5,384 |
|
Datasheet |
MiniGate™ | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
74AUP1T97GM,115NEXPERIA 74AUP1T97GM - LOGIC CIR |
90,000 |
|
Datasheet |
74AUP | 6-XFDFN | Bulk | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 2.3V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (1.45x1) |
|
74F51PCAND-OR-INVERT GATE |
15,992 |
|
Datasheet |
74F | 14-DIP (0.300", 7.62mm) | Bulk | Active | AND/OR/INVERT Gate | 2 | 10 Input (3, 3, 2, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V | 0°C ~ 70°C | - | - | Through Hole | 14-DIP |
|
|
MC14069UBFL1INVERTER |
6,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NLX1G57BMX1TCGIC CONFIG MULTIPLE FUNCT 6ULLGA |
6,202 |
|
- |
MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.2x1) |
|
|
NLX1G97BMX1TCGIC CONFIG MULTIPLE FUNCT 6ULLGA |
4,856 |
|
Datasheet |
MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.2x1) |
|
|
74AUP1G98FW4-7IC GATE SGL GATE X2-DFN1010-6 |
10,000 |
|
Datasheet |
74AUP | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | X2-DFN1010-6 |
|
74AUP1G97L6XIC GATE UNIV 2INPUT 6-MICROPAK |
3,680 |
|
Datasheet |
74AUP | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|

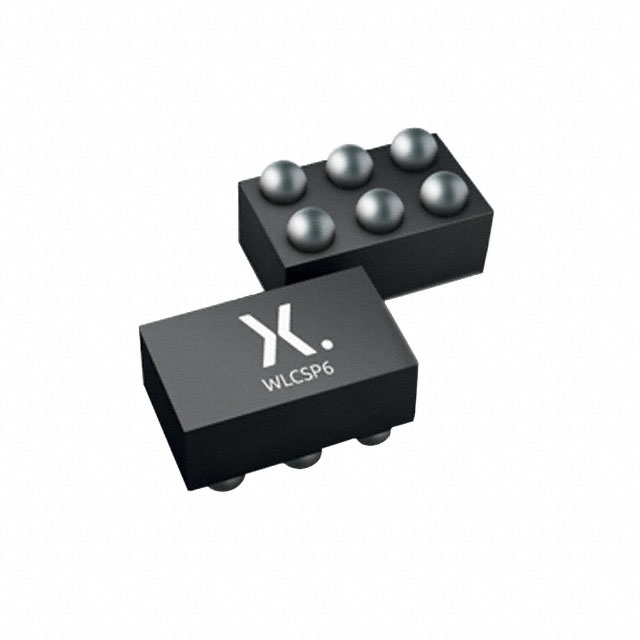

74AUP1G97UKAZIC GATE MULTIFUNCTION WLCSP6 |
9,834 |
|
Datasheet |
74AUP | 6-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-WLCSP (0.65x0.44) |
|
74LVC1G98GF,132IC CONFIG MULTI FUNC GATE 6XSON |
4,126 |
|
Datasheet |
74LVC | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT891 (1x1) |
|
|
74LVC1G97GF,132IC CONFIG MULTI FUNC GATE 6XSON |
5,132 |
|
Datasheet |
74LVC | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT891 (1x1) |
|

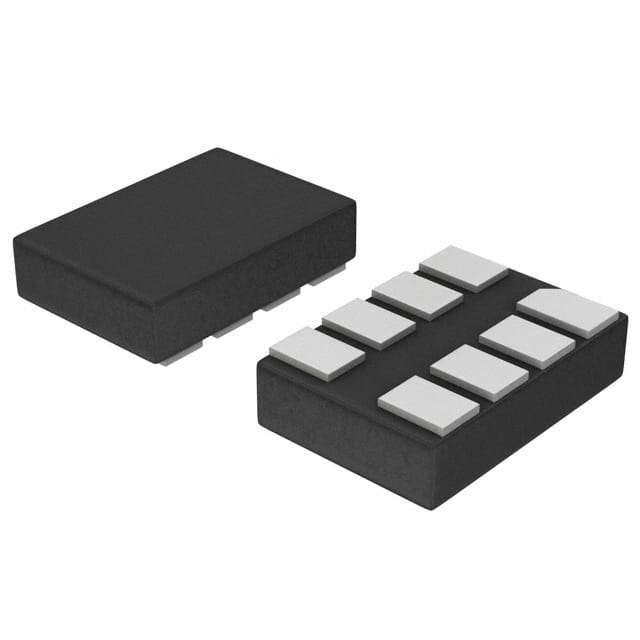

NLX1G99AMX1TCGIC MINIGATE MULTIFUNC 8ULLGA |
3,280 |
|
Datasheet |
MiniGate™ | 8-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 4 | Yes | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 8-ULLGA (1.95x1) |
|
|
SN72270NHEX INVERTER |
39,444 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
CD4019BPWIC QUAD AND/OR SLCT GATE 16TSSOP |
7,002 |
|
Datasheet |
4000B | 16-TSSOP (0.173", 4.40mm Width) | Tube | Discontinued at Digi-Key | AND/OR Gate | 4 | 2 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
