Video Amps and Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Applications | Output Type | Number of Circuits | -3db Bandwidth | Slew Rate | Current - Supply | Current - Output / Channel | Voltage - Supply, Single/Dual (±) | Mounting Type | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUF22821AIDCPRIC AMP TFT-LCD 38HTSSOP |
5,016 |
|
Datasheet |
38-PowerTFSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | TFT-LCD Panels: Gamma Buffer, VCOM Driver | Rail-to-Rail | 24 | - | - | 12 mA | 30 mA | 9V ~ 20V | Surface Mount | - | - | 38-HTSSOP |
|
MAX2557AELM+TVIDEO AMPLIFIERS FEMTO WCDMA BAN |
5,000 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
AD8013ANZIC AMP CURRENT FEEDBACK 14DIP |
3,960 |
|
Datasheet |
14-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Current Feedback | - | 3 | 140 MHz | 1000V/µs | 3.5 mA | 30 mA | 4.2V ~ 13V, ±2.1V ~ 6.5V | Through Hole | - | - | 14-PDIP |
|
AD811AR-20IC OPAMP VIDEO HP 20 SOIC |
6,780 |
|
Datasheet |
20-SOIC (0.295", 7.50mm Width) | - | Tube | Obsolete | Current Feedback | - | 1 | 140 MHz | 2500V/µs | 16.5 mA | 100 mA | ±4.5V ~ 18V | Surface Mount | - | - | 20-SOIC |
|
MAX4315ESEIC AMP MPLEX AMP 16SOIC |
2,756 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | 8:1 Multiplexer-Amplifier | Rail-to-Rail | 1 | 97 MHz | 310V/µs | 7.4 mA | 95 mA | 4V ~ 10.5V, ±2V ~ 5.25V | Surface Mount | - | - | 16-SOIC |
|
ISL59424IRZ-T7VIDEO MULTIPLEXER |
6,000 |
|
Datasheet |
24-VFQFN Exposed Pad | - | Bulk | Obsolete | 2:1 Multiplexer-Amplifier | - | 3 | 1 GHz | 1200V/µs | 39 mA | 130 mA | - | Surface Mount | - | - | 24-QFN (4x5) |
|
AD8142ACPZ-R7IC AMP DRIVER 24LFCSP |
7,896 |
|
Datasheet |
24-WFQFN Exposed Pad, CSP | - | Tape & Reel (TR) | Active | Driver | Differential | 3 | 285 MHz | 1250V/µs | 47 mA | - | 4.5V ~ 5.5V, ±2.25V ~ 2.75V | Surface Mount | - | - | 24-LFCSP (4x4) |
|
MAX9547ESA+IC AMP RECEIVER 8SOIC |
5,220 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) Exposed Pad | - | Tube | Obsolete | Receiver | - | 1 | 20 MHz | 50V/µs | 70 mA | 21 mA | 7.5V ~ 10V | Surface Mount | - | - | 8-SOIC-EP |
|
ISL59444IBZ-T13VIDEO MULTIPLEXER |
55,000 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | - | Bulk | Obsolete | 4:1 Multiplexer-Amplifier | - | 1 | 1 GHz | 1515V/µs | 18 mA | 180 mA | ±4.5V ~ 5.5V | Surface Mount | - | - | 16-SOIC |
|
ADA4320-1ACPZ-R7IC AMP CATV 24LFCSP |
3,082 |
|
Datasheet |
24-VFQFN Exposed Pad, CSP | - | Tape & Reel (TR) | Active | CATV | Differential | 1 | - | - | 260 mA | - | 4.75V ~ 5.25V | Surface Mount | - | - | 24-LFCSP-VQ (4x5) |
|
LM2419TVIDEO AMPLIFIER |
8,632 |
|
Datasheet |
TO-220-11 Formed Leads | - | Bulk | Active | CRT Driver | - | - | - | - | 27 mA | - | - | Through Hole | - | - | TO-220-11 |
|
|
MAX2557ELM+TVIDEO AMPLIFIERS FEMTO WCDMA BAN |
5,000 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
AD8074ARUIC AMP BUFFER 16TSSOP |
4,400 |
|
Datasheet |
16-TSSOP (0.173", 4.40mm Width) | - | Bulk | Obsolete | Buffer | - | 3 | 600 MHz | 1600V/µs | 21.5 mA | 70 mA | 9V ~ 11V, ±4.5V ~ 5.5V | Surface Mount | - | - | 16-TSSOP |
|

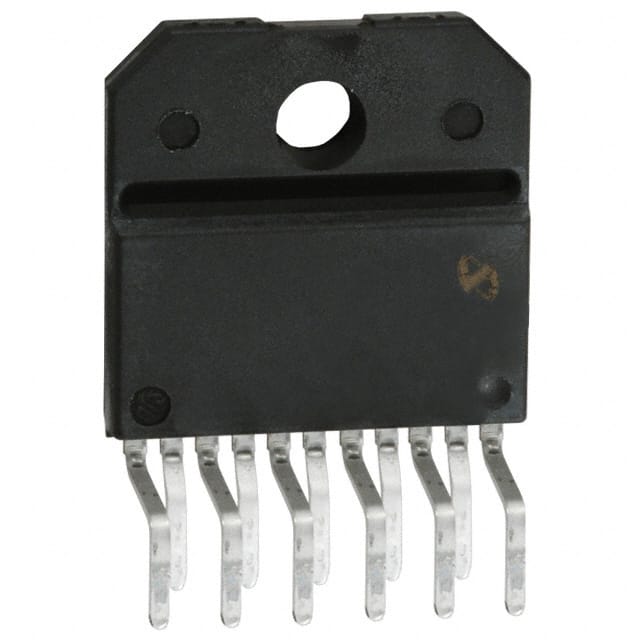

LM2418TVIDEO AMPLIFIER, 3 CHANNEL |
5,864 |
|
Datasheet |
TO-220-11 Formed Leads | - | Tube | Obsolete | CRT Driver | - | 3 | 30 MHz | - | 18 mA | - | - | Through Hole | - | - | TO-220-11 |
|
ISL24003IRZ-T7BUFFER AMPLIFIER, 1 FUNC, CMOS |
5,800 |
|
Datasheet |
44-VFQFN Exposed Pad | - | Bulk | Obsolete | TFT-LCD Panels: Gamma Buffer, VCOM Driver | Rail-to-Rail | 18 | 10 MHz | 9V/µs | 11.5 mA | 130 mA | 4.5V ~ 16.5V, ±2.25V ~ 8.25V | Surface Mount | - | - | 44-QFN (7x7) |
|
HFA1145IPZVIDEO AMPLIFIER |
978 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Current Feedback | - | 1 | 330 MHz | 2100V/µs | 5.8 mA | 60 mA | 9V ~ 11V, ±4.5V ~ 5.5V | Through Hole | - | - | 8-PDIP |
|
MAX453CPAIC AMP MPLEX AMP 8DIP |
8,408 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | 2:1 Multiplexer-Amplifier | - | 1 | 50 MHz | 300V/µs | 25 mA | 20 mA | ±4.5V ~ 5.5V | Through Hole | - | - | 8-PDIP |
|
AD8023AR-REELIC AMP VIDEO TRIPLE HC 14-SOIC |
15,000 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) | - | Bulk | Obsolete | Current Feedback | - | 3 | 125 MHz | 1200V/µs | 7 mA | 70 mA | 4.2V ~ 15V, ±2.1V ~ 7.5V | Surface Mount | - | - | 14-SOIC |
|
OPA615IDGSRIC AMP DC RESTORATION 10VSSOP |
8,380 |
|
Datasheet |
10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | DC Restoration | - | 1 | 710 MHz | 2500V/µs | 13 mA | 20 mA | ±4V ~ 6.2V | Surface Mount | - | - | 10-VSSOP |
|
ISL59441IAZVIDEO MULTIPLEXER |
23,070 |
|
Datasheet |
16-SSOP (0.154", 3.90mm Width) | - | Tube | Obsolete | 4:1 Multiplexer-Amplifier | - | 1 | 900 MHz | 1927V/µs | 17 mA | 180 mA | - | Surface Mount | - | - | 16-QSOP |
