Audio Amplifiers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Features | Mounting Type | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2-45057-QRIC AMP CLASS D STEREO 30W 68QFN |
7,652 |
|
Datasheet |
D2Audio™ | 68-VFQFN Exposed Pad | Tube | Obsolete | Class D | 2-Channel (Stereo) | 30W x 1 @ 8Ohm | 9V ~ 26V | - | Surface Mount | -10°C ~ 85°C (TA) | - | - | 68-QFN (10x10) |
|
|
D2-45157-QRIC DGTL AMP PWM CTRLR 68QFN |
2,404 |
|
Datasheet |
D2 | 68-VFQFN Exposed Pad | Tube | Obsolete | Class D | 2-Channel (Stereo) | 30W x 2 @ 8Ohm | 9V ~ 26V | - | Surface Mount | - | - | - | 68-QFN (10x10) |
|
CS35L01-CWZRIC AMP CLASS D MONO 3W 9WLCSP |
3,060 |
|
Datasheet |
- | 9-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Class D | 1-Channel (Mono) | 3W x 1 @ 4Ohm | 2.5V ~ 5.5V | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown | Surface Mount | -10°C ~ 70°C (TA) | - | - | 9-WLCSP (1.21 x 1.22) |
|

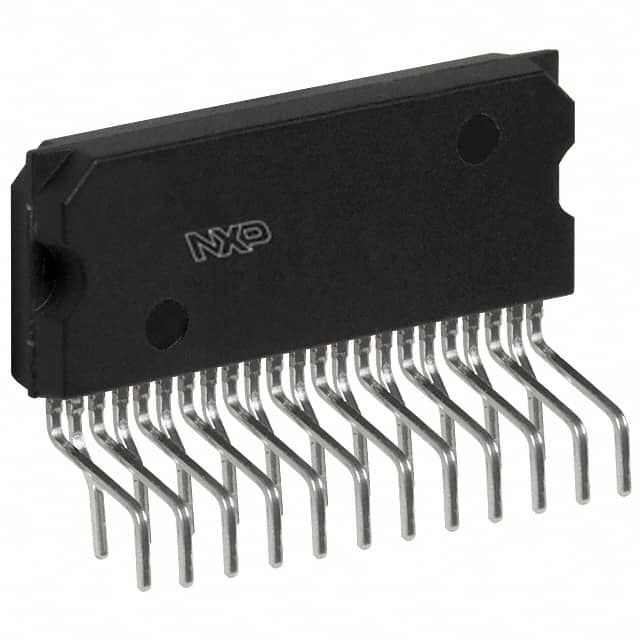

TDA8953J/N1,112IC AMP D MONO/STEREO 420W DBS23P |
6,086 |
|
Datasheet |
- | 23-SIP Formed Leads | Tube | Obsolete | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 420W x 1 @ 8Ohm, 210W x 2 @ 4Ohm | ±12.5V ~ 42.5V | Depop, Differential Inputs, Mute, Short-Circuit Protection | Through Hole | -40°C ~ 85°C (TA) | - | - | DBS23P |
|
TDA8953TH/N1,112IC AMP D MONO/STEREO 420W 24HSOP |
3,254 |
|
Datasheet |
- | 24-BSOP (0.433", 11.00mm Width) Exposed Pad | Tube | Obsolete | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 420W x 1 @ 8Ohm, 210W x 2 @ 4Ohm | ±12.5V ~ 42.5V | Depop, Differential Inputs, Mute, Short-Circuit Protection | Surface Mount | -40°C ~ 85°C (TA) | - | - | 24-HSOP |
|
TDA8595J/N2S,112IC AMP CLASS AB QUAD 64W DBS27P |
4,016 |
|
Datasheet |
- | 27-SIP, Formed Leads | Tube | Obsolete | Class AB | 4-Channel (Quad) | 64W x 4 @ 2Ohm | 8V ~ 18V | Depop, I2C, Mute, Short-Circuit and Thermal Protection, Standby | Through Hole | -40°C ~ 105°C (TA) | - | - | DBS27P |
|
D2-41051-QR-TKIC AMP CLASS D STEREO 48QFN |
8,314 |
|
Datasheet |
- | 48-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Class D | 2-Channel (Stereo) with Subwoofer | - | 1.7V ~ 1.9V | PWM Control | Surface Mount | -10°C ~ 85°C (TA) | - | - | 48-QFN (7x7) |
|
|
D2-41151-QR-TKIC DGTL AMP PWM CTRLR 48QFN |
3,528 |
|
Datasheet |
D2 | 48-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Class D | 2-Channel (Stereo) with Subwoofer | - | 1.7V ~ 1.9V | PWM Control | Surface Mount | - | - | - | 48-QFN (7x7) |
|
|
D2-41051-QRIC AMP CLASS D STEREO 48QFN |
6,694 |
|
Datasheet |
- | 48-VFQFN Exposed Pad | Tray | Obsolete | Class D | 2-Channel (Stereo) with Subwoofer | - | 1.7V ~ 1.9V | PWM Control | Surface Mount | -10°C ~ 85°C (TA) | - | - | 48-QFN (7x7) |
|
|
D2-41151-QRIC DGTL AMP PWM CTRLR 48QFN |
4,888 |
|
Datasheet |
D2 | 48-VFQFN Exposed Pad | Tray | Obsolete | Class D | 2-Channel (Stereo) with Subwoofer | - | 1.7V ~ 1.9V | PWM Control | Surface Mount | - | - | - | 48-QFN (7x7) |
|
LA4450-EIC AMP CLASS AB STER 20W 14SIPH |
2,364 |
|
- |
- | 14-SIP | Tube | Obsolete | Class AB | 2-Channel (Stereo) | 20W x 2 @ 4Ohm | 10V ~ 30V | Short-Circuit and Thermal Protection, Standby | Through Hole | -35°C ~ 80°C (TA) | - | - | 14-SIP |
|
|
LA4625-EIC AMP AB STEREO 13.5W 14SIPHZ |
3,152 |
|
- |
- | 14-SIP Exposed Pad, Formed Leads | Tube | Obsolete | Class AB | 2-Channel (Stereo) | 13.5W x 2 @ 4Ohm | 7.2V ~ 20V | Depop, Short-Circuit and Thermal Protection, Standby | Through Hole | -20°C ~ 85°C (TA) | - | - | 14-SIPHZ |
|
LA4708N-EIC AMP CLASS AB STER 30W 18SIPH |
6,668 |
|
Datasheet |
- | 18-SIP Exposed Pad | Tube | Obsolete | Class AB | 2-Channel (Stereo) | 30W x 2 @ 2Ohm | 9V ~ 16V | Depop, Mute, Short-Circuit and Thermal Protection, Standby | Through Hole | -35°C ~ 85°C (TA) | - | - | 18-SIPH |
|

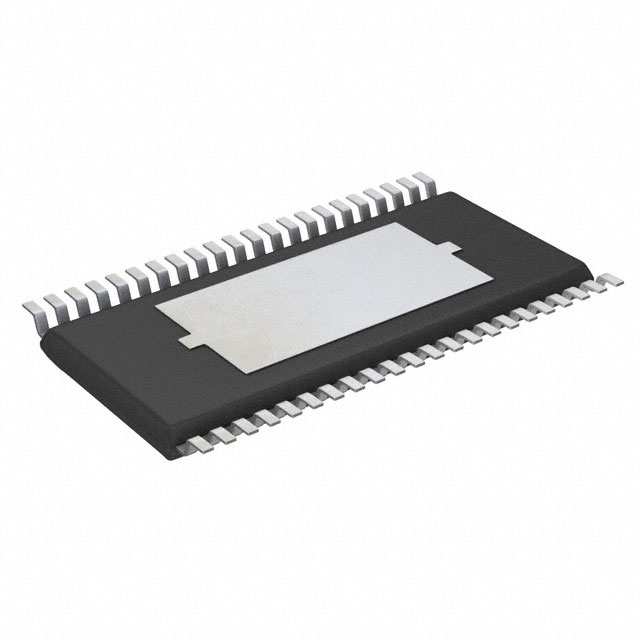

LV49152V-TLM-EIC AMP CLASS D STER 15W 44SSOPJ |
5,890 |
|
Datasheet |
- | 44-LSSOP (0.220", 5.60mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Class D | 2-Channel (Stereo) | 15W x 2 @ 8Ohm | 9V ~ 18V | Mute, Short-Circuit and Thermal Protection, Standby | Surface Mount | -25°C ~ 75°C (TA) | - | - | 44-SSOPJ |
|
|
LV49157V-TLM-HIC AMP CLASS D STER 15W 44SSOPJ |
7,448 |
|
Datasheet |
- | 44-LSSOP (0.220", 5.60mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Class D | 2-Channel (Stereo) with Stereo Headphones | 15W x 2 @ 8Ohm; 72mW x 2 @ 16Ohm | 9V ~ 18V | Mute, Short-Circuit and Thermal Protection, Standby | Surface Mount | -25°C ~ 75°C (TA) | - | - | 44-SSOPJ |
|
|
LV49821VH-TLM-HIC AMP CLSS AB STER 1.4W 13HSSOP |
9,566 |
|
Datasheet |
- | 16-LSSOP (0.173", 4.40mm Width), 13 Leads | Tape & Reel (TR) | Obsolete | Class AB | 2-Channel (Stereo) with Stereo Headphones | 1.4W x 2 @ 8Ohm | 2.7V ~ 5.5V | Standby, Thermal Protection | Surface Mount | -30°C ~ 75°C (TA) | - | - | 13-HSSOP |
|
TDA7496SAIC AMP AB STEREO 5.5W 15CLIPWATT |
7,490 |
|
Datasheet |
- | Clipwatt-15 (Vertical, Bent and Staggered Leads) | Tube | Obsolete | Class AB | 2-Channel (Stereo) | 5.5W x 2 @ 8Ohm | 10V ~ 32V | Depop, Mute, Short-Circuit and Thermal Protection, Standby, Volume Control | Through Hole | 0°C ~ 70°C (TA) | - | - | 15-Clipwatt |
|
|
TDA8566TH1/N2S,118IC AMP CLASS B STEREO 55W 24HSOP |
6,752 |
|
Datasheet |
- | 24-BSOP (0.433", 11.00mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Class B | 2-Channel (Stereo) | 55W x 2 @ 2Ohm | 6V ~ 18V | Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby | Surface Mount | -40°C ~ 85°C (TA) | - | - | 24-HSOP |
|
|
TDA8594SD/N1S,112IC AMP CLASS AB QUAD 75W 27RDBS |
9,292 |
|
Datasheet |
- | 27-SIP Formed Leads | Tube | Obsolete | Class AB | 4-Channel (Quad) | 75W x 4 @ 2Ohm | 8V ~ 18V | I2C, Mute, Short-Circuit and Thermal Protection, Standby | Through Hole | -40°C ~ 105°C (TA) | - | - | 27-RDBS |
|
TDA8595TH/N2S,112IC AMP CLASS AB QUAD 64W 36HSOP |
8,208 |
|
Datasheet |
- | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | Tube | Obsolete | Class AB | 4-Channel (Quad) | 64W x 4 @ 2Ohm | 8V ~ 18V | Depop, I2C, Mute, Short-Circuit and Thermal Protection, Standby | Surface Mount | -40°C ~ 105°C (TA) | - | - | 36-HSOP |
