Audio Amplifiers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Features | Mounting Type | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM4834MSX/NOPBIC AMP CLASS AB MONO 1.1W 28SSOP |
7,168 |
|
- |
Boomer® | 28-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Class AB | 1-Channel (Mono) with Stereo Headphones | 1.1W x 1 @ 8Ohm; 95mW x 2 @ 32Ohm | 4.5V ~ 5.5V | Depop, Microphone, Mute, Shutdown, Thermal Protection, Volume Control | Surface Mount | -40°C ~ 85°C (TA) | - | - | 28-SSOP |
|
LM4835MTEX/NOPBIC AMP AB STEREO 2.2W 28HTSSOP |
9,778 |
|
Datasheet |
Boomer® | 28-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Class AB | 2-Channel (Stereo) with Stereo Headphones | 2.2W x 2 @ 3Ohm; 95mW x 2 @ 32Ohm | 2.7V ~ 5.5V | Depop, Mute, Shutdown, Thermal Protection, Volume Control | Surface Mount | -40°C ~ 85°C (TA) | - | - | 28-HTSSOP |
|
LM4836MTX/NOPBIC AMP CLSS AB STER 2.2W 28TSSOP |
9,392 |
|
Datasheet |
Boomer® | 28-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Class AB | 2-Channel (Stereo) with Stereo Headphones | 2.2W x 2 @ 3Ohm; 95mW x 2 @ 32Ohm | 2.7V ~ 5.5V | Bass Boost, Depop, Input Multiplexer, Mute, Shutdown, Thermal Protection, Volume Control | Surface Mount | -40°C ~ 85°C (TA) | - | - | 28-TSSOP |
|
LM4850MM/NOPBIC AMP CLSS AB MONO 1.9W 10VSSOP |
7,628 |
|
Datasheet |
Boomer® | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Class AB | 1-Channel (Mono) with Stereo Headphones | 1.9W x 1 @ 3Ohm; 300mW x 2 @ 8Ohm | 2.4V ~ 5.5V | Depop, Shutdown, Thermal Protection | Surface Mount | -40°C ~ 85°C (TA) | - | - | 10-VSSOP |
|
LM4850MMXIC AMP CLSS AB MONO 1.9W 10VSSOP |
7,964 |
|
Datasheet |
Boomer® | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Class AB | 1-Channel (Mono) with Stereo Headphones | 1.9W x 1 @ 3Ohm; 300mW x 2 @ 8Ohm | 2.4V ~ 5.5V | Depop, Shutdown, Thermal Protection | Surface Mount | -40°C ~ 85°C (TA) | - | - | 10-VSSOP |
|
LM4863LQXIC AMP CLASS AB STER 3.2W 24WQFN |
6,934 |
|
Datasheet |
Boomer® | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Class AB | 2-Channel (Stereo) with Stereo Headphones | 3.2W x 2 @ 3Ohm; 440mW x 2 @ 8Ohm | 2V ~ 5.5V | Depop, Shutdown, Thermal Protection | Surface Mount | -40°C ~ 85°C (TA) | - | - | 24-WQFN (4x5) |
|
LM4863MTEX/NOPBIC AMP AB STEREO 3.2W 20HTSSOP |
8,778 |
|
Datasheet |
Boomer® | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Class AB | 2-Channel (Stereo) with Stereo Headphones | 3.2W x 2 @ 3Ohm; 440mW x 2 @ 8Ohm | 2V ~ 5.5V | Depop, Shutdown, Thermal Protection | Surface Mount | -40°C ~ 85°C (TA) | - | - | 20-HTSSOP |
|
LM4863MTX/NOPBIC AMP CLSS AB STER 3.2W 20TSSOP |
5,088 |
|
Datasheet |
Boomer® | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Class AB | 2-Channel (Stereo) with Stereo Headphones | 3.2W x 2 @ 3Ohm; 440mW x 2 @ 8Ohm | 2V ~ 5.5V | Depop, Shutdown, Thermal Protection | Surface Mount | -40°C ~ 85°C (TA) | - | - | 20-TSSOP |
|
LM4863MX/NOPBIC AMP CLASS AB STER 3.2W 16SOIC |
5,108 |
|
Datasheet |
Boomer® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Class AB | 2-Channel (Stereo) with Stereo Headphones | 3.2W x 2 @ 3Ohm; 440mW x 2 @ 8Ohm | 2V ~ 5.5V | Depop, Shutdown, Thermal Protection | Surface Mount | -40°C ~ 85°C (TA) | - | - | 16-SOIC |
|

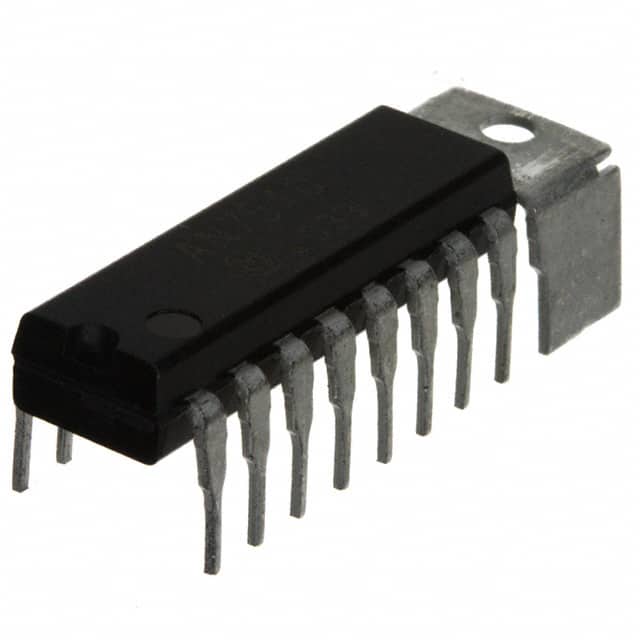

AN7510IC AMP CLASS AB STER 1.1W 16DIP |
8,280 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) + Ground Tab | Tube | Obsolete | Class AB | 2-Channel (Stereo) | 1.1W x 2 @ 8Ohm | 3.5V ~ 13.5V | Mute, Standby, Thermal Protection, Volume Control | Through Hole | -25°C ~ 70°C (TA) | - | - | 16-DIP |
|

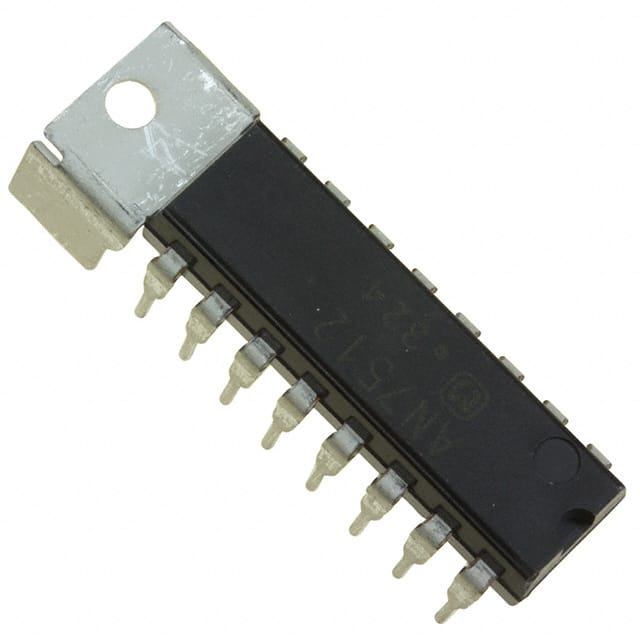

AN7512IC AMP CLASS AB STEREO 1W 16DIP |
8,072 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) + Ground Tab | Tube | Obsolete | Class AB | 2-Channel (Stereo) | 1W x 2 @ 8Ohm | 3.5V ~ 13.5V | Standby, Thermal Protection, Volume Control | Through Hole | -25°C ~ 70°C (TA) | - | - | 16-DIP |
|
AN7511IC AMP CLASS AB MONO 1.1W 8DIP |
5,520 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | - | Obsolete | Class AB | 1-Channel (Mono) | 1.1W x 1 @ 8Ohm | 3.5V ~ 13.5V | Mute, Standby, Thermal Protection | Through Hole | -25°C ~ 70°C (TA) | - | - | 8-DIP |
|
|
AN7513IC AMP CLASS AB MONO 1W 8DIP |
9,386 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | - | Obsolete | Class AB | 1-Channel (Mono) | 1W x 1 @ 8Ohm | 3.5V ~ 13.5V | Standby, Thermal Protection, Volume Control | Through Hole | -25°C ~ 70°C (TA) | - | - | 8-DIP |
|

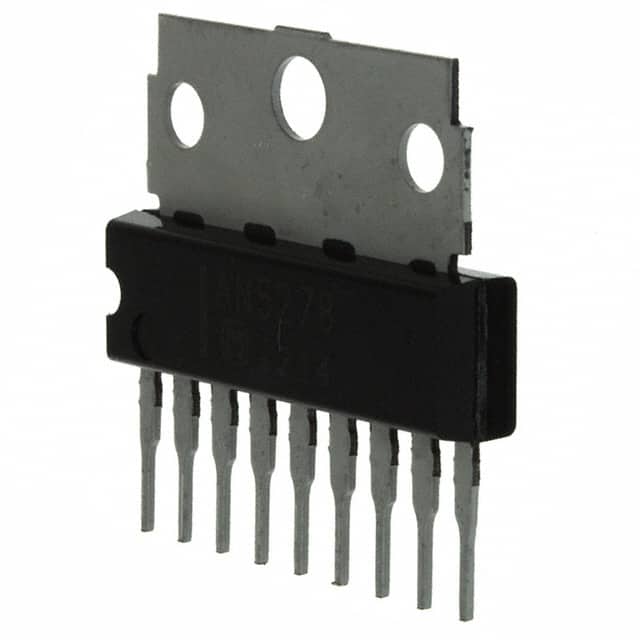

AN5278IC AMP CLASS AB MONO 9W 9HSIP |
4,370 |
|
Datasheet |
- | 9-SIP | Bulk | Obsolete | Class AB | 1-Channel (Mono) | 9W x 1 @ 8Ohm | 12V ~ 26V | Mute, Tone and Volume Control | Through Hole | -20°C ~ 70°C (TA) | - | - | 9-HSIP |
|

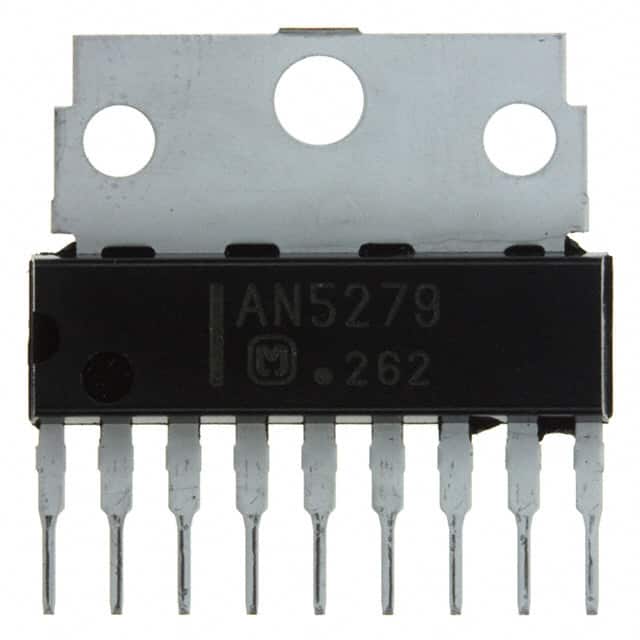

AN5279IC AMP CLASS AB MONO 7W 9HSIP |
7,690 |
|
Datasheet |
- | 9-SIP | Bulk | Obsolete | Class AB | 1-Channel (Mono) | 7W x 1 @ 8Ohm | 10V ~ 24V | Mute, Short-Circuit and Thermal Protection, Standby | Through Hole | -25°C ~ 75°C (TA) | - | - | 9-HSIP |
|

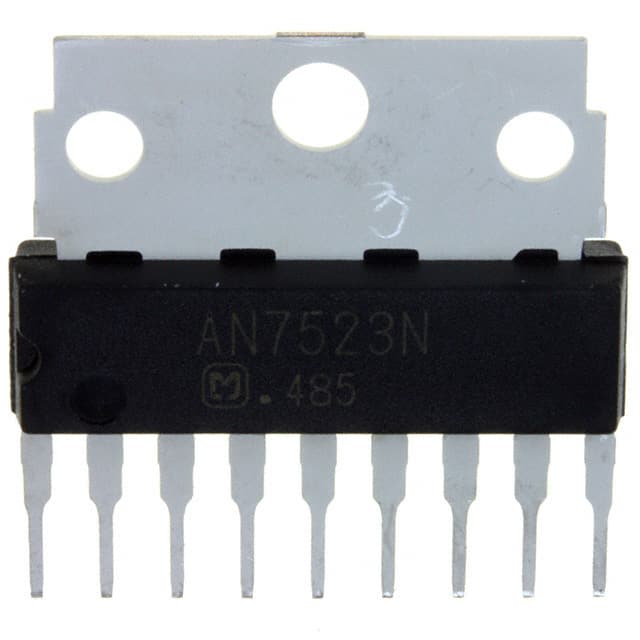

AN7523NIC AMP CLASS AB MONO 4W 9HSIP |
7,344 |
|
Datasheet |
- | 9-SIP | - | Obsolete | Class AB | 1-Channel (Mono) | 4W x 1 @ 8Ohm | 3.5V ~ 13.5V | Standby, Thermal Protection, Volume Control | Through Hole | -25°C ~ 70°C (TA) | - | - | 9-HSIP |
|

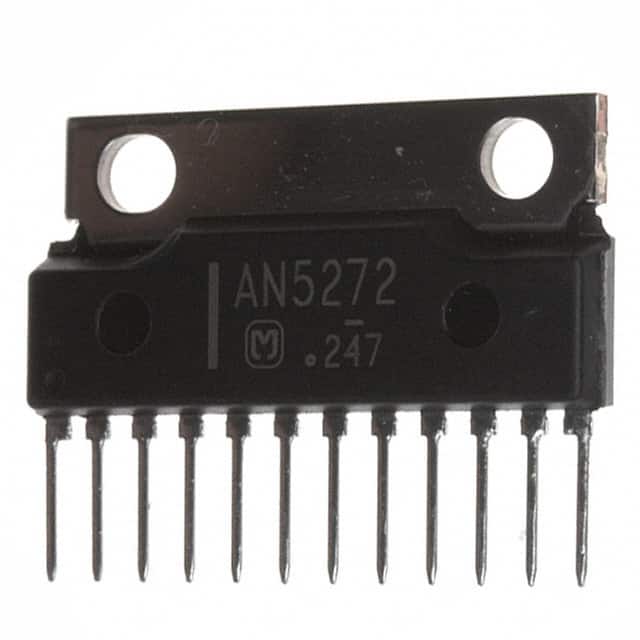

AN5272IC AMP CLASS AB STER 4.1W 12SIL |
3,652 |
|
Datasheet |
- | 12-SIP + Tab | Bulk | Obsolete | Class AB | 2-Channel (Stereo) | 4.1W x 2 @ 8Ohm | 12.2V ~ 27.5V | Short-Circuit and Thermal Protection, Volume Control | Through Hole | -25°C ~ 75°C (TA) | - | - | 12-SIL |
|

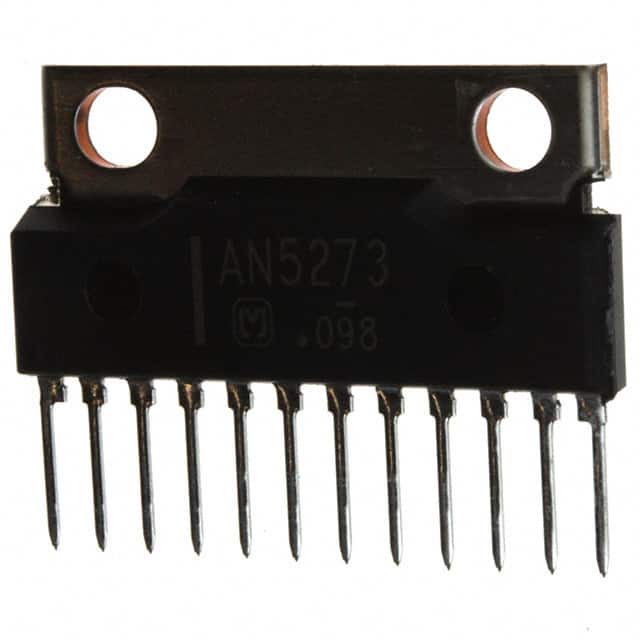

AN5273IC AMP CLASS AB STER 4.1W 12SIL |
2,228 |
|
Datasheet |
- | 12-SIP + Tab | Bulk | Obsolete | Class AB | 2-Channel (Stereo) | 4.1W x 2 @ 8Ohm | 12.2V ~ 27.5V | Mute, Short-Circuit and Thermal Protection, Volume Control | Through Hole | -25°C ~ 75°C (TA) | - | - | 12-SIL |
|
|
AN5274IC AMP CLASS AB STER 4.1W 12SIL |
6,186 |
|
Datasheet |
- | 12-SIP + Tab | Bulk | Obsolete | Class AB | 2-Channel (Stereo) | 4.1W x 2 @ 8Ohm | 14.2V ~ 27.5V | Mute, Short-Circuit and Thermal Protection, Volume Control | Through Hole | -25°C ~ 75°C (TA) | - | - | 12-SIL |
|

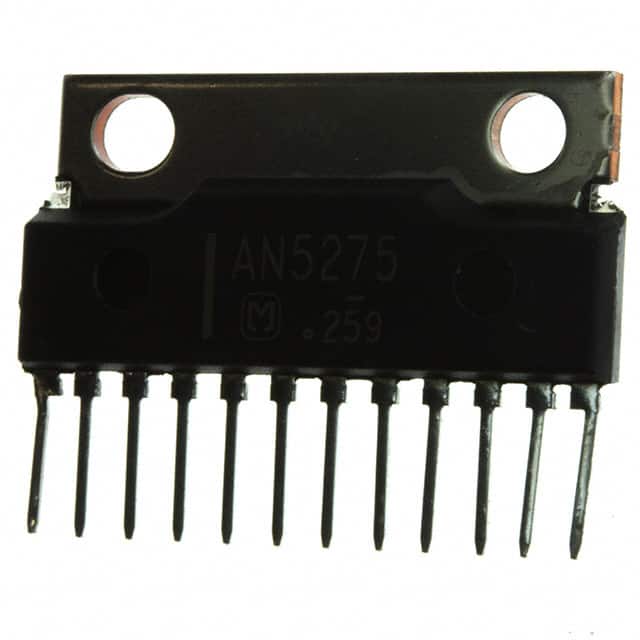

AN5275IC AMP CLASS AB STEREO 15W 12SIL |
6,248 |
|
Datasheet |
- | 12-SIP + Tab | Bulk | Obsolete | Class AB | 2-Channel (Stereo) | 15W x 2 @ 8Ohm | 10V ~ 40V | Mute, Short-Circuit and Thermal Protection | Through Hole | -25°C ~ 80°C (TA) | - | - | 12-SIL |
