Signal Buffers, Repeaters, Splitters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Applications | Input | Output | Data Rate (Max) | Number of Channels | Delay Time | Signal Conditioning | Capacitance - Input | Voltage - Supply | Current - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS15BR400TSQIC REDRIVER LVDS 4CH 32WQFN |
5,402 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Buffer, ReDriver | LVDS | CML, LVDS, LVPECL | LVDS | 2Gbps | 4 | 1.0ns | Output Pre-Emphasis | 3 pF | 3V ~ 3.6V | 175mA | -40°C ~ 85°C | - | - | Surface Mount | 32-WQFN (5x5) |
|
DS100KR401SQ/NOPBIC REDRIVER 8CH 10.3GBPS 54WQFN |
9,036 |
|
Datasheet |
- | 54-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | - | CML | CML | 10.3Gbps | 8 | 200ps | Input Equalization, Output De-Emphasis | 10 pF | 2.375V ~ 3.6V | - | -40°C ~ 85°C | - | - | Surface Mount | 54-WQFN (10x5.5) |
|
|
DS100KR800SQ/NOPBIC REDRIVER 8CH 10.3GBPS 54WQFN |
2,974 |
|
Datasheet |
- | 54-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | - | CML | CML | 10.3Gbps | 8 | 200ps | Input Equalization, Output De-Emphasis | 10 pF | 2.375V ~ 3.6V | - | -40°C ~ 85°C | - | - | Surface Mount | 54-WQFN (10x5.5) |
|
PI3EQX32908ZRIEXPCIE EQX W-QFN3590-62 T&R 3.5K |
9,764 |
|
Datasheet |
- | 62-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | I2C, PCIe, SAS | CML | CML | 32Gbps | 8 | - | Input Equalization | - | 3V ~ 3.6V | - | -40°C ~ 85°C | - | - | Surface Mount | 62-WQFN (3.5x9) |
|
|
DS125BR800SQ/NOPBIC REDRIVER PCIE/SAS 8CH 54WQFN |
5,902 |
|
Datasheet |
- | 54-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | PCIe, SAS | CML | CML | 12.5Gbps | 8 | 200ps | Input Equalization, Output De-Emphasis | 10 pF | 2.375V ~ 3.6V | - | -40°C ~ 85°C | - | - | Surface Mount | 54-WQFN (10x5.5) |
|

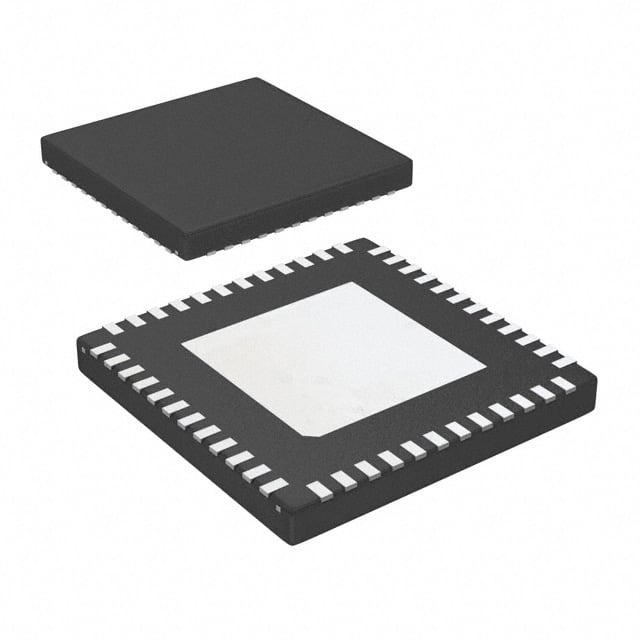

DS40MB200SQ/NOPBIC MULTIPLEXER 2CH 4GBPS 48WQFN |
6,220 |
|
Datasheet |
- | 48-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, Multiplexer | - | CML | CML | 4Gbps | 2 x 1:2, 2:1 | 500ps | Input Equalization, Output Pre-Emphasis | - | 3.135V ~ 3.465V | - | -40°C ~ 85°C | - | - | Surface Mount | 48-WQFN (7x7) |
|
SCAN15MB200TSQ/NOPBIC MULTIPLEXER LVDS 2CH 48WQFN |
3,396 |
|
Datasheet |
- | 48-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, Multiplexer | LVDS | CML, LVDS, LVPECL | LVDS | 1.5Gbps | 2 x 2:1, 1:2 | 1.0ns | Output Pre-Emphasis | 2 pF | 3V ~ 3.6V | 225mA | -40°C ~ 85°C | - | - | Surface Mount | 48-WQFN (7x7) |
|
|
MAX9153EUI+TIC REDRIVER LVDS 1CH 28TSSOP |
4,318 |
|
- |
- | 28-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Buffer, ReDriver | LVDS | LVDS | LVDS | 800Mbps | 1 | 2.3ns | - | - | 3V ~ 3.6V | 118mA | -40°C ~ 85°C | - | - | Surface Mount | 28-TSSOP |
|
|
DS42MB200TSQ/NOPBIC MULTIPLEXER 2CH 48WQFN |
9,402 |
|
Datasheet |
- | 48-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, Multiplexer | - | CML | CML | 4.25Gbps | 2 x 1:2, 2:1 | 500ps | Input Equalization, Output Pre-Emphasis | - | 3.135V ~ 3.465V | - | -40°C ~ 85°C | - | - | Surface Mount | 48-WQFN (7x7) |
|

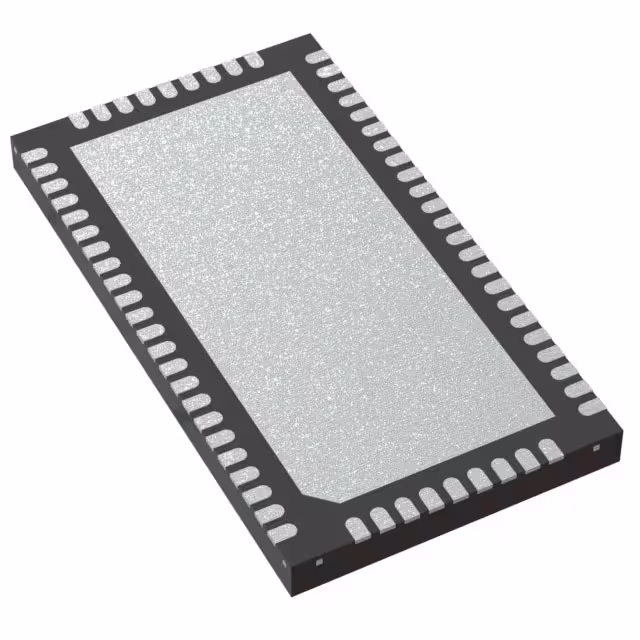

DS160UP822NJXTIC INTERFACE |
8,058 |
|
Datasheet |
- | 64-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | PCI Express | LVCMOS | Differential | 16Gbps | 8 | 90ps | Input Equalization | 1.5 pF | 3V ~ 3.6V | 260mA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 64-WQFN (5.5x10) |
|
PI2EQX5904NJEXIC REDRIVER PCIE 4CH 100LBGA |
2,084 |
|
Datasheet |
PCI Express®(PCIe), ReDriver™ | 100-LBGA | Tape & Reel (TR) | Obsolete | Buffer, ReDriver | PCIe | CML | CML | 5Gbps | 8 | 750ps | Input Equalization, Output De-Emphasis | - | 1.2V | 800mA | -40°C ~ 85°C | - | - | Surface Mount | 100-LBGA (11x11) |
|
|
DS125BR820NJYRIC REDRIVER PCIE/SAS/SATA 54WQFN |
8,244 |
|
Datasheet |
- | 54-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | PCIe, SAS, SATA | CML | CML | 12.5Gbps | 8 | 80ps | Input Equalization, Output De-Emphasis | - | 2.5V ~ 3.3V | 220mA | -40°C ~ 85°C | - | - | Surface Mount | 54-WQFN (10x5.5) |
|
MAX4952ACTI+TIC REDRIVER SAS/SATA 2CH 28TQFN |
8,970 |
|
- |
- | 28-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | SAS, SATA | - | - | - | 2 | 300ps | Input Equalization, Output Pre-Emphasis | - | 3V ~ 3.6V | 175mA | 0°C ~ 70°C | - | - | Surface Mount | 28-TQFN (3.5x5.5) |
|
SN65LVCP1412RLHTIC REDRIVER 2CH 14.2GBPS 24WQFN |
2,120 |
|
Datasheet |
- | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Buffer, ReDriver | - | CML | CML | 14.2Gbps | 2 | 65ps | Input Equalization, Output Pre-Emphasis | - | 2.375V ~ 3.465V | - | -40°C ~ 85°C | - | - | Surface Mount | 24-WQFN (4x5) |
|
MAX14982ETO+IC REDRIVER PCIE 1CH 42TQFN |
5,690 |
|
- |
- | 42-WFQFN Exposed Pad | Tray | Obsolete | Buffer, ReDriver | PCIe | - | - | - | 1 | 280ps | Input Equalization, Output De-Emphasis | - | 3V ~ 3.6V | 160mA | -40°C ~ 85°C | - | - | Surface Mount | 42-TQFN (3.5x9) |
|
|
DS125BR401SQ/NOPBIC REDRIVER PCIE 8CH 54WQFN |
4,088 |
|
Datasheet |
- | 54-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | PCIe | CML | CML | 12.5Gbps | 8 | 200ps | Input Equalization, Output De-Emphasis | 10 pF | 2.375V ~ 3.6V | - | -40°C ~ 85°C | - | - | Surface Mount | 54-WQFN (10x5.5) |
|
|
DS560MB410ZASR56-GBPS, 4-CHANNEL REDRIVER WITH |
9,374 |
|
Datasheet |
- | 101-TFBGA | Tape & Reel (TR) | Active | Buffer, ReDriver | Ethernet | Differential | Differential | 56Gbps | 4 | - | Input Equalization | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 101-NFBGA (6x6) |
|
DS100BR410SQ/NOPBIC REDRIVER SATA 4CH 48WQFN |
5,054 |
|
Datasheet |
- | 48-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | SATA | CML | CML | 10.3Gbps | 4 | 240ps | Input Equalization, Output De-Emphasis | 10 pF | 2.375V ~ 2.625V | - | -40°C ~ 85°C | - | - | Surface Mount | 48-WQFN (7x7) |
|
|
MAX14954ETO+TIC REDRIVER PCIE 4CH 42TQFN |
8,608 |
|
Datasheet |
- | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | PCIe | - | - | - | 4 | 160ps | Input Equalization, Output De-Emphasis | - | 3V ~ 3.6V | 205mA | -40°C ~ 85°C | - | - | Surface Mount | 42-TQFN (3.5x9) |
|
|
DS160PT801ACBRPCIE 4.016-GBPS8-LANE (16-CHANNE |
4,918 |
|
Datasheet |
- | 332-TFBGA, FCBGA | Tape & Reel (TR) | Active | Retimer | PCI Express® | - | - | 16Gbps | 16 | - | Input Equalization | - | 1.17V, 1.8V | - | -40°C ~ 85°C | - | - | Surface Mount | 332-FCBGA (8.5x13.4) |
