Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD74HCT4052M96IC SWITCH SP4T X 2 130OHM 16SOIC |
23,758 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 130Ohm | 5Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | - | 185MHz | - | 5pF, 12pF | 200nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TS5A2066YZPRIC SWITCH SPST-NOX2 10OHM 8DSBGA |
25,008 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 10Ohm | 1Ohm | 1.65V ~ 5.5V | - | 5.8ns, 3.6ns | 300MHz | 1pC | 5.5pF, 5.5pF | 30nA | -68dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DSBGA |
|
74HCT4316D,118IC SWITCH SPST-NOX4 135OHM 16SO |
2,936 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 135Ohm | 6Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | 42ns, 34ns | 160MHz | - | 3.5pF | 100nA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
|
HEF4052BT-Q100,118IC SWITCH SP4T X 2 155OHM 16SO |
33,920 |
|
Datasheet |
4000B | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 155Ohm | 5Ohm | 3V ~ 15V | - | - | 70MHz | - | 7.5pF | 200nA | -50dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SO |
|
TC7WB67CFK,LF(CTIC SWITCH SPST X 2 12OHM US8 |
6,548 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 2 | 12Ohm | - | 1.65V ~ 5.5V | - | 4ns, 4.5ns | - | - | 5pF | 1µA | - | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|
SN74AUC2G66DCTRIC SWITCH SPST-NO X 2 15OHM SM8 |
37,680 |
|
Datasheet |
74AUC | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 15Ohm | 1Ohm (Max) | 0.8V ~ 2.7V | - | 2.3ns, 2ns | 500MHz | - | 3pF | 1µA | -60dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SM8 |
|
TC7SBL66CFU,LF(CTIC SWITCH SPST-NCX1 18OHM 5SSOP |
6,034 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 18Ohm | - | 1.65V ~ 3.6V | - | 6ns, 6ns | - | - | 3.5pF | 1µA | - | -40°C ~ 85°C | - | - | Surface Mount | 5-SSOP |
|
HEF4051BTT,118IC MUX 8:1 155OHM 16TSSOP |
90,658 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 155Ohm | 5Ohm | 3V ~ 15V | - | - | 70MHz | - | 7.5pF | 200nA | -50dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
HEF4051BT-Q100,118IC MUX 8:1 155OHM 16SO |
53,582 |
|
Datasheet |
4000B | Tape & Reel (TR) | Active | - | 8:1 | 1 | 155Ohm | 5Ohm | 3V ~ 15V | - | - | 70MHz | - | 7.5pF | 200nA | -50dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SO |
|
TS12A4517DBVRIC SWITCH SPST-NCX1 20OHM SOT23 |
21,506 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 20Ohm | - | - | ±1V ~ 6V | 75ns, 45ns | 464MHz | -13pC | 5.5pF, 5.5pF | 5nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
SN74LV4052ATPWREPIC SWITCH SP4TX2 100OHM 16TSSOP |
3,494 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 100Ohm | 20Ohm (Max) | 2V ~ 5.5V | - | 18ns, 18ns | 50MHz | - | - | 1µA | -45dB @ 1MHz | -40°C ~ 105°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
CD74HC4052NSRIC SWITCH SP4T X 2 130OHM 16SO |
7,666 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 130Ohm | 5Ohm | 2V ~ 6V | ±1V ~ 5V | - | 185MHz | - | 12pF | 200nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
, SC-88A, SOT-353.jpg)
|

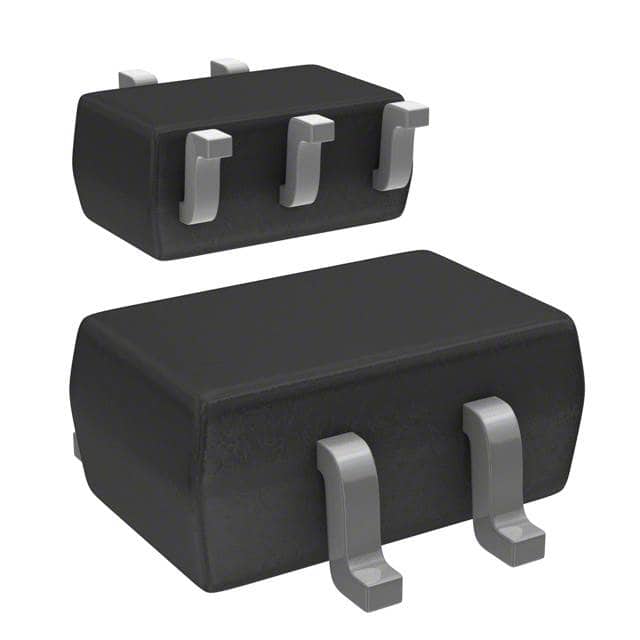

TC7SB66CFU,LF(CTIC SWITCH SPST-NC X 1 7OHM USV |
28,730 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 7Ohm | - | 1.65V ~ 5.5V | - | 4ns, 4.5ns | - | - | 5pF | 1µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | USV |
|
|
74HCT4852PW,118IC SWITCH SP4TX2 210OHM 16TSSOP |
9,410 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 210Ohm | 2Ohm | 4.5V ~ 5.5V | - | 25ns, 80ns | - | - | 10pF | 100nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
XS3A4053PWJIC SWITCH SPDTX3 900MOHM 16TSSOP |
8,204 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 900mOhm | 130mOhm (Max) | 1.4V ~ 4.3V | - | 20ns, 40ns | 40MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
|
SN74HC4852PWRIC SWITCH SP4TX2 195OHM 16TSSOP |
4,846 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 195Ohm | 3Ohm | 2V ~ 6V | - | 39ns, 78ns | - | - | 22pF | 200nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
CD4053BNSRIC SWITCH SPDT X 3 240OHM 16SO |
6,938 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 240Ohm | 5Ohm | 3V ~ 20V | ±2.5V ~ 9V | - | 30MHz | - | 0.2pF, 9pF | 100nA | -40dB @ 6MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
|
SN74HC4851QPWRQ1IC MUX 8:1 195OHM 16TSSOP |
7,890 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 195Ohm | 3Ohm | 2V ~ 6V | - | 78ns, 78ns | - | - | 22pF | 200nA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-TSSOP |
|
|
74HCT4851PW,118IC MUX 8:1 210OHM 16TSSOP |
5,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 210Ohm | 2Ohm | 4.5V ~ 5.5V | - | 25ns, 80ns | - | - | 10pF | 100nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
SN74AUC2G53DCTRIC SWITCH SPDT X 1 15OHM SM8 |
14,464 |
|
Datasheet |
74AUC | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 15Ohm | 1Ohm (Max) | 0.8V ~ 2.7V | - | 2.2ns, 2.3ns | 500MHz | - | 3pF, 4.5pF | 1µA | -60dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SM8 |
