Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG413DY-T1-E3IC SW SPST-NO/NCX4 35OHM 16SOIC |
5,352 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|

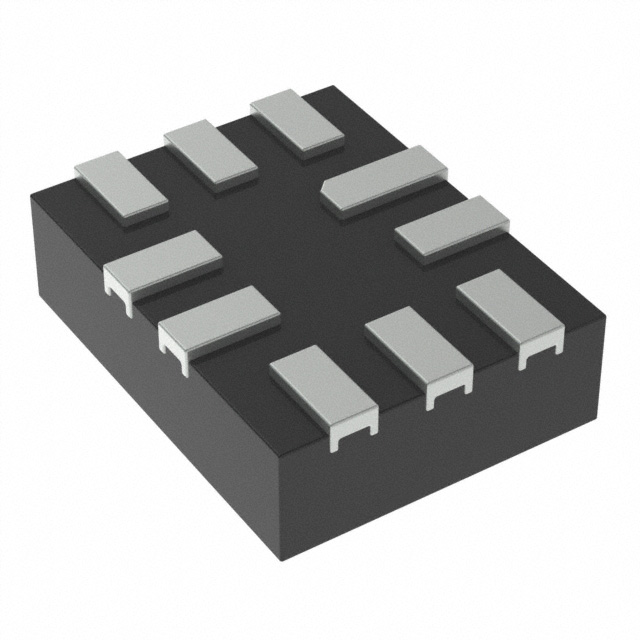

PI3USB4000AZMEXIC SWITCH SPDT X 1 8OHM 10UQFN |
4,128 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 1:2 | 1 | 8Ohm | 500mOhm | 2.7V ~ 6V | - | 100µs, 50ns (Typ) | 1GHz | - | 5pF, 9pF | 1µA | -35dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|
DG212BDQ-T1-E3IC SW SPST-NOX4 85OHM 16TSSOP |
11,216 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
PI3USB4000DQ1ZUAEXIC SWITCH SPDT X 1 10OHM 10UQFN |
38,756 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 10Ohm | 500mOhm | 2.7V ~ 5.5V | - | 100µs, 50ns | 1GHz | - | 5pF | 1µA | -35dB @ 240MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 10-UQFN (1.5x2) |
|
|
DG508BEY-T1-E3IC MUX 8:1 380OHM 16SOIC |
4,800 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 380Ohm | 10Ohm | 12V ~ 44V | ±5V ~ 20V | 250ns, 240ns | 250MHz | 2pC | 3pF, 13pF | 1nA | -88dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TMUX1136DGSRIC SWITCH SPDT X 2 4OHM 10VSSOP |
11,800 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 220MHz | 6pC | 6pF | 80pA | -80dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-VSSOP |
|
TMUX1104DQARIC SWITCH SP4T X 1 4OHM 10USON |
10,140 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | 12ns, 5ns (Typ) | 155MHz | 1.5pC | 6pF, 28pF | 80pA | -45dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-USON (2.5x1) |
|

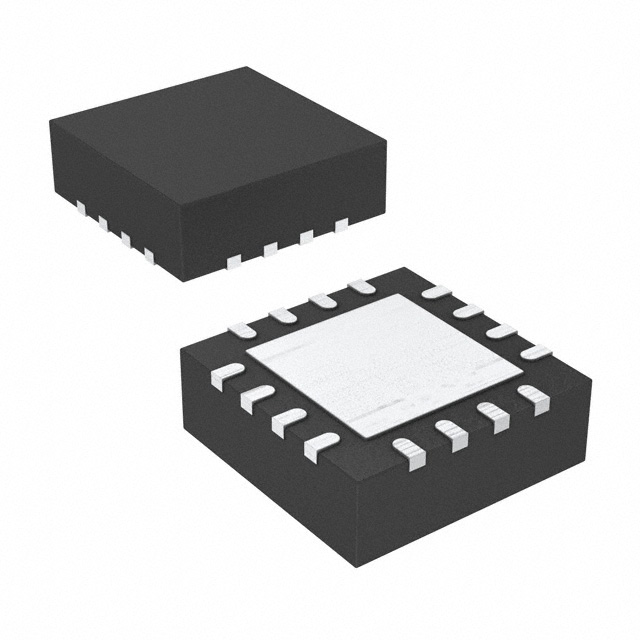

DG9409EDN-T1-GE4IC MUX DUAL 4:1 7OHM 16QFN |
8,818 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 4:1 | 2 | 7Ohm | 3.6Ohm (Max) | 2.7V ~ 12V | ±3V ~ 6V | 70ns, 44ns | - | 29pC | 23pF, 112pF | 2nA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (4x4) |
|
|
TMUX1136DQARIC SWITCH SPDT X 2 4OHM 10USON |
5,206 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 220MHz | -6pC | 6pF | 80pA | -80dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-USON (2.5x1) |
|
|
TMUX1104DGSRIC MUX 4:1 4OHM 10VSSOP |
12,746 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | 4Ohm | 130mOhm | - | - | 12ns, 5ns (Typ) | 155MHz | 1.5pC | 6pF, 28pF | 80pA | -65dB ~ -45dB @ 1MHz ~ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-VSSOP |
|
ISL43L210IHZ-TIC SWITCH SPDTX1 360MOHM SC70-6 |
63,442 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 360mOhm (Typ) | 2mOhm | 1.1V ~ 4.5V | - | 15ns, 10ns | - | 25pC | 40pF | 30nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
TMUX1111PWRIC SWITCH SPST X 4 4OHM 16TSSOP |
22,392 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | -, - | 300MHz | -1.5pC | 7pF, 10pF | 80pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG9424EDQ-T1-GE3IC SWITCH SPST-NOX4 3OHM 16TSSOP |
84,768 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 3Ohm | - | 3V ~ 16V | ±3V ~ 8V | 51ns, 35ns | - | 38pC | 49pF, 37pF | 1nA | -77dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG9424EDN-T1-GE4IC SWITCH SPST-NC X 4 3OHM 16QFN |
8,558 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 3Ohm | - | 3V ~ 16V | ±3V ~ 8V | 51ns, 35ns | - | 38pC | 49pF, 37pF | 1nA | -77dB @ 1MHz | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (4x4) |
|
TMUX1112RSVRIC SWITCH SPST X 4 4OHM 16UQFN |
54,956 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 300MHz | -1.5pC | 7pF, 10pF | 80pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-UQFN (2.6x1.8) |
|
MAX4514EUK+TIC SWITCH SPST-NOX1 20OHM SOT23 |
43,958 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 20Ohm | - | 2V ~ 12V | - | 150ns, 100ns | - | 2pC | 14pF, 14pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
ISL84544IHZ-TIC SWITCH SPDT X 1 60OHM 6SOT |
7,030 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 60Ohm | 800mOhm | 2.7V ~ 12V | - | 100ns, 75ns | - | 1pC | 8pF, 8pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SOT |
|
|
TS5A3159MDBVREPIC SWITCH SPDTX1 1.1OHM SOT23-6 |
12,144 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1.1Ohm | 100mOhm | 1.65V ~ 5.5V | - | 35ns, 20ns | 100MHz | 36pC | 23pF | 4nA | -65dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
DG408DQ-T1-E3IC MUX 8:1 100OHM 16TSSOP |
13,672 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | 5V ~ 36V | ±5V ~ 20V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX20337AEFT+TIC SWITCH SPST-NOX1 330MOHM 6WLP |
2,780 |
|
Datasheet |
Beyond-the-Rails™ | Tape & Reel (TR) | Active | SPST - NO | 2:1 | 1 | 330mOhm | 3mOhm | 1.6V ~ 5.5V | - | 32.5ms, 8.8ms (Typ) | 220MHz | - | 19pF | 100nA | -55dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-FC2QFN (1.25x1.75) |
