Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

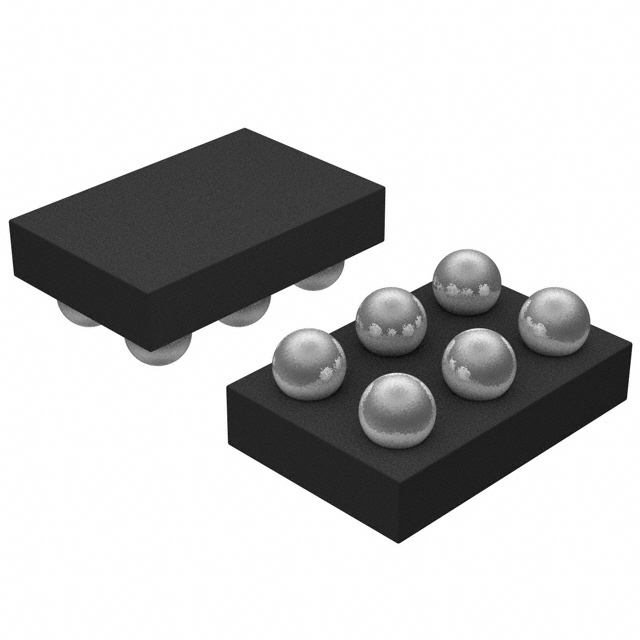

ADG819BCBZ-REEL7IC SWITCH SPDTX1 600MOHM 6WLCSP |
31,358 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 600mOhm | 60mOhm | 1.8V ~ 5.5V | - | 45ns, 16ns | 17MHz | 20pC | 80pF | 250pA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLCSP (1.14x2.18) |
|
DG408DVZ-TIC MUX 8:1 100OHM 16TSSOP |
12,202 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | 5V ~ 34V | ±5V ~ 20V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG201HSDQ-T1-E3IC SW SPST-NCX4 50OHM 16TSSOP |
1,088 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 50Ohm | 1.5Ohm | 13V ~ 36V | ±7V ~ 22V | 60ns, 50ns | - | -5pC | 5pF | 1nA | -100dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG819BRMZ-REEL7IC SWITCH SPDT X 1 600MOHM 8MSOP |
4,992 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 600mOhm | 60mOhm | 1.8V ~ 5.5V | - | 45ns, 16ns | 17MHz | 20pC | 80pF | 250pA | -72dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG722BRMZ-REEL7IC SWITCH SPST-NC X 2 4OHM 8MSOP |
2,352 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 4Ohm | 300mOhm | 1.8V ~ 5.5V | - | 14ns, 6ns (Typ) | 200MHz | 2pC | 7pF, 7pF | 250pA | -97dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG722BRMZIC SWITCH SPST-NC X 2 4OHM 8MSOP |
1,170 |
|
Datasheet |
- | Tube | Active | SPST - NC | 1:1 | 2 | 4Ohm | 300mOhm | 1.8V ~ 5.5V | - | 14ns, 6ns (Typ) | 200MHz | 2pC | 7pF, 7pF | 250pA | -97dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
MAX4582CEE+TIC SWITCH SP4T X 2 80OHM 16QSOP |
3,480 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 80Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 200ns, 100ns | - | 0.5pC | 4pF, 10pF | 1nA | -96dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-QSOP |
|
ADG1312YRUZ-REEL7IC SW SPST-NOX4 200OHM 16TSSOP |
2,030 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 200Ohm | 5Ohm | 12V | ±15V | 125ns, 50ns | 600MHz | 2pC | 5pF, 5pF | 10nA | -90dB @ 1MHz | -40°C ~ 105°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG1311YRUZIC SW SPST-NCX4 200OHM 16TSSOP |
1,528 |
|
Datasheet |
- | Tube | Active | SPST - NC | 1:1 | 4 | 200Ohm | 5Ohm | 12V | ±15V | 125ns, 50ns | 600MHz | 2pC | 5pF, 5pF | 10nA | -90dB @ 1MHz | -40°C ~ 105°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
DG333ADW-T1-E3IC SWITCH SPDT X 4 45OHM 20SOIC |
9,312 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 45Ohm | 2Ohm (Max) | 5V ~ 40V | ±4V ~ 22V | 175ns, 145ns | - | 10pC | 8pF | 250pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-SOIC |
|
MAX4544CPA+IC SWITCH SPDT X 1 60OHM 8DIP |
580 |
|
Datasheet |
- | Tube | Active | SPDT | 2:1 | 1 | 60Ohm | 800mOhm | 2.7V ~ 12V | - | 100ns, 75ns | - | 1pC | 8pF, 8pF | 100pA | -90dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
ADG782BCPZIC SWITCH SPST-NOX4 4OHM 20LFCSP |
2,926 |
|
Datasheet |
- | Tray | Active | SPST - NO | 1:1 | 4 | 4Ohm | - | 1.8V ~ 5.5V | - | 11ns, 6ns (Typ) | 200MHz | 3pC | 10pF, 10pF | 100pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
|
ADG441BRZ-REELIC SWITCH SPST-NCX4 70OHM 16SOIC |
24,644 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 70Ohm | - | 12V | ±15V | 110ns, 60ns | - | 1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ADG441BRZIC SWITCH SPST-NCX4 70OHM 16SOIC |
2,664 |
|
Datasheet |
- | Tube | Active | SPST - NC | 1:1 | 4 | 70Ohm | - | 12V | ±15V | 110ns, 60ns | - | 1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4645EUT+TIC SWITCH SPST-NOX1 2.5OHM SOT6 |
13,096 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 2.5Ohm | 100mOhm | 1.8V ~ 5V | - | 15ns, 10ns | - | 5pC | 17pF, 17pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
TMUX6236PWR36V, LOW-RON, 2:1 (SPDT) TWO-CHA |
3,660 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT - Open/Closed | 2:1 | 2 | 3.1Ohm | 100mOhm | 4.5V ~ 36V | - | 130ns, 165ns | 35MHz | 78pC | 45pF, 60pF | 250pA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4641EUA+TIC SWITCH SPST-NO X 2 4OHM 8UMAX |
18,896 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 4Ohm | 200mOhm | 1.8V ~ 5.5V | - | 15ns, 8ns | - | 2pC | 7pF, 7pF | 250pA | -97dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
TMUX6211PWRIC SW SPST-NOX4 3.1OHM 16TSSOP |
8,084 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 3.1Ohm | 100mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 180ns, 200ns | 50MHz | 78pC | 28pF, 45pF | 1nA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
DG303BDY-E3IC SW DPST-NO/NCX2 50OHM 14SOIC |
580 |
|
Datasheet |
- | Tube | Active | DPST - NO/NC | 2:1 | 2 | 50Ohm | - | - | ±15V | 300ns, 250ns | - | 8pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
TMUX6111RTERIC SWITCH SPST X 4 160OHM 16WQFN |
4,098 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 160Ohm | 2.5Ohm | 10V ~ 16.5V | ±5V ~ 16.5V | 78ns, 68ns | 800MHz | 0.6pC | 2.5pF, 2.4pF | 20pA | -100dB ~ -115dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (3x3) |
