Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALVC1G66VSE-EIC UNI-LOGIC GATE BUFFER SMD |
4,174 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MAX20337ENT+IC SWITCH DPST-NOX1 330MOHM 6WLP |
3,360 |
|
Datasheet |
- | Strip | Active | DPST - NO | 2:1 | 1 | 330mOhm | 3mOhm | 1.6V ~ 5.5V | - | 32.5ms, 8.8ms (Typ) | 220MHz | - | 19pF | 100nA | -55dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLP (1.31x0.83) |
|
UM4684EEUEIC SWITCH SPDTX2 800MOHM 10MSOP |
2,282 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 800mOhm | 500mOhm (Max) | 1.8V ~ 5.5V | - | 82ns, 73ns | 20MHz | 21pC | 10pF | 2nA | -69dB @ 100kHz | -40°C ~ 85°C | - | - | Surface Mount | 10-MSOP |
|
HV2815/AJAIC SWITCH SPSTX32 6OHM 121TFBGA |
7,328 |
|
- |
- | Tray | Active | SPST | 1:1 | 32 | 6Ohm (Typ) | - | 5V | - | - | 50MHz | - | - | - | - | - | - | - | Surface Mount | 121-TFBGA (10x10) |
|
|
HV2915/AJAIC SWITCH SPSTX32 6OHM 121TFBGA |
3,792 |
|
- |
- | Tray | Active | SPST | 1:1 | 32 | 6Ohm (Typ) | - | 5V | - | - | 50MHz | - | - | - | - | - | - | - | Surface Mount | 121-TFBGA (10x10) |
|
|
HV2916/AJAIC SWITCH SPSTX32 6OHM 121TFBGA |
2,980 |
|
- |
- | Tray | Active | SPST | 1:1 | 32 | 6Ohm (Typ) | - | 5V | - | - | 50MHz | - | - | - | - | - | - | - | Surface Mount | 121-TFBGA (10x10) |
|
74HC2G66DP-Q100/AHIC SWITCH SPST-NOX2 70OHM 8TSSOP |
9,530 |
|
Datasheet |
74HC | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 70Ohm | 3Ohm | 2V ~ 10V | - | 20ns, 27ns | 200MHz | - | - | 1µA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-TSSOP |
|
|
AS1743H-T-ZIC SW SPST-NO/NC 800MOHM SOT23 |
4,704 |
|
- |
- | Bulk | Obsolete | SPST - NO/NC | 1:1 | 2 | 800mOhm | 20mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | 130MHz | 5pC | 35pF, 35pF | 1nA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
|
AS1753S-T-ZIC SW SPST-NO/NC 900MOHM 14TSSOP |
8,938 |
|
- |
- | Bulk | Obsolete | SPST - NO/NC | 1:1 | 4 | 900mOhm | 30mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | - | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
AS1741H-T-ZIC SW SPST-NOX2 800MOHM SOT23-8 |
4,572 |
|
- |
- | Bulk | Obsolete | SPST - NO | 1:1 | 2 | 800mOhm | 20mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | 130MHz | 5pC | 35pF, 35pF | 1nA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
|
AS1751S-T-ZIC SW SPST-NOX4 900MOHM 14TSSOP |
2,050 |
|
- |
- | Bulk | Obsolete | SPST - NO | 1:1 | 4 | 900mOhm | 30mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | - | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
AS1752S-T-ZIC SW SPST-NCX4 900MOHM 14TSSOP |
2,530 |
|
- |
- | Bulk | Obsolete | SPST - NC | 1:1 | 4 | 900mOhm | 30mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | - | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
SCCNLVHC4851ADTR2GLDO REGULATOR, ULTRA-LOW NOISE, |
4,508 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SCE81E82HC4851ADTR2GANALOG MULTIPLEXER DEMULTIPLEXER |
4,950 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SLV4HC4053ADWRGLDO REGULATOR, ULTRA-LOW NOISE, |
9,228 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SC74HC4852ADTR2GIC REG LINEAR |
5,292 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MC74HCT4066ADR2HIC REG LINEAR |
4,780 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

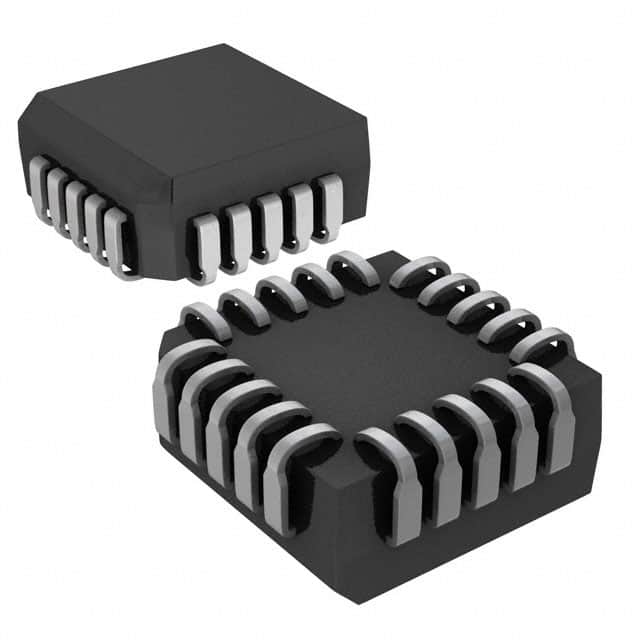

77053022AIC ANLG SW QUAD SPST 20CLCC |
6,018 |
|
- |
* | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ADG441ABCHIPSIC SWITCH SPST-NC X 4 70OHM DIE |
5,754 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NC | 1:1 | 4 | 70Ohm | 4Ohm | 12V | ±15V | 110ns, 60ns | - | 1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C | - | - | Surface Mount | Die |
|
|
ADG433BCHIPSIC SWITCH SPST-NO/NCX4 24OHM DIE |
8,718 |
|
Datasheet |
- | Bulk | Active | SPST - NO/NC | 1:1 | 4 | 24Ohm | 1.2Ohm | 12V | ±15V | 90ns, 60ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C | - | - | Surface Mount | Die |
